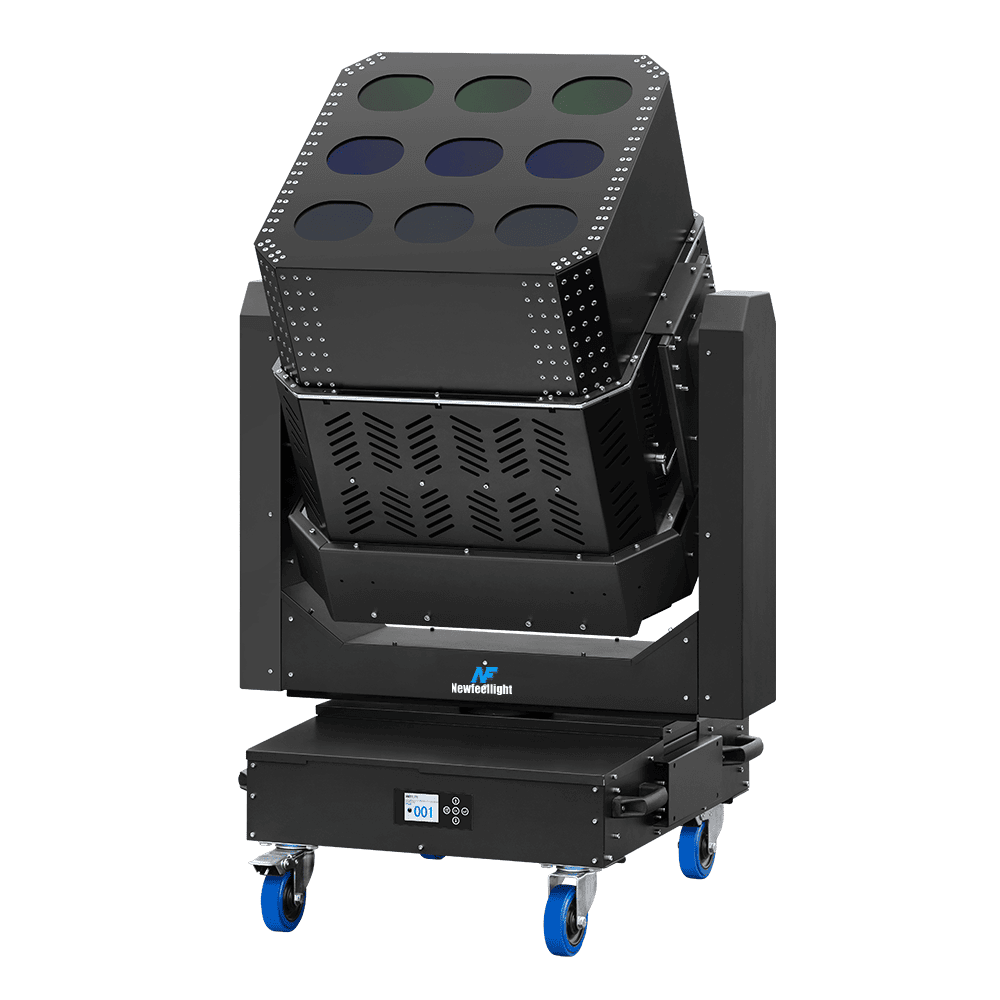

613B SKY LASER Outdoor Landmark Laser Light for City Projects

Model Number：613B SKY LASER
● Outdoor Sky Laser for Landmark Lighting Designed for sky lasers, landmark laser lighting, city skyline projects, scenic areas, remote sites, stadiums, and long-range visual guidance applications.
● 9-Beam Ultra-Thick Sky Laser Output Features 9 × 150mm ultra-thick beam outputs with a 400 × 400mm optical aperture, creating powerful sky beam effects for large outdoor landmark scenes.
● High-Power RGB Laser Source Uses an integrated semiconductor laser diode source with Red 144W, Green 235W, and Blue 234W laser output for vivid full-color sky laser effects.
● Long-Range Landmark Cruise Effect Creates up to 5KM parallel beam effects and significant 20KM landmark cruise visibility under suitable outdoor conditions, ideal for city landmarks and remote visual guidance.
● 540° / 260° Moving Head System Supports 540° X-axis movement and 260° Y-axis movement with 16-bit precision scanning, dual-axis locking, and automatic X/Y position correction.
● Warning Mode with RGB Strobe Effects Supports up to 25Hz strobe, random strobe, and pulse strobe effects, forming visible long-range warning-style beams and sky guidance signals.
● IP65 Outdoor Engineering Structure Built with IP65 waterproof protection, die-cast aluminum alloy housing, copper pipe + air cooling, lightning protection, overcurrent protection, overvoltage protection, leakage protection, moisture protection, and optical-electric isolation for harsh outdoor environments.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
sky laser landmark light
watch video
Outdoor Sky Laser for Landmark Lighting
The 613B SKY LASER is designed for outdoor landmark laser lighting, city skyline projects, scenic areas, remote sites, support stations, stadiums, and large outdoor visual guidance scenes.
It projects powerful sky laser beams that can help create long-distance landmark visibility and attraction.
9-Beam Sky Laser Output with 400×400mm Aperture
With a 400×400mm optical output and 9 ultra-thick 150mm beam outputs, this fixture creates a strong sky beam presence for long-range outdoor lighting.
It is suitable for landmark cruising effects, sky guidance, and large-area outdoor beam displays.
sky lasers
High-Power RGB Laser Source
The fixture uses an integrated semiconductor laser diode source with RGB laser color mixing, including 144W red, 235W green, and 234W blue laser output. It delivers vivid full-color sky laser effects with stronger color performance than traditional white searchlights.
Long-Range Sky Beam and Landmark Cruise Effects
The 613B SKY LASER can create up to 5KM parallel beam effects and significant 20KM landmark cruising effects under suitable outdoor conditions. It is ideal for city landmarks, desert camps, scenic destinations, support stations, and remote visual guidance points.
Architecture and Sky Lasers
Outdoor Sky Laser for Landmark Lighting
The 613B SKY LASER is designed for outdoor landmark laser lighting, city skyline projects, scenic areas, remote sites, support stations, stadiums, and large outdoor visual guidance scenes.
It projects powerful sky laser beams that can help create long-distance landmark visibility and attraction.
9-Beam Sky Laser Output with 400×400mm Aperture
With a 400×400mm optical output and 9 ultra-thick 150mm beam outputs, this fixture creates a strong sky beam presence for long-range outdoor lighting. It is suitable for landmark cruising effects, sky guidance, and large-area outdoor beam displays.
High-Power RGB Laser Source
The fixture uses an integrated semiconductor laser diode source with RGB laser color mixing, including 144W red, 235W green, and 234W blue laser output. It delivers vivid full-color sky laser effects with stronger color performance than traditional white searchlights.
Long-Range Sky Beam and Landmark Cruise Effects
The 613B SKY LASER can create up to 5KM parallel beam effects and significant 20KM landmark cruising effects under suitable outdoor conditions. It is ideal for city landmarks, desert camps, scenic destinations, support stations, and remote visual guidance points.

540° / 260° Moving Head System
The fixture adopts a customized rotating moving head system with 540° X-axis movement and 260° Y-axis movement. With 16-bit precision scanning, X/Y auto correction, and dual-axis locking, it provides accurate sky beam positioning for programmed outdoor lighting effects.
city landmark lighting
Event Lighting
540° / 260° Moving Head System
The fixture adopts a customized rotating moving head system with 540° X-axis movement and 260° Y-axis movement. With 16-bit precision scanning, X/Y auto correction, and dual-axis locking, it provides accurate sky beam positioning for programmed outdoor lighting effects.
outdoor sky laser
architectural laser
Warning Mode and Smooth Dimming Control
The fixture supports 0–100% smooth linear dimming and up to 25Hz strobe, with random strobe and pulse strobe options. Combined with RGB laser beams, it can create long-distance warning-style visual effects, attraction beams, and sky guidance signals.
IP65 Outdoor Structure for Harsh Environments
Built with an IP65 waterproof rating, die-cast aluminum alloy housing, copper pipe + air cooling system, and multiple protection systems, the 613B SKY LASER is suitable for long-term outdoor use in rainy areas, high-altitude regions, deserts, seaside projects, cold weather, and hot outdoor environments. It supports DMX512 + RDM control, remote address setting, and vertical or hanging installation.
landmark laser lighting


Specifications
Download Catalogue
Product Name
613B SKY LASER
Product Type
Outdoor Sky Laser / Landmark Laser Light
Laser Power
Red 144W / Green 235W / Blue 234W
Color System
RGB Laser Color Mixing
Optical Output
400 × 400mm Beam Output
Beam Effect
9 × 150mm Ultra-Thick Sky Beams
Beam Distance
5KM Parallel Beam / 20KM Landmark Cruise Effect
Pan / Tilt
540° Pan / 260° Tilt
Scanning Precision
16-bit Precision Scanning
Dimming
0–100% Smooth Linear Dimming
Strobe
Up to 25Hz, Random or Pulse Strobe
Control
DMX512 with RDM Function
DMX Channels
5CH
Protection Rating
IP65 Waterproof
Cooling System
Copper Pipe + Air Cooling
Housing Material
Die-Cast Aluminum Alloy
Power Supply
AC100–240V, 50/60Hz
Power Consumption
2400W
Working Temperature
-20°C to 45°C

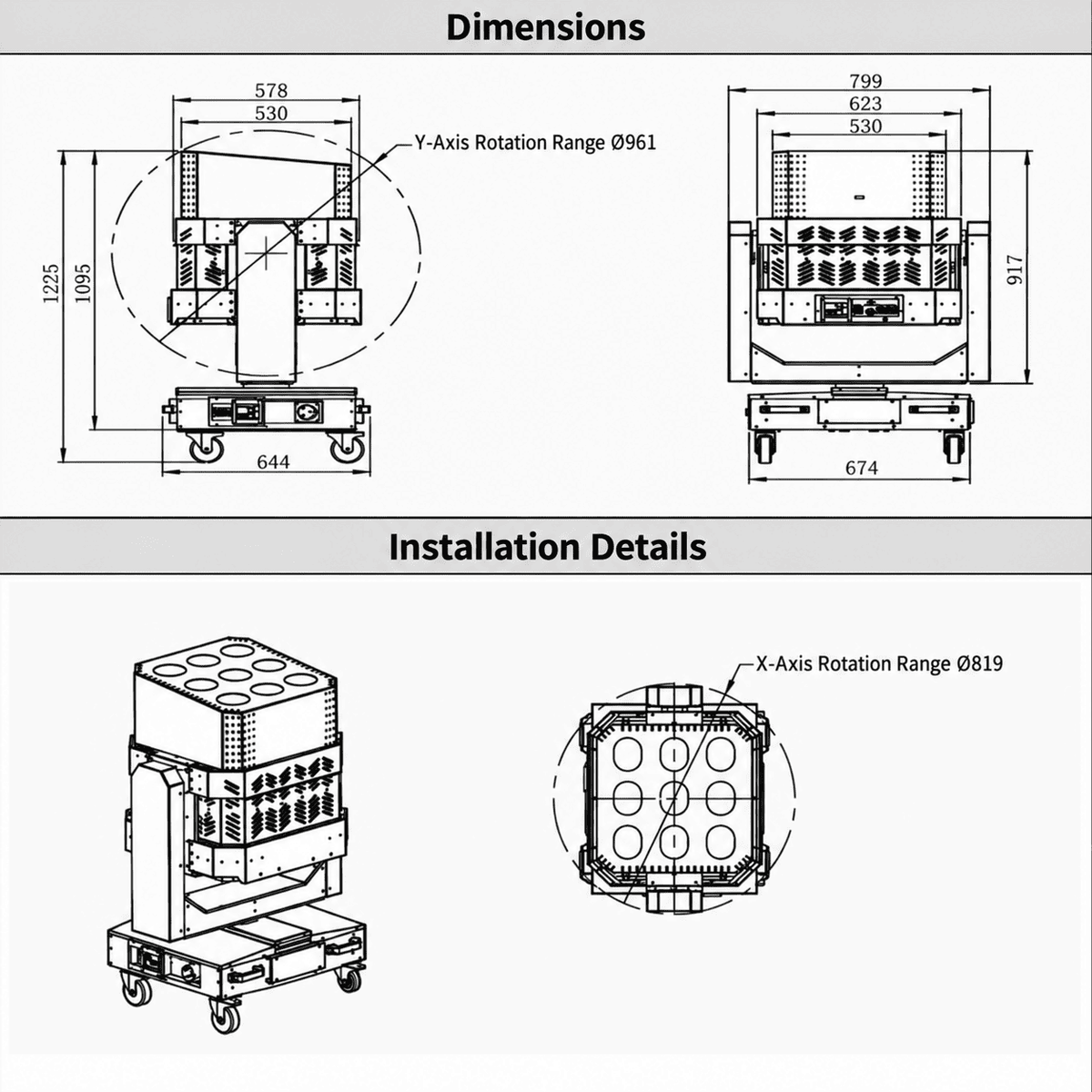

Fixture Size
799 × 674 × 1225mm
Net Weight
68.5kg
Applications
Landmark Laser Lighting, Sky Lasers, City Projects, Scenic Areas, Remote Site Guidance
Frequently Asked Question
Q1: What is the 613B SKY LASER mainly used for?
A:
The 613B SKY LASER is designed for sky lasers, landmark laser lighting, city skyline guidance, scenic areas, remote outdoor sites, large public projects, stadiums, and long-range visual attraction applications. ​
Q2: Is this a regular laser projector or party laser light?
Q3: Why is it suitable for landmark laser lighting?
A:
It produces powerful sky laser beams that can be seen from long distances, making it suitable for city landmarks, desert camps, support stations, scenic destinations, CBD areas, and other locations that need strong visual guidance or attraction. ​
Q4: What is the beam distance of the 613B SKY LASER?
A:
Under suitable outdoor conditions, it can create up to 5KM parallel beam effects and significant 20KM landmark cruise visibility. The actual visible distance depends on weather, air quality, installation height, viewing angle, and surrounding light conditions.​
Q5: What laser source does it use?
A:
It uses an integrated semiconductor laser diode source with RGB laser color mixing, including 144W red @ 638nm, 235W green @ 525nm, and 234W blue @ 450nm. This provides vivid full-color sky laser effects.​
Q6: How many beams does this fixture have?
A:
The fixture creates 9 ultra-thick 150mm beam outputs through a 400 × 400mm optical aperture, producing a stronger and more visible sky beam effect than standard single-beam outdoor lights. ​
Q7: Can the fixture move like a moving head light?
A:
Yes. The 613B SKY LASER supports 540° X-axis movement and 260° Y-axis movement, with 16-bit precision scanning, dual-axis locking, and automatic X/Y position correction for accurate beam positioning.
Q8: Does it support warning or guidance effects?
A:
Yes. With up to 25Hz strobe, random strobe, pulse strobe, RGB color beams, and long-range visibility, it can create warning-style visual effects, sky guidance beams, and attraction signals for remote or large outdoor locations.
Q9: Is it suitable for harsh outdoor environments?
A:
Yes. It features IP65 waterproof protection, die-cast aluminum alloy housing, copper pipe + air cooling, and multiple protection systems. It is suitable for rainy areas, high-altitude regions, deserts, seaside projects, cold weather, and hot outdoor environments.
Q10: What control system does it support?
A:
The fixture supports DMX512 control with RDM function, allowing remote address setting through large professional lighting controllers. It uses 5 DMX channels for simplified project control.
Q11: Can it be used for rescue station or remote site guidance?
A:
Yes, it can be used as a long-range visual guidance light for remote sites, desert camps, support stations, scenic areas, and temporary gathering points. However, it should be described as visual guidance lighting or sky beacon lighting, not as certified emergency rescue equipment unless the project has specific safety certification.
Q12: What type of customers is this product suitable for?
A:
It is suitable for lighting contractors, government lighting projects, scenic area operators, cultural tourism projects, stadium lighting projects, outdoor event companies, city landmark projects, and distributors focusing on high-power outdoor sky lasers.
sky laser landmark light
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
