NF-SL-LASER 1000RGB Outdoor Moving Head Searchlight for Landmark Lighting

Model Number：NF-SL-LASER 1000RGB
● Outdoor Moving Head Searchlight for Landmark Projects is designed for CBD building clusters, regional landmarks, stadiums, large outdoor stages, cultural tourism lighting, and government lighting projects that require long-range visual attraction.
● 200mm Large-Aperture RGB Beam Output creates powerful and concentrated beam effects with a large optical output diameter, making it suitable for ultra-long-distance landmark lighting and outdoor beam show applications.
● RGB Laser Color Mixing System delivers vivid red, green, blue, and mixed-color beam effects, helping create high-impact aerial beams, city skyline effects, and large-scale outdoor lighting scenes.
● 540° / 260° Precision Moving Head Scanning supports 540° horizontal movement and 260° vertical movement with 16-bit precision, allowing wide-area beam movement, crossing beams, and dynamic outdoor searchlight effects.
● 0.3°–1.5° Zoom with Prism Effects provides narrow long-range beam projection and rich beam combinations with 3-facet, 8-facet, and 16-facet prism effects for matrix-style landmark lighting.
● IP20 / IP65 Optional for Different Projects offers flexible versions for indoor stage applications or outdoor landmark lighting projects, with the IP65 option suitable for outdoor stages, stadiums, scenic areas, and city lighting installations.
● 1000W Engineering-Grade Power with RDM Control combines 1000W fixture power, efficient liquid-pipe cooling, 0–100% linear dimming, up to 25Hz strobe, and RDM function for stable professional lighting control.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
outdoor moving head searchlight
watch video
Outdoor Moving Head Searchlight for Landmark Lighting
The NF-SL-LASER 1000RGB is designed as an outdoor moving head searchlight for landmark lighting, CBD building clusters, city skyline projects, stadiums, large outdoor stages, and government lighting projects.
It creates powerful long-range RGB beam effects for high-impact outdoor visibility.
200mm Large-Aperture Beam Output
With a 200mm optical beam output, this fixture delivers a stronger and more concentrated beam presence than standard stage moving head lights, making it suitable for ultra-long-distance landmark beam effects and large-scale outdoor lighting scenes.
Outdoor Moving Head Searchlight
RGB Laser Color Mixing System
The fixture uses an integrated semiconductor laser diode light source with RGB laser color mixing, creating vivid red, green, blue, and mixed-color beam effects for city landmarks, outdoor shows, stadium events, and architectural lighting projects.
540° / 260° Moving Head Scanning
Featuring 540° horizontal scanning and 260° vertical scanning with 16-bit precision, the fixture can create wide-area beam movement, crossing beams, aerial effects, and dynamic landmark light shows. The automatic reset correction function helps maintain stable positioning during operation.
High Power Searchlight
Outdoor Moving Head Searchlight for Landmark Lighting
The NF-SL-LASER 1000RGB is designed as an outdoor moving head searchlight for landmark lighting, CBD building clusters, city skyline projects, stadiums, large outdoor stages, and government lighting projects.
It creates powerful long-range RGB beam effects for high-impact outdoor visibility.
200mm Large-Aperture Beam Output
With a 200mm optical beam output, this fixture delivers a stronger and more concentrated beam presence than standard stage moving head lights, making it suitable for ultra-long-distance landmark beam effects and large-scale outdoor lighting scenes.
RGB Laser Color Mixing System
The fixture uses an integrated semiconductor laser diode light source with RGB laser color mixing, creating vivid red, green, blue, and mixed-color beam effects for city landmarks, outdoor shows, stadium events, and architectural lighting projects.
540° / 260° Moving Head Scanning
Featuring 540° horizontal scanning and 260° vertical scanning with 16-bit precision, the fixture can create wide-area beam movement, crossing beams, aerial effects, and dynamic landmark light shows. The automatic reset correction function helps maintain stable positioning during operation.

0.3°–1.5° Zoom with Prism Beam Effects
The 0.3°–1.5° zoom range creates narrow, sharp, and long-distance beam effects. Combined with 3-facet, 8-facet, and 16-facet prism effects, it can produce stronger matrix beam layers for outdoor landmarks, stadiums, and large performance venues.
Moving Head Searchlight
Event Lighting
0.3°–1.5° Zoom with Prism Beam Effects
The 0.3°–1.5° zoom range creates narrow, sharp, and long-distance beam effects. Combined with 3-facet, 8-facet, and 16-facet prism effects, it can produce stronger matrix beam layers for outdoor landmarks, stadiums, and large performance venues.
Landmark Searchlight
High Power Searchlight
IP20 / IP65 Optional for Indoor & Outdoor Projects
The fixture is available with IP20 or IP65 protection options, allowing different configurations for indoor stage use or outdoor landmark lighting projects. The IP65 version is more suitable for outdoor stages, stadiums, scenic areas, and city lighting installations.
1000W Engineering-Grade Power with RDM Control
With 1000W total fixture power, advanced liquid-pipe cooling, 0–100% linear dimming, up to 25Hz strobe, 19-channel control, and RDM function, this fixture is built for professional outdoor lighting projects that require stable operation, powerful beam output, and precise control.
Outdoor Beam Searchlight


Specifications
Download Catalogue
Product Name
NF-SL-LASER 1000RGB Outdoor Moving Head Searchlight
Product Type
Outdoor Moving Head RGB Laser Beam Searchlight
Light Source
Integrated Semiconductor Laser Diode Source
Laser Power
Red 70W @ 638nm / Green 45W @ 525nm / Blue 115W @ 450nm
Color System
RGB Laser Color Mixing
Optical Output Diameter
200mm Beam Output
Pan / Tilt
540° Pan / 260° Tilt, 16-bit Precision Scanning
Zoom Range
0.3°–1.5°
Prism System
3-Facet + 8-Facet + 16-Facet Prism
Dimming
0–100% Linear Dimming
Strobe
Up to 25Hz, Random or Pulse Strobe
Cooling System
Advanced Liquid-Pipe Cooling
Protection Rating
IP20 / IP65 Optional
Control Channel
19 International Standard Channels
Control Function
RDM Function
Power Supply
AC200–240V, 50/60Hz
Total Power Consumption
1000W

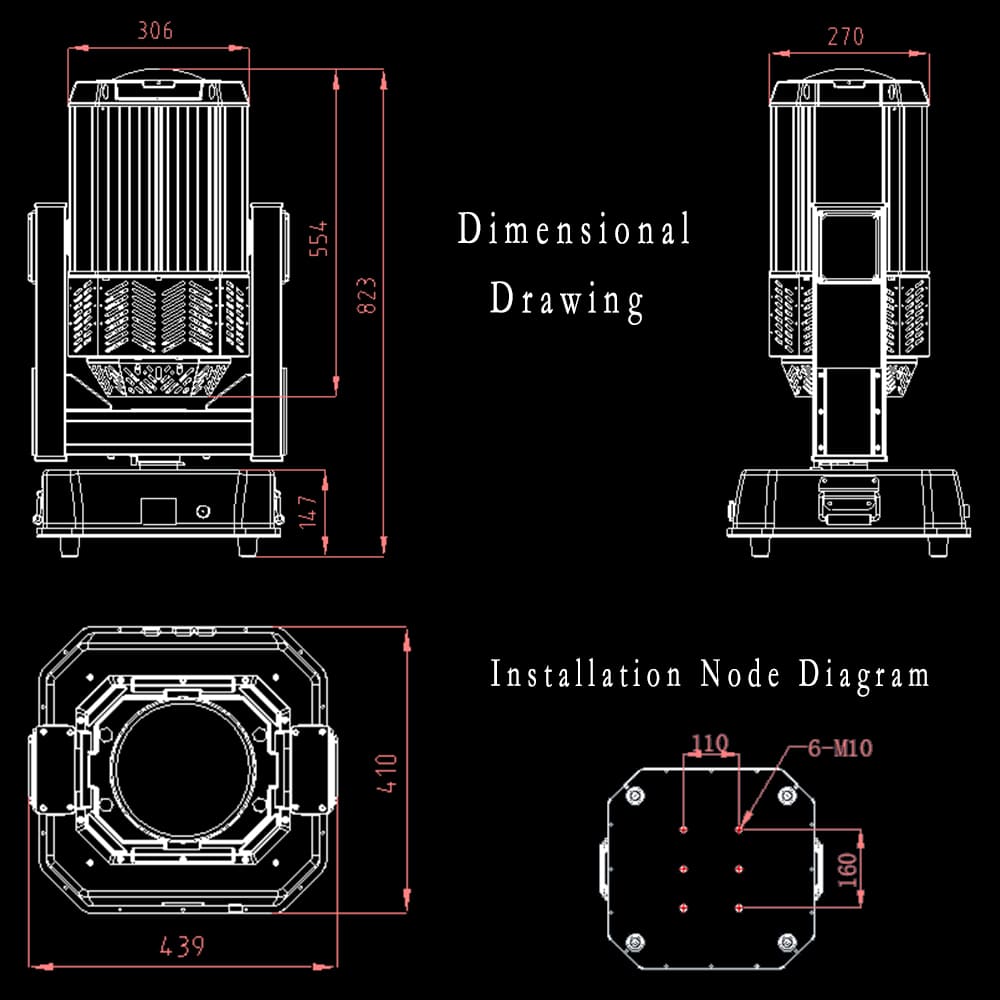

Product Size
50 × 32 × 85 cm
Net Weight
42kg
Console Size
485 × 400 × 105 mm
Applicable Scenarios
Suitable for long-range landmark applications—spanning distances of 2 to 5 km or more. Examples include waterfronts, telecommunications towers, historic city towers, CBD building clusters, regional landmarks, and ultra-long-range visual attraction installations.
Frequently Asked Question
Q1: What is the NF-SL-LASER 1000RGB mainly used for?
A:
The NF-SL-LASER 1000RGB is designed for outdoor landmark lighting, CBD building clusters, stadiums, large outdoor stages, city skyline beam shows, cultural tourism projects, and government lighting projects that require long-range visual attraction. ​
Q2: Is this product a normal moving head stage light?
Q3: What makes the beam effect different from regular beam lights?
A:
It uses an integrated semiconductor laser diode light source with RGB laser mixing, creating strong red, green, blue, and mixed-color aerial beam effects for long-distance landmark lighting and large venue applications. ​
Q4: Does it support moving head scanning?
A:
Yes. The fixture supports 540° horizontal scanning and 260° vertical scanning with 16-bit precision, allowing dynamic beam movement, crossing beams, aerial effects, and wide-area outdoor lighting shows.​
Q5: What optical effects does it support?
A:
It supports 0.3°–1.5° zoom, RGB laser color mixing, fog effect, 0–100% linear dimming, up to 25Hz strobe, and prism effects including 3-facet, 8-facet, and 16-facet prisms.​
Q6: Is there an outdoor version available?
A:
Yes. The fixture is available with IP20 or IP65 protection options. The IP65 version is recommended for outdoor landmark lighting, stadiums, large outdoor stages, scenic areas, and city lighting projects. ​
Q7: What control mode does it use?
A:
It uses 19 international standard channels and supports RDM function, making it suitable for professional lighting control systems used in outdoor stage and landmark lighting projects.
Q8: How is the heat dissipation system designed?
A:
The fixture uses an advanced liquid-pipe cooling system to support stable operation during high-power outdoor beam applications.
Q9: What power supply does it support?
A:
The product supports AC200–240V, 50/60Hz, with total fixture power of 1000W, making it suitable for professional engineering and large venue installations.
Q10: Can NewFeel provide OEM/ODM project support?
A:
Yes. NewFeel provides OEM/ODM support for stage lighting and outdoor lighting project customers, including product configuration, branding, project matching, and technical communication for distributors, contractors, and government engineering projects.
