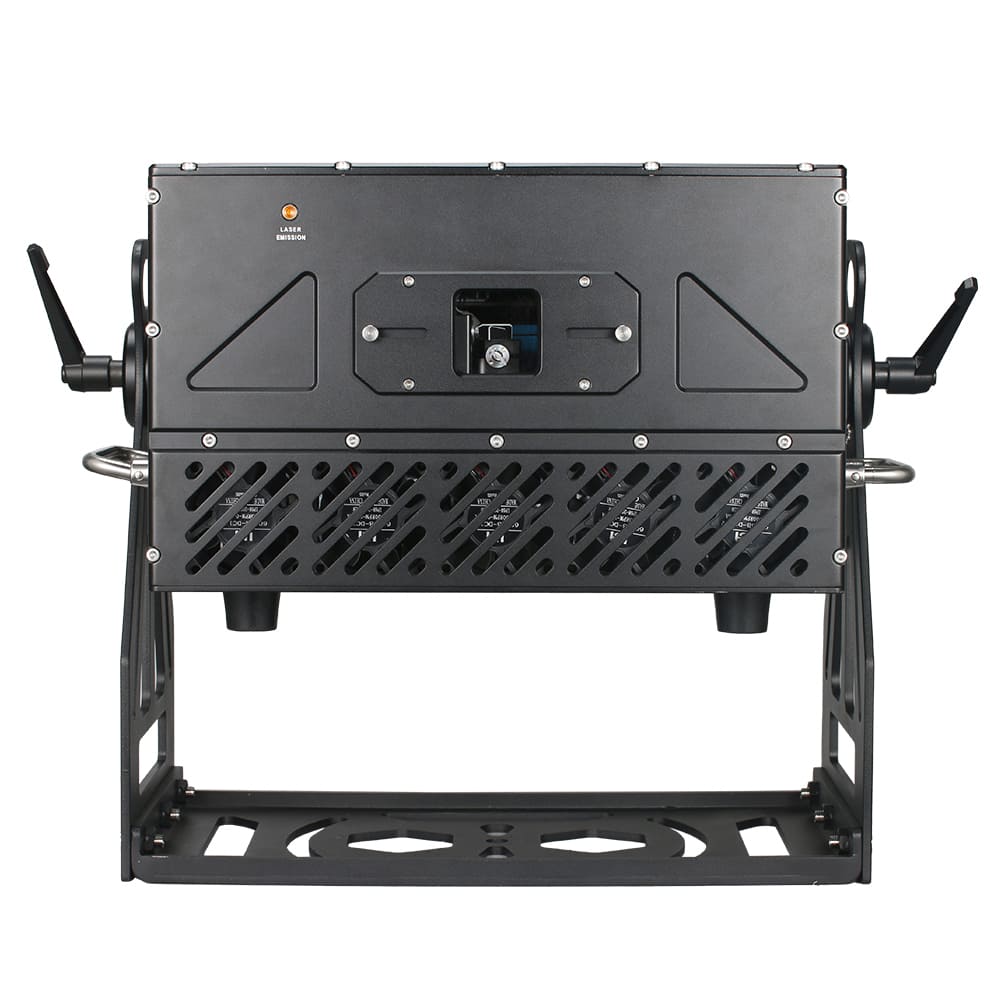

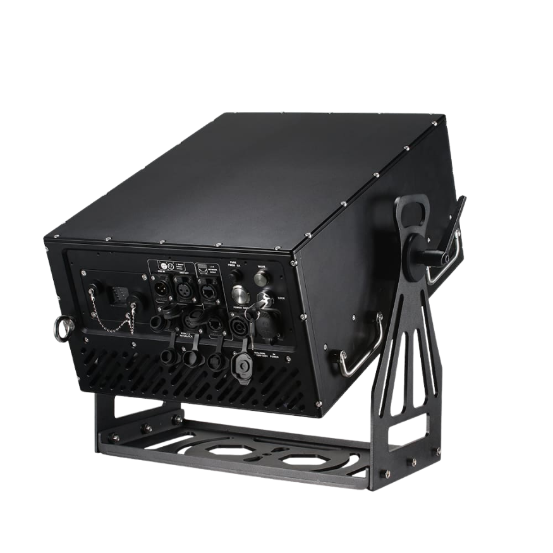

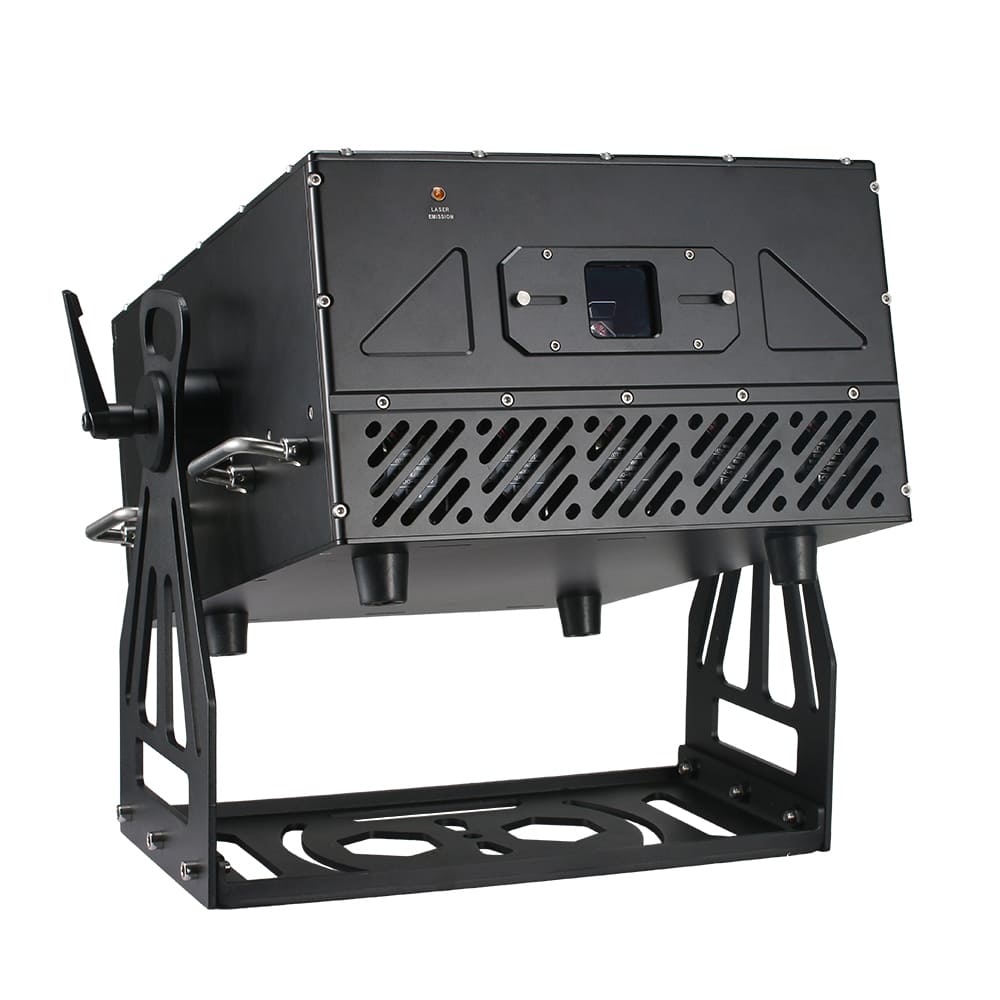

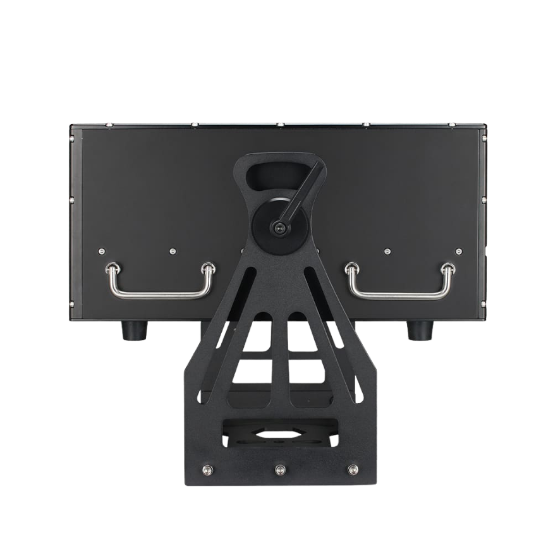

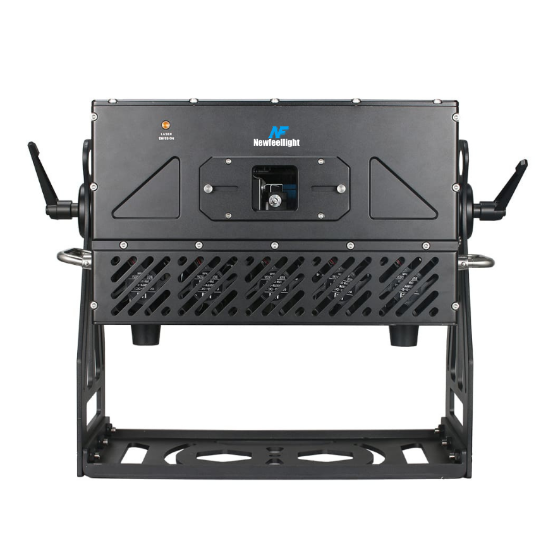

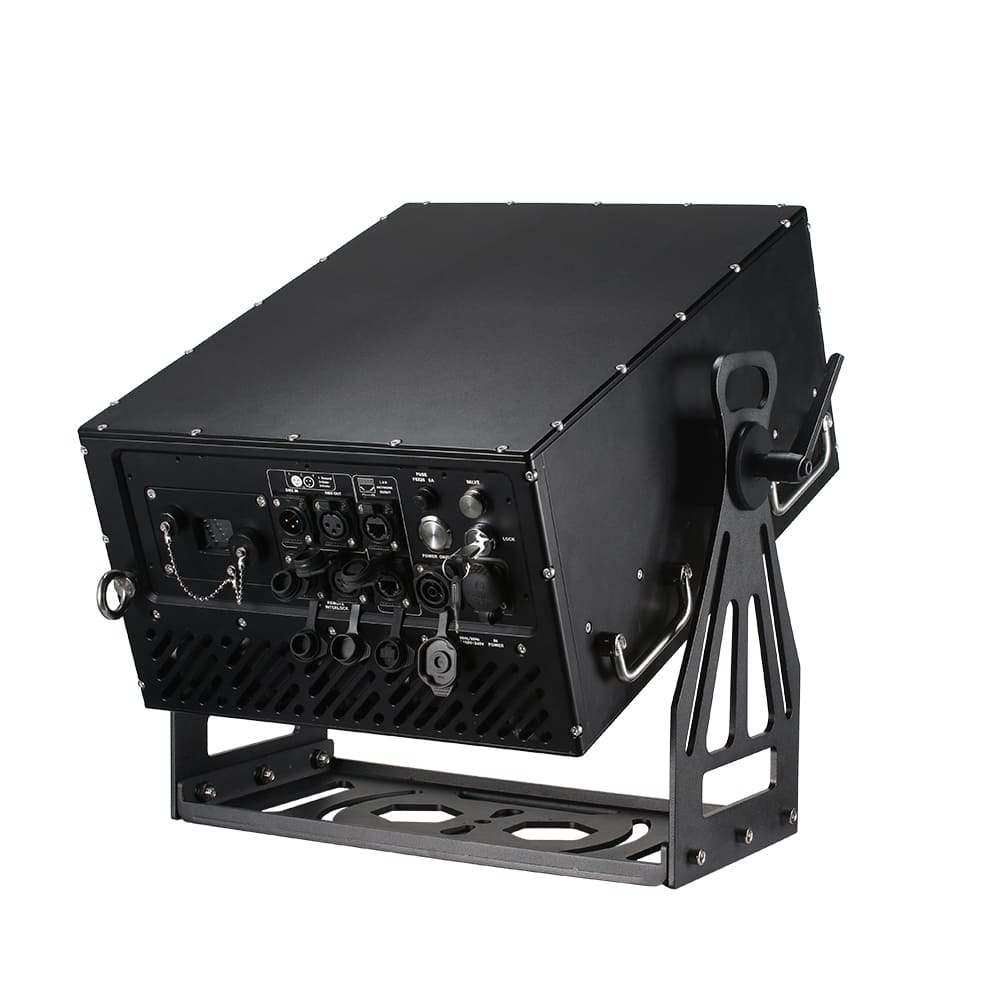

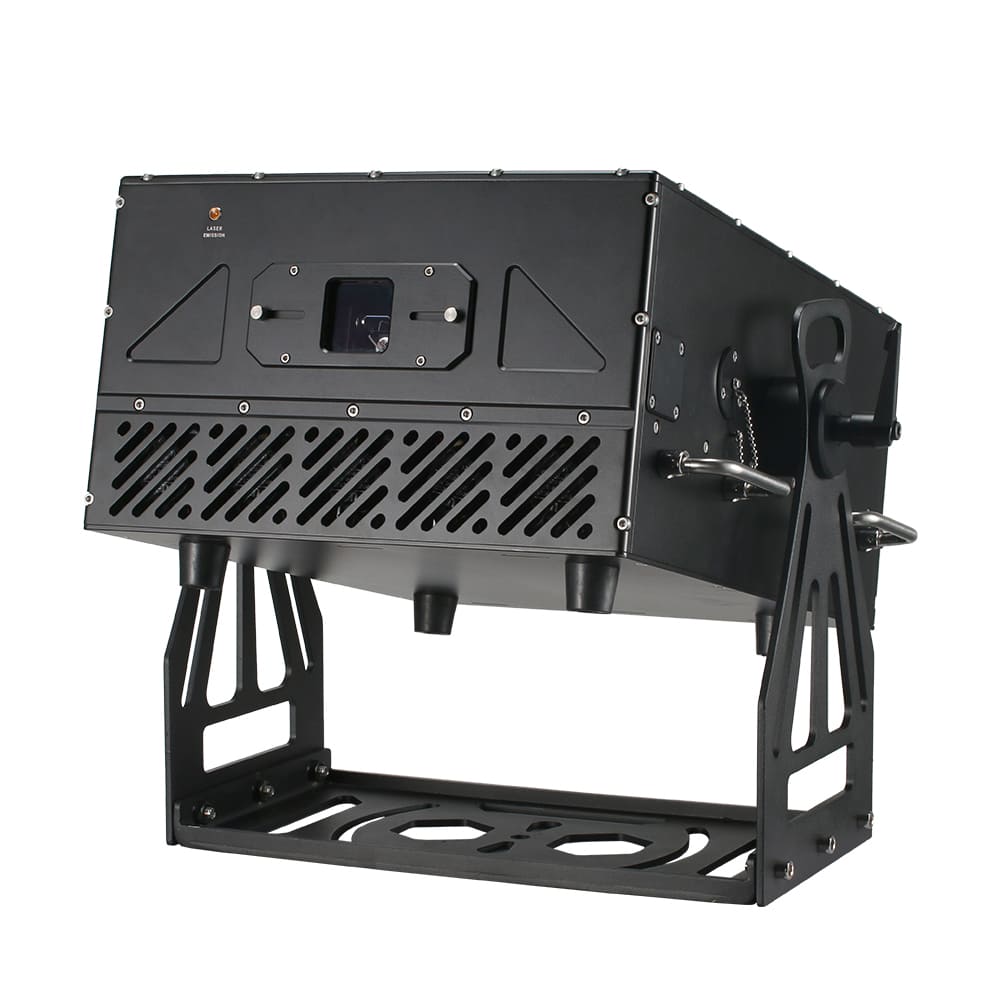

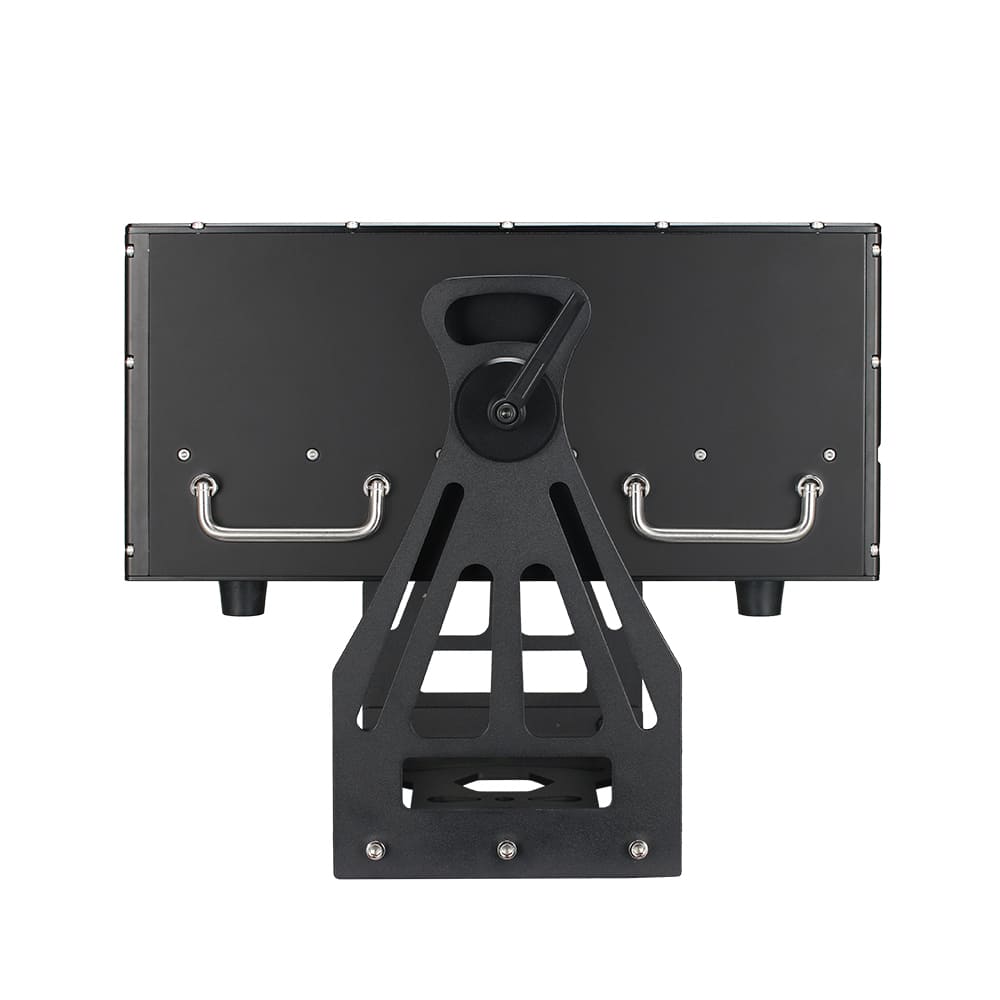

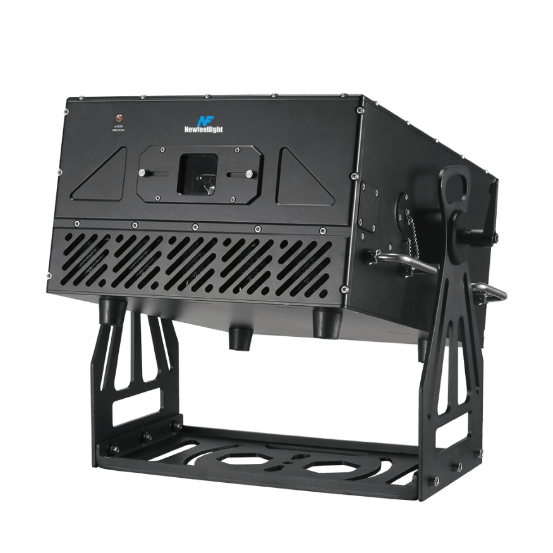

N6 30W RGB IP66 Outdoor Animation Laser Projector for Laser Shows & Architectural Lighting

Model Number：N6
● 30W RGB Animation Laser Projection delivers powerful and sharp laser effects with support for graphics, animations, logos, and complex laser show designs.
● Ultra-Sharp Beam & High-Speed Scanning features a 30–35KPPS galvanometer system with low beam divergence for precise long-distance projection.
● IP66 Outdoor Touring-Grade Housing uses an aviation-grade full die-cast aluminum structure for reliable operation in rain, dust, and harsh outdoor environments.
● Professional Laser Safety System includes laser key switch, laser lock, E-STOP interface, and beam protection functions for commercial laser show applications.
● ILDA, DMX512 & Network Control Compatibility allows integration with professional lighting and laser control systems for stage shows and architectural projects.
● Individual RGB Color & Brightness Control enables precise adjustment of each RGB channel for customized graphics, animations, and visual effects.
● OEM/ODM Laser Lighting Solutions provides customized laser projector solutions from a professional laser lighting manufacturer for global partners.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
N6 30W RGB Outdoor Laser Projector
watch video
30W RGB Professional Animation Laser Projection
Equipped with a 30W RGB semiconductor laser source, N6 delivers powerful and sharp laser beams for professional laser shows, architectural lighting, and large-scale outdoor projects.
It supports complex graphics, animations, logos, and custom laser effects.
Ultra-Sharp Beam & High-Speed Scanning System
Featuring a 30–35KPPS high-speed galvanometer scanning system, N6 produces clear graphics and precise laser beams with low divergence.
The sharp beam performance is ideal for long-distance projection and large outdoor installations.
outdoor laser light
IP66 Outdoor Touring-Grade Housing
Built with an aviation-grade full die-cast aluminum housing, N6 provides excellent durability for demanding outdoor environments.
The IP66 protection design ensures reliable operation in rain, dust, and harsh weather conditions.
Professional Laser Safety & FDA-Compliant Design
Designed with professional safety functions including laser key switch, laser lock, E-STOP emergency interface, and beam protection.
The safety system meets professional laser show requirements for commercial applications.
Outdoor Laser Projector
30W RGB Professional Animation Laser Projection
Equipped with a 30W RGB semiconductor laser source, N6 delivers powerful and sharp laser beams for professional laser shows, architectural lighting, and large-scale outdoor projects.
It supports complex graphics, animations, logos, and custom laser effects.
Ultra-Sharp Beam & High-Speed Scanning System
Featuring a 30–35KPPS high-speed galvanometer scanning system, N6 produces clear graphics and precise laser beams with low divergence.
The sharp beam performance is ideal for long-distance projection and large outdoor installations.
IP66 Outdoor Touring-Grade Housing
Built with an aviation-grade full die-cast aluminum housing, N6 provides excellent durability for demanding outdoor environments.
The IP66 protection design ensures reliable operation in rain, dust, and harsh weather conditions.
Professional Laser Safety & FDA-Compliant Design
Designed with professional safety functions including laser key switch, laser lock, E-STOP emergency interface, and beam protection.
The safety system meets professional laser show requirements for commercial applications.

Pangolin FB4 Optional & Professional Control System
N6 supports ILDA and DMX512 control as standard. An optional built-in original Pangolin FB4 system enables advanced network control, professional programming, and complex laser show management.
high powered laser
Event Lighting
Pangolin FB4 Optional & Professional Control System
N6 supports ILDA and DMX512 control as standard. An optional built-in original Pangolin FB4 system enables advanced network control, professional programming, and complex laser show management.
DJ Lighting
laser light show
Individual RGB Color & Brightness Adjustment
Provides 0–100% linear dimming with multiple dimming curves and adjustable strobe effects up to 30Hz for powerful stage visuals and lighting transitions.
Advanced Cooling & Reliable Long-Term Operation
Integrated ETC thermal management system improves heat dissipation and maintains stable performance during extended operation. The compact touring-grade structure makes N6 suitable for professional installations and mobile laser productions.
Pangolin FB4 Laser


Specifications
Download Catalogue
Laser Power
RGB 30W
Laser Source
Imported Semiconductor Solid-State Laser
Laser Wavelength
Red 636nm | Green 525nm | Blue 455nm
Modulation
Analog Modulation
Scanning System
30–35KPPS High-Speed Galvanometer
Beam Size
less than 5*8 mm
Beam Divergence
less than 1.2mrad
Color & Brightness Control
Linear RGB Color Adjustment & Individual Graphic Brightness Control
Optional Upgrade
Built-in Pangolin FB4 Control System
Control System
ILDA / DMX512 / Auto Run / Master-Slave
Laser Safety
Laser Switch/Laser Lock/E-STOP Emergency Interface Beam Protection Function
Protection
IP66 Waterproof
Structure
Aviation-Grade Full Die-Cast Aluminum Housing
Cooling System
ETC Intelligent Thermal Management System
Power Supply
AC110/220V, 50–60Hz
Power Consumption
500W
Applications
Laser Shows / Architectural Lighting / Landmark Lighting / Outdoor Events
Packing
Flight Case
Frequently Asked Question
Q1: What makes N6 different from standard outdoor laser projectors?
A:
N6 is a professional animation laser projector designed for laser shows, supporting complex graphics, animations, logos, and high-quality visual effects with 30W RGB laser output. ​
Q2: What applications is this 30W RGB laser projector suitable for?
Q3: Can N6 project custom graphics and animations?
A:
Yes. With high-speed scanning and professional control systems, N6 can project custom graphics, logos, text, and complex laser animations. ​
Q4: Does N6 support Pangolin FB4 control?
A:
Yes. N6 supports an optional built-in original Pangolin FB4 system for advanced programming, network control, and professional laser show management.​
Q5: What control systems are supported?
A:
N6 supports ILDA, DMX512, auto-run, and master-slave modes. It can integrate with professional laser software and lighting control systems.​
Q6: Is this outdoor laser projector suitable for permanent outdoor installation?
A:
Yes. With IP66 protection and a full die-cast aluminum housing, N6 is designed for outdoor environments including rain, dust, and demanding weather conditions. ​
Q7: Is N6 safe for professional laser show applications?
A:
Yes. It includes laser key switch, laser lock, E-STOP interface, and beam protection functions for professional laser safety requirements.
Q8: Can the RGB color brightness be adjusted individually?
A:
Yes. N6 supports independent RGB color and brightness adjustment, allowing precise control of different graphics, animations, and laser effects.
Q9: Do you provide warranty, technical support, and after-sales service?
A:
Yes. NewFeel provides warranty protection, online technical support, installation guidance, spare parts assistance, and after-sales service to ensure reliable long-term operation.
Q10: Do you provide OEM/ODM services?
A:
Yes. NewFeel is a professional laser lighting manufacturer providing OEM/ODM solutions for distributors, laser show companies, and project partners.
N6 30W RGB Outdoor Laser Projector
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
