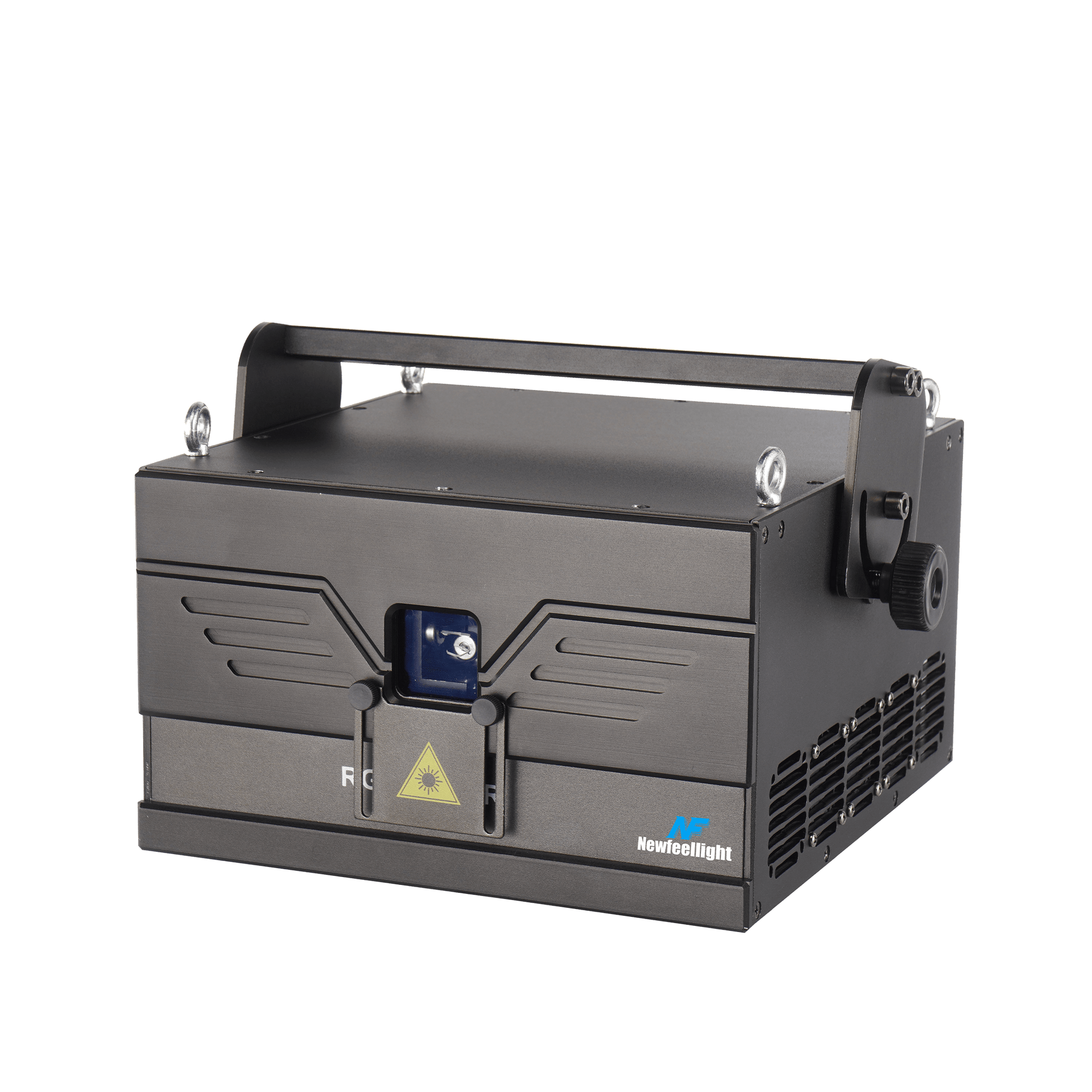

NF770 Professional 6-8W 30kpps High-Quality Equipment Concert Laser Lights
Model Number:NF770
5W/6W/8W/10W RGB laser lights, high brightness, and reasonable laser beam.
The laser lights has 200 preset patterns for you to choose from.
It can be projected green color and in various speeds.
Control system includes ILDA, DMX512, Sound, Automatic, Master-slave.
With sealing design, dustproof, maintenance-free, stable quality, small spot.
Request a Quote
New Feel Lighting
6-8W 30kpps Concert Lazer Lights
watch viedo
30K Professional Galvanometer
Using a 30K professional galvanometer, a professional casting machine upgraded by professional laser characters, the lines are more delicate and smooth, and the animation effect is more vivid.
Access Keyboard, Output Is Output
10 groups of 200 words can be stored. And can have 12 kinds of editing effects for each group of words.
Dual Layer Design Technology
This separates the optical components from the fan and power supply. This vastly increases performance and ensures you have a laser with longevity. Also, the laser comes with DMX control in 4 and 11 channel modes.
128 Preset Patterns
8 Degrees ILDA as well a 60-degree scan angle. In addition, the 128 preset patterns available mean you can always provide a unique laser performance.
Full-Color RGB Laser System

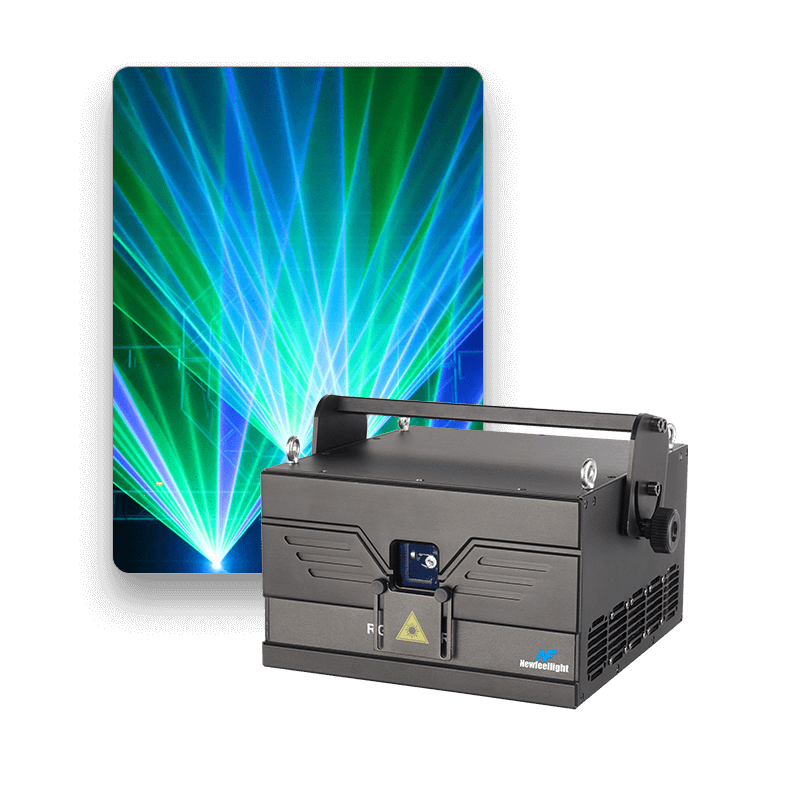

The Newfeel stage light equipment NF770 laser beam light is a full-color RGB laser system, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos, and text.
Bold Beams. Crisp Graphics. No Compromises
With ILDA-standard 30K graphics scanners the NF770 Professional laser beam lights can produce thick, vibrant aerial beams as well as sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.
Specifications
Download Catalogue
Power supply
AC90-240V,50-60Hz±10%
Rated power
max 200W
Laser power
RGB1-6W
Laser modulated signal
analog or TTL modulation
Type of laser
imported semiconductor solid-state laser
Beam diameter at the aperture
<6mm
Beam divergence
<1.3mrad
Laser wavelength
red 638±5nm, green 520±5nm, blue 450±5nm
Scanning system
20KPPS high speed scanning
Control mode
international standard ILDA control /DMX512 signal control /self-walk/voice control/master-slave

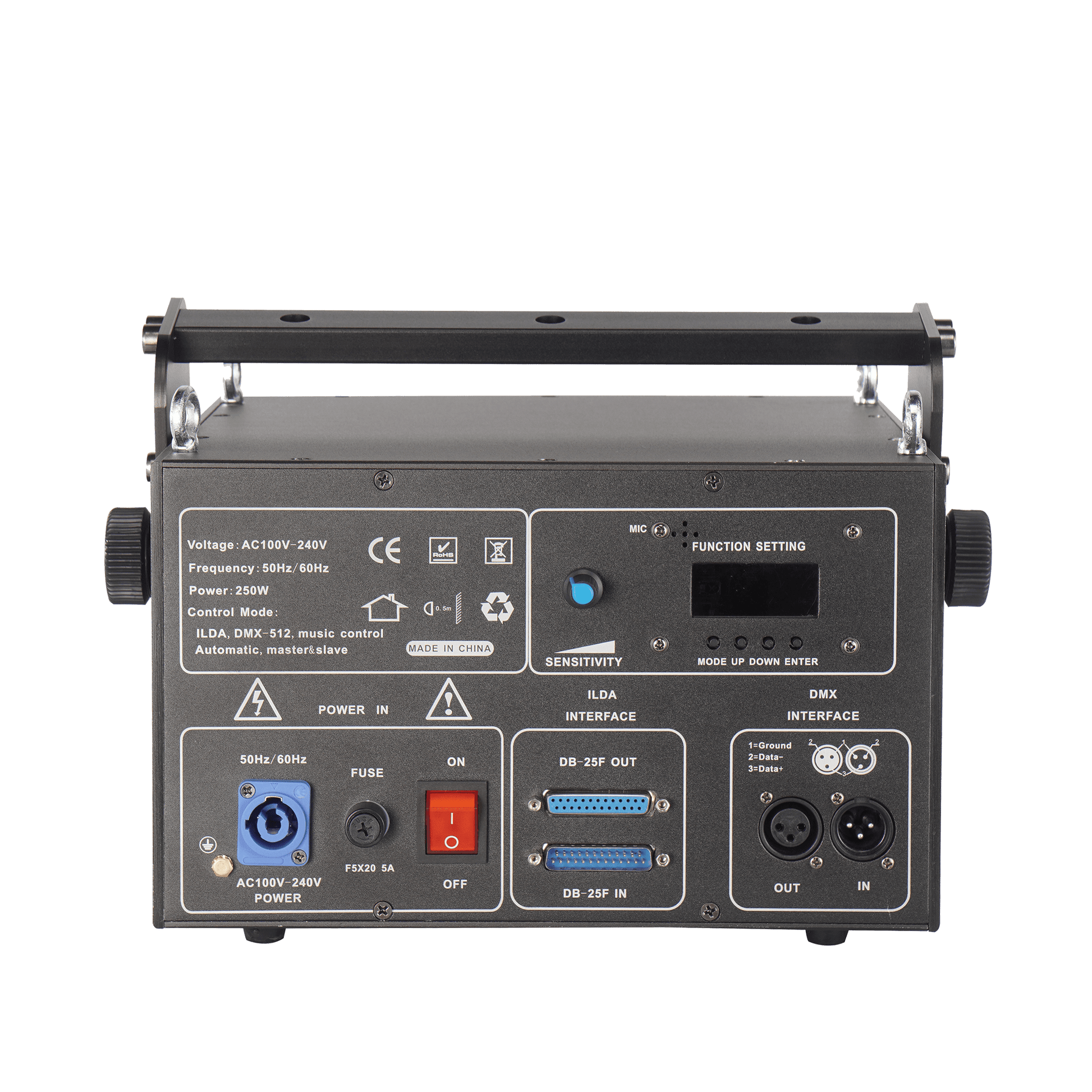

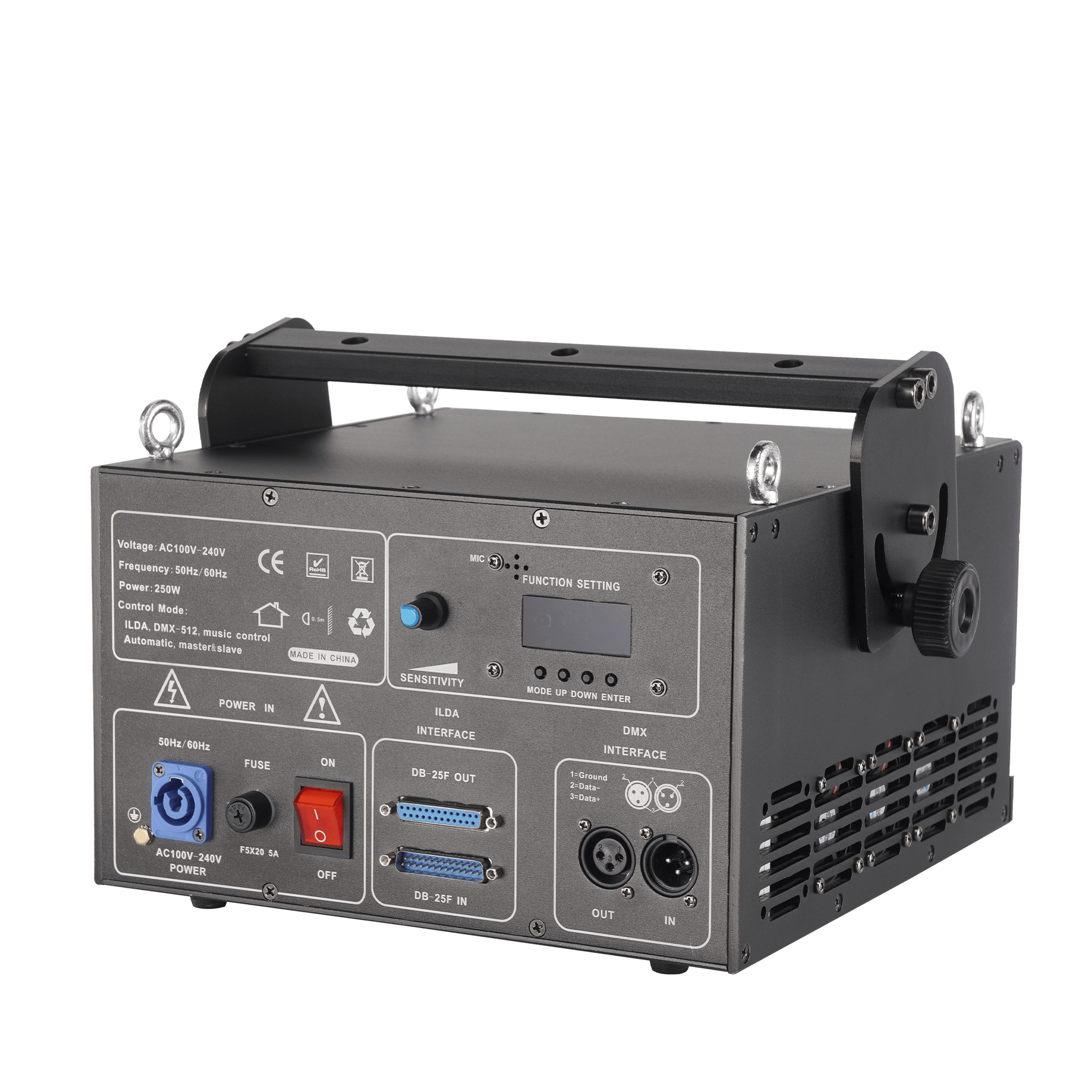

Control interface
international ILDA DB25 interface, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Control interface
international ILDA DB25 interface, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Safety function
one beam protection, no signal to close the light, etc
Frequently Asked Question
Q: Does NF770 laser projection light have a bracket to truss mount?
Q: Can NF770 lasers lights be mounted outside undercover?
Q: Do NF770 light show lasers have a cooling system?
Q: Hello I want to buy this, but I want an effect that looks like the galaxian sky effect. Does this produce this?
Newfeel animation laser effect
If you want to see more effects of this stage laser light, please check our YouTube video channel, or contact us directly.
