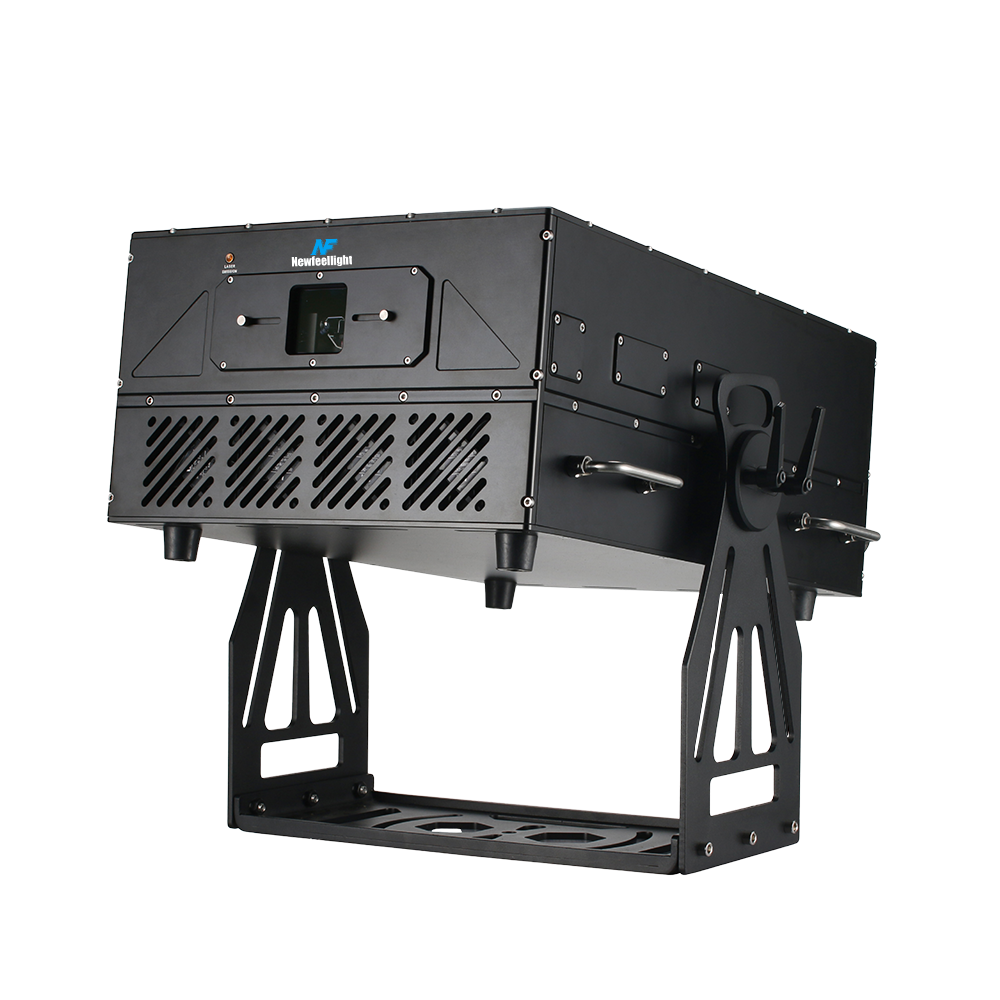

N7 50-80W RGB Outdoor Laser Projector
watch video
50W-80W RGB High-Power Laser Projection System
Available in 50W, 60W, and 80W RGB configurations, N7 delivers powerful laser output with sharp beams and vivid colors for professional outdoor laser shows, large events, and architectural lighting projects.
Ultra-Sharp Beam Quality for Long-Distance Projection
Equipped with advanced semiconductor laser modules, N7 produces powerful and precise beams with beam divergence below 1.2mrad.
The high-quality optical system ensures clear projection for landmarks, buildings, and large outdoor venues.
outdoor laser light
IP66 Outdoor Touring-Grade Protection
Built with an aviation-grade full die-cast aluminum housing, N7 provides excellent durability for permanent installations and touring applications.
The IP66 protection design allows stable operation in rain, dust, and demanding outdoor environments.
Professional Animation & Graphic Projection
N7 supports complex graphics, animations, logos, and custom laser content projection.
Linear RGB adjustment and individual graphic brightness control allow precise control of color intensity and visual effects.
Outdoor Laser Projector
50W-80W RGB High-Power Laser Projection System
Available in 50W, 60W, and 80W RGB configurations, N7 delivers powerful laser output with sharp beams and vivid colors for professional outdoor laser shows, large events, and architectural lighting projects.
Ultra-Sharp Beam Quality for Long-Distance Projection
Equipped with advanced semiconductor laser modules, N7 produces powerful and precise beams with beam divergence below 1.2mrad.
The high-quality optical system ensures clear projection for landmarks, buildings, and large outdoor venues.
IP66 Outdoor Touring-Grade Protection
Built with an aviation-grade full die-cast aluminum housing, N7 provides excellent durability for permanent installations and touring applications.
The IP66 protection design allows stable operation in rain, dust, and demanding outdoor environments.
Professional Animation & Graphic Projection
N7 supports complex graphics, animations, logos, and custom laser content projection.
Linear RGB adjustment and individual graphic brightness control allow precise control of color intensity and visual effects.

Pangolin FB4 Optional & Professional Control Compatibility
Supports ILDA and DMX512 control as standard. The optional built-in original Pangolin FB4 system enables advanced network control, professional programming, and complex laser show management.
high powered laser
Event Lighting
Pangolin FB4 Optional & Professional Control Compatibility
Supports ILDA and DMX512 control as standard. The optional built-in original Pangolin FB4 system enables advanced network control, professional programming, and complex laser show management.
DJ Lighting
laser light show
High-Speed Scanning & Reliable Performance
Featuring a 25KPPS high-speed scanning system, N7 delivers smooth animation effects and accurate graphic projection. The integrated thermal management system ensures stable operation during long-hour performances.
Professional Outdoor Applications
Designed for outdoor laser shows, architectural lighting, landmark buildings, cultural tourism projects, tunnel effects, building outlines, and large-scale entertainment productions.
Pangolin FB4 Laser


Specifications
Download Catalogue
Laser Power
RGB 50W / 60W / 80W Options
Laser Source
Imported Semiconductor Solid-State Laser
Laser Wavelength
Red 636nm | Green 525nm | Blue 455nm
Modulation
Analog Modulation
Scanning System
25KPPS High-Speed Scanner
Beam Size
less than 8*8 mm
Beam Divergence
less than 1.2mrad
Optional Upgrade
Built-in Pangolin FB4 Control System
Control System
ILDA / DMX512 / Auto Run / Master-Slave
Laser Safety
Laser Switch/Laser Lock/E-STOP Emergency Interface Beam Protection Function
Protection
IP66 Waterproof
Structure
Aviation-Grade Full Die-Cast Aluminum Housing
Cooling System
ETC Intelligent Thermal Management System
Power Supply
AC110/220V, 50–60Hz
Power Consumption
700W (50W) / 800W (60W) / 1000W (80W)
Applications
Laser Shows / Architectural Lighting / Landmark Lighting / Outdoor Events
Packing
Flight Case
Frequently Asked Question
Q1: What makes the N7 different from standard outdoor laser projectors?
A:
N7 is a high-power outdoor laser projector available in 50W, 60W, and 80W RGB versions. It is built for professional laser shows, laser mapping, architectural lighting, and large outdoor projects. ​
Q2: Can the N7 project graphics, logos, and animations?
Q3: Is the N7 suitable for outdoor laser mapping projects?
A:
Yes. With sharp beam output, low beam divergence, and high-power RGB laser performance, N7 is suitable for laser mapping, facade projection, landmark lighting, and outdoor architectural effects. ​
Q4: Does the N7 support Pangolin FB4 control?
A:
Yes. N7 can be configured with an optional built-in original Pangolin FB4 control system for network control, advanced programming, and professional laser show management.​
Q5: What control systems does the N7 support?
A:
N7 supports ILDA, DMX512, auto-run, and master-slave modes. It can work with Pangolin laser software and professional controllers such as Tiger, Pearl, and MA systems.​
Q6: Can users adjust RGB color and graphic brightness?
A:
Yes. N7 supports linear RGB color adjustment and individual graphic brightness control, allowing precise tuning of colors, patterns, animations, and laser effects. ​
Q7: Is the N7 safe for professional laser show use?
A:
Yes. It includes laser lock, key switch, E-STOP interface, beam protection, and no-signal blackout functions for safer professional operation.
Q8: Is the N7 reliable for outdoor installation?
A:
Yes. The IP66 waterproof housing, aviation-grade full die-cast aluminum structure, and ETC thermal management system support stable operation in outdoor environments.
Q9: What applications is the N7 best suited for?
A:
N7 is ideal for outdoor laser shows, laser mapping, architectural lighting, landmark buildings, tunnel effects, building outlines, cultural tourism projects, concerts, and large-scale events.
Q10: Do you provide OEM/ODM services?
A:
Yes. NewFeel is a professional laser lighting manufacturer providing OEM/ODM solutions for distributors, laser show companies, and project partners.
N7 50-80W RGB Outdoor Laser Projector
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
