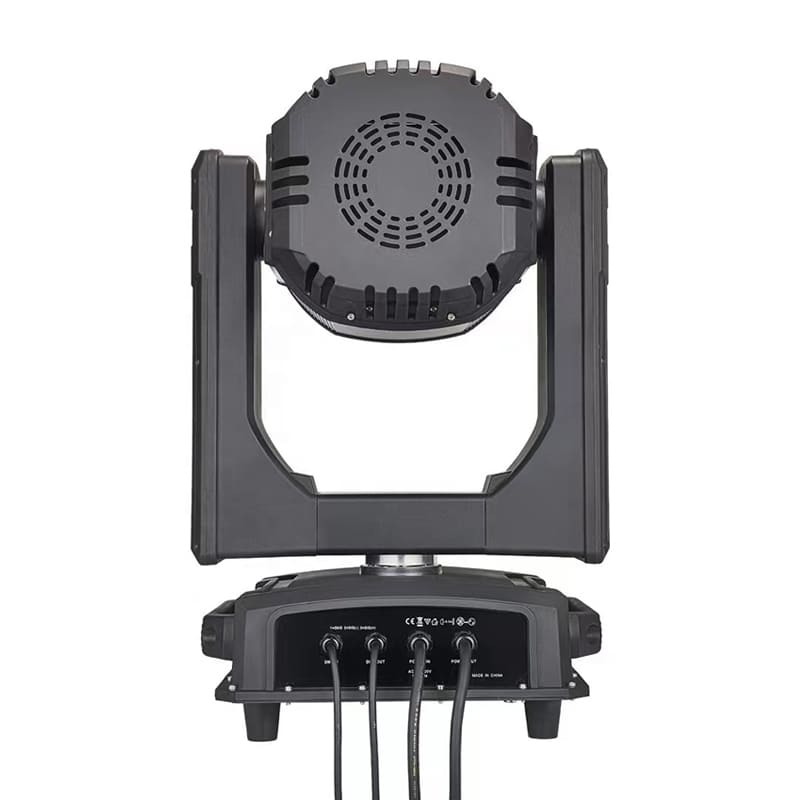

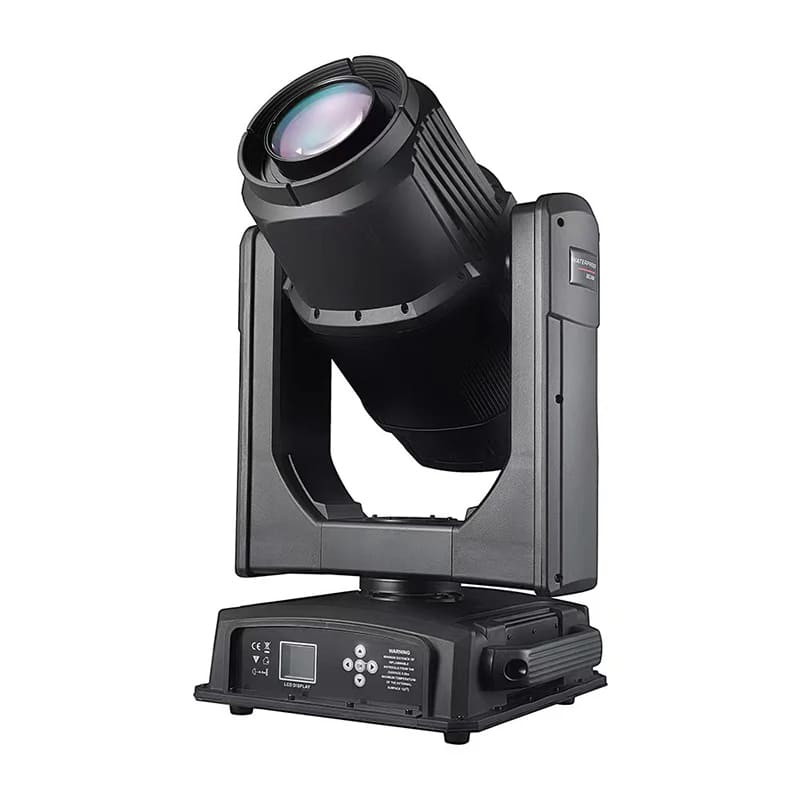

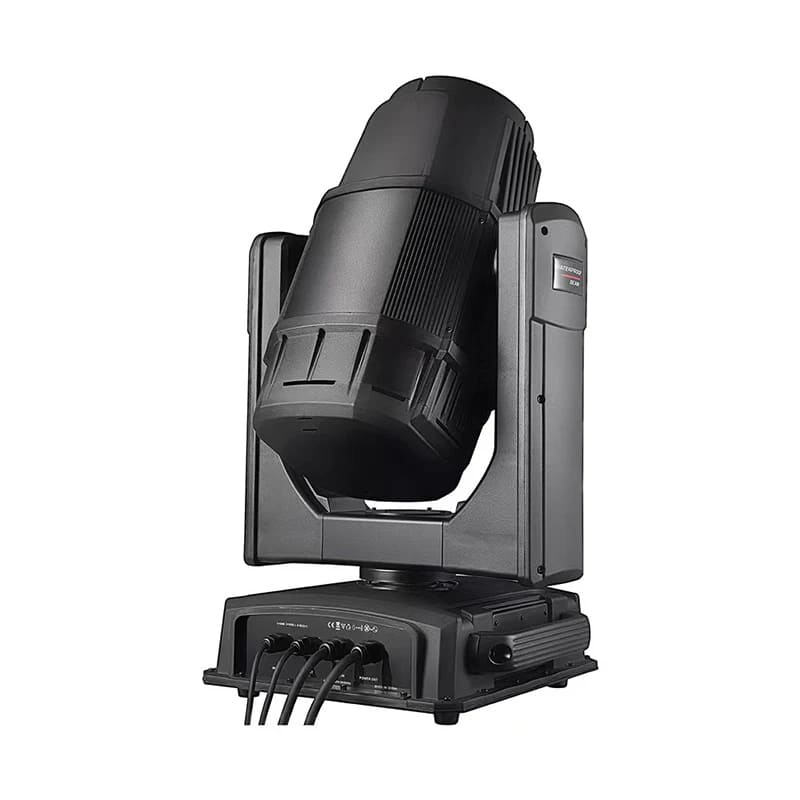

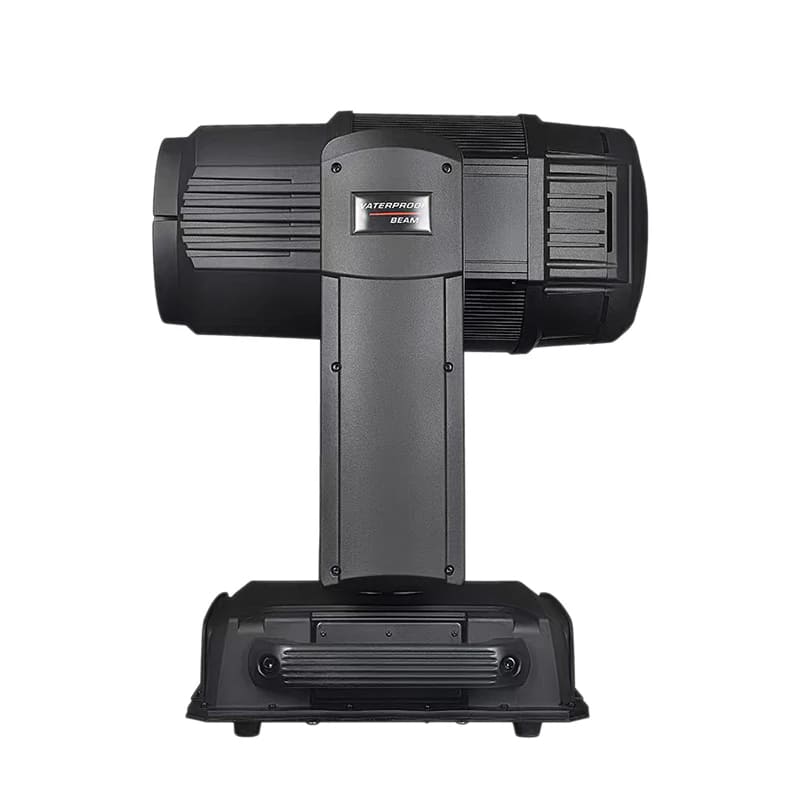

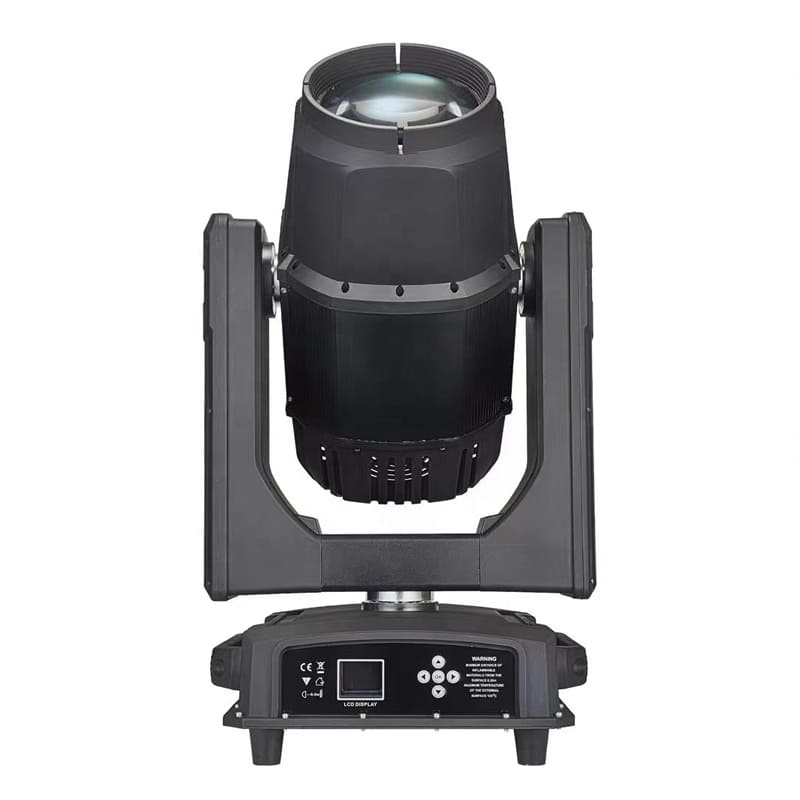

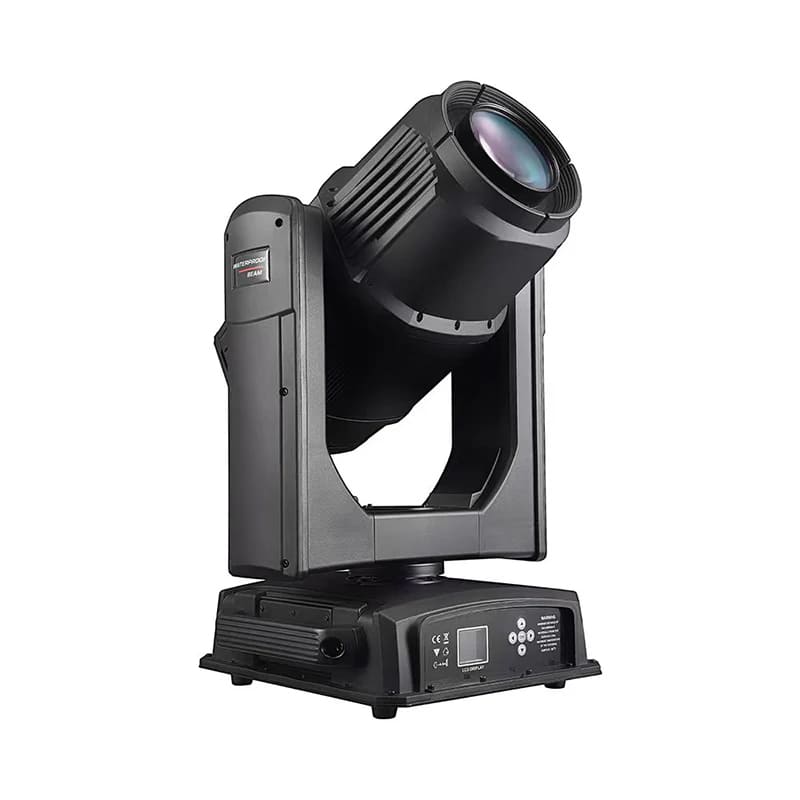

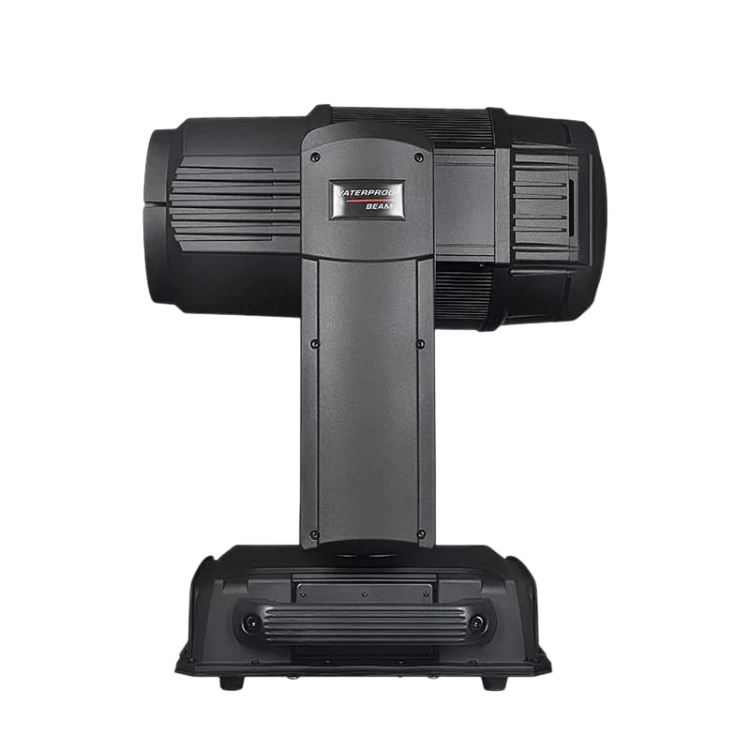

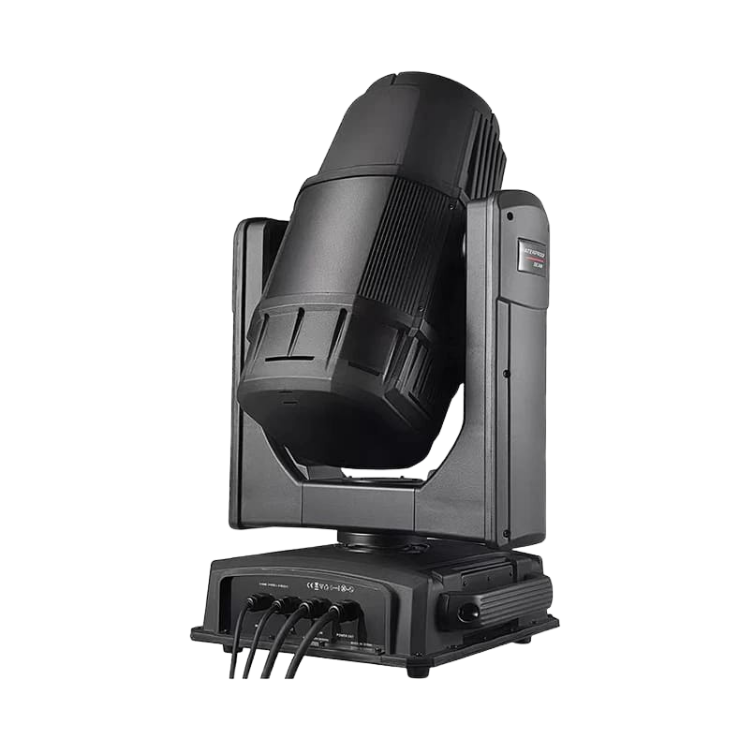

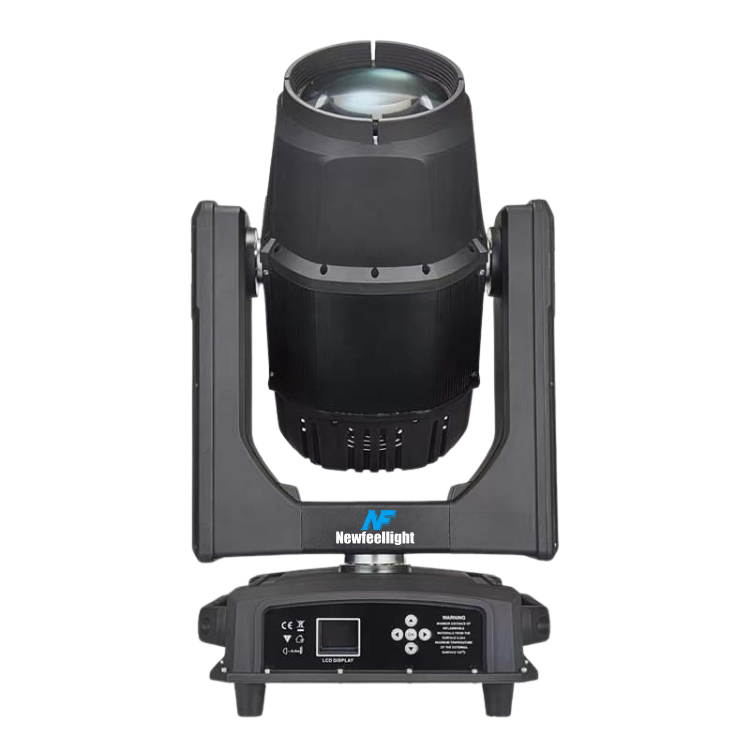

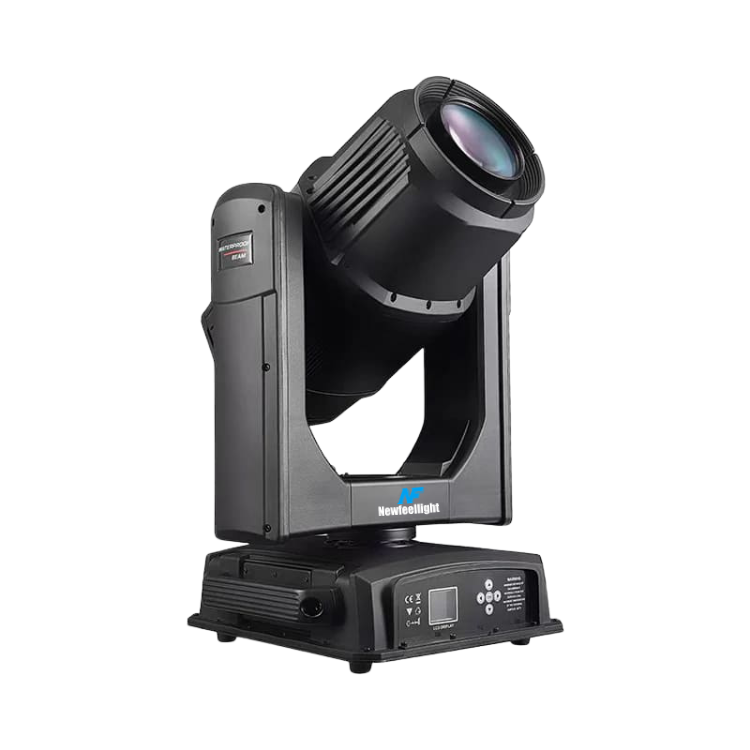

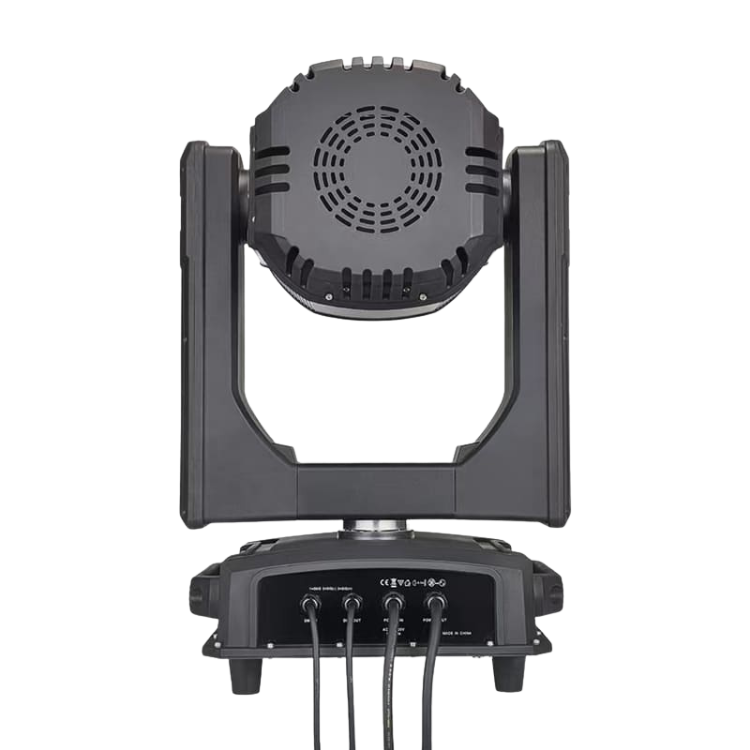

480W IP65 Outdoor Beam Moving Head Light for Concert & Festival Lighting

Model Number：NF-L480
●480W High-Power Beam Output：Delivers strong long-distance beam performance for concerts, festivals, and outdoor stages.
●IP65 Waterproof Design：Reliable operation in rain, dust, and harsh outdoor environments.
●2° Ultra-Narrow Beam：Sharp beam with strong aerial visibility for large venue lighting effects.
●Color, Gobo & Prism Effects：Built-in optical system for dynamic beam shaping and creative stage design.
●Fast & Precise Pan/Tilt Movement：Smooth motion for synchronized professional lighting performances.
●Intelligent Cooling System：Ensures stable output during long-hour continuous operation.
●DMX512 Control Compatibility：Fully supports professional lighting consoles and stage integration.
●Heavy-Duty Rental Construction：Built for touring, rental, and high-frequency commercial use.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting

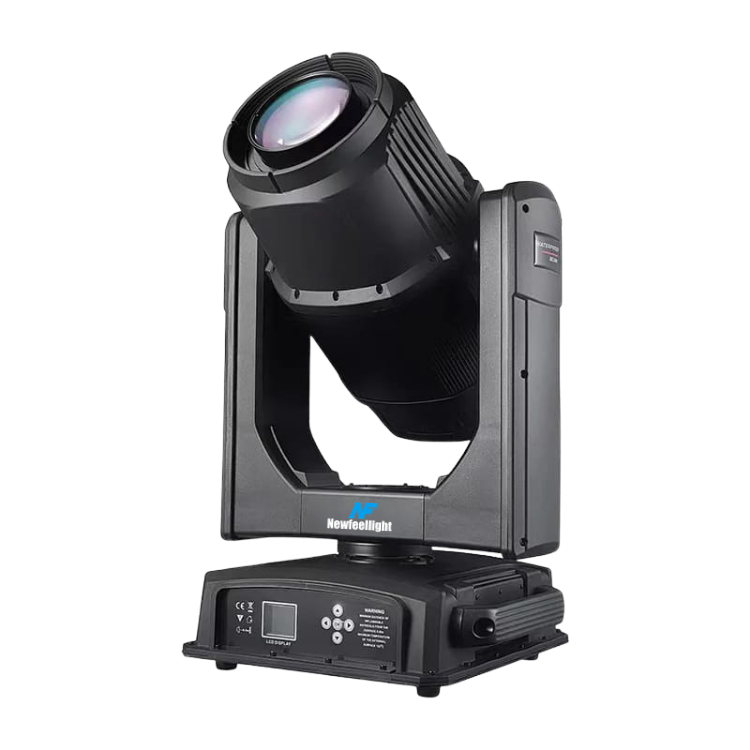

NF-L480 moving head light
watch viedo
High-Power 480W Professional Beam Output
Equipped with a 480W high-performance light engine, delivering strong long-throw beam output for outdoor concerts, festivals, and large-scale stage productions.
IP65 Waterproof Outdoor Stage Design
Built with IP65/IP66-level waterproof housing, ensuring stable performance in rain, dust, humidity, and extreme outdoor environments.
480W moving head light
Hybrid Beam Spot Optical System
Supports beam + spot functionality with a 2° ultra-narrow beam angle, enabling sharp projection and long-distance aerial effects.
Intelligent Cooling & Protection System
Integrated copper tube heat dissipation, intelligent temperature monitoring, and gyroscope-based fan control to extend lamp lifespan in demanding outdoor conditions.
480W moving head light
High-Power 480W Professional Beam Output
Equipped with a 480W high-performance light engine, delivering strong long-throw beam output for outdoor concerts, festivals, and large-scale stage productions.
IP65 Waterproof Outdoor Stage Design
Built with IP65/IP66-level waterproof housing, ensuring stable performance in rain, dust, humidity, and extreme outdoor environments.
Hybrid Beam Spot Optical System
Supports beam + spot functionality with a 2° ultra-narrow beam angle, enabling sharp projection and long-distance aerial effects.
Intelligent Cooling & Protection System
Integrated copper tube heat dissipation, intelligent temperature monitoring, and gyroscope-based fan control to extend lamp lifespan in demanding outdoor conditions.

Professional Motion Control System
3-phase high-torque pan/tilt motors ensure ultra-smooth, fast, and silent movement for precise stage programming.
moving head light
fog machine
Professional Motion Control System
3-phase high-torque pan/tilt motors ensure ultra-smooth, fast, and silent movement for precise stage programming.
moving head light
moving head light
Advanced Color & Gobo Effect System
Features 13 color filters + open white, rainbow effect, frost function, and 14 fixed gobos for rich dynamic visual layering.
DMX512 & Multi-Control Compatibility
Supports DMX512 (16CH/20CH), auto-run, and master-slave modes, fully compatible with professional lighting control systems for concerts and rentals.
Stage Effect Machine


Specifications
Download Catalogue
Power
480W high-performance beam moving head
Light Source
Osram 371W / Philips 420W lamp option
Voltage
AC 110V/230V, 50/60Hz
Control Modes
DMX512, Auto-run, Master-Slave
DMX Channels
16CH / 20CH optional
Beam Angle
2° ultra-narrow beam output
Color System
13 color filters + open white, rainbow effect, frost function
Gobo Wheel
14 fixed gobos + open aperture
Prism Effect
8-facet rotatable prism with macro function
Focus
Electronic motorized linear focus system
Movement
High-speed 3-phase pan/tilt system for smooth operation
Strobe
1–25Hz high-speed strobe with pulse / sync / random effects
IP Rating
IP66 waterproof professional outdoor design
Housing Material
Die-cast aluminum + UV & heat-resistant composite material
Cooling System
Sealed copper tube heat dissipation + intelligent temperature control
Intelligent Protection
Dehumidification + automatic thermal adjustment system

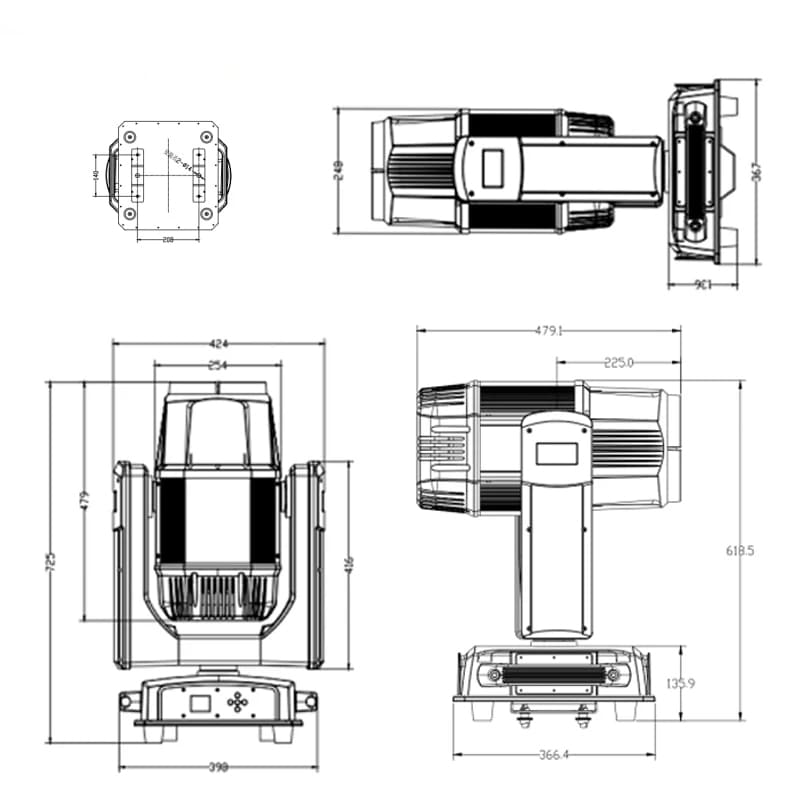

Product Dimensions
435.3 × 363 × 83.5 mm
Net Weight
27 kg
Frequently Asked Question
Q1: Is this 480W moving head light reliable for long-term outdoor use?
A:
Yes. It is built with an IP65-rated sealed structure designed for outdoor stage environments such as concerts, festivals, and rental productions.
The housing protects against rain, dust, and humidity, ensuring stable performance in continuous real-world operation.
Q2: Can this fixture handle heavy-duty rental and touring use?
Q3: What type of control systems does it support for professional setups?
A:
It fully supports DMX512 control and is compatible with standard professional lighting consoles. It also offers auto-run and master-slave modes, making it flexible for both fixed installations and mobile stage productions.
Q4: Do you support private label or branding cooperation for bulk orders?
A:
Yes. We support long-term OEM and private label cooperation for distributors and rental companies. This allows business partners to build their own market identity and maintain consistent branding across their product lineup.
Q5: What is the typical lead time for production and delivery?
A:
Standard production time is usually 7–15 working days depending on order quantity and project requirements. For time-sensitive events or large-scale projects, priority production can be arranged to support tighter schedules.
Q6: What warranty and after-sales support is provided?
A:
Spare parts and remote technical assistance are available to ensure stable operation for professional users.
Q7: How does the IP65 protection perform in real outdoor environments?
A:
The IP65 structure ensures protection against rain, dust, and humidity exposure in typical outdoor stage conditions.
It is suitable for temporary outdoor setups such as concerts and festivals, where weather resistance and stability are required.
Q8: What makes this 480W beam moving head suitable for commercial buyers?
A:
It combines a 2° ultra-narrow beam, high-speed pan/tilt system, and multi-effect optical system including color, gobo, and prism functions.
Together with stable thermal management and outdoor protection, it is designed for consistent commercial performance in demanding environments.
