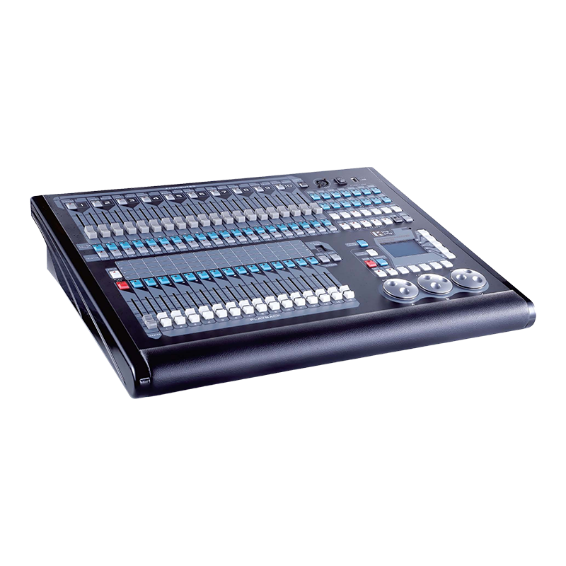

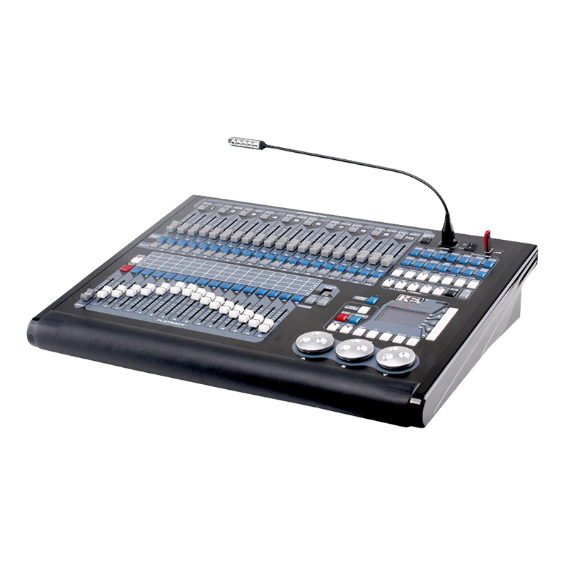

2,048 Channels DMX Controller for Concerts and Large Events

Model Number:KK-2048
● 2,048-Channel Professional DMX512 Control supports up to 200 moving heads or dimmers, providing flexible lighting management for clubs, DJ shows, stages, concerts, and large event productions.

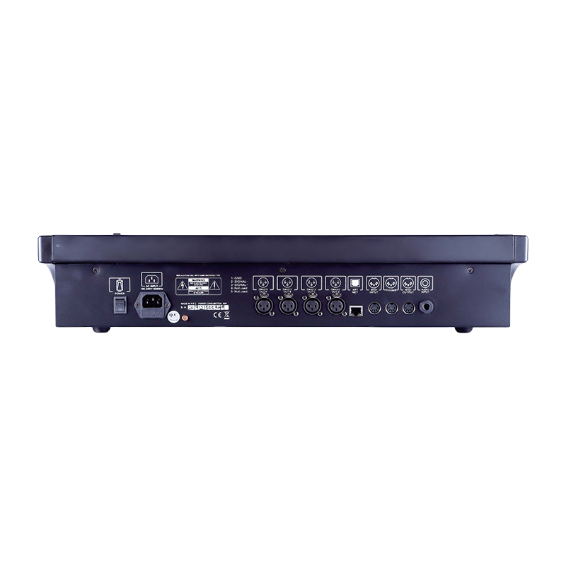

● 4 Optically Isolated DMX Outputs with Art-Net & RDM provide stable signal transmission and flexible network integration for professional stage lighting systems and multi-fixture installations.
● 227 Built-In Shape Effects include Circle, Rainbow, Chase, and other presets, with independent Speed, Amplitude, Wave, and Direction adjustment for faster creative show programming.
● Advanced Scene & Playback Programming supports up to 150 playbacks, 15 simultaneous playbacks, 600-step chases, 100 palettes, and 100 programs for complex live and automated lighting shows.
● Avolites Pearl R20 Fixture Library Support allows fast fixture setup, while onboard profile editing lets operators create or modify fixture personalities directly on the console.
● USB Backup & Offline Programming allow show data to be saved, shared between identical consoles, and prepared before arriving on site, helping reduce programming and setup time.
● Timecode, MIDI & Live Show Control provide external triggering, instant blackout, cue and scene interlocking, and 15 playback faders for responsive operation during professional performances.
● Reliable Data Protection & System Updates include automatic power-failure memory and remote software or firmware upgrades, helping protect show data and support dependable long-term operation.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
2048-channel-dmx-lighting-controller
watch video
2048 DMX Channels
Supports 2,048 DMX channels and up to 200 fixtures for large stage and event lighting systems.
It gives lighting designers more capacity to manage moving heads and dimmers in complex productions.
Art-Net & RDM Control
Built-in Art-Net and RDM with four optically isolated DMX outputs for stable system integration.
This makes it easier to expand professional lighting networks while maintaining reliable signal transmission.
2048 Channel DMX Lighting Controller
227 Built-In Shapes
Includes 227 preset shapes with adjustable speed, amplitude, wave, and direction.
Up to 10 shapes can run at the same time, helping users create dynamic effects faster.
Flexible Playback Control
Supports 600-step chases, 150 playbacks, 100 palettes, and 100 show programs.
Fifteen playback faders allow quick access to scenes and cues during live shows.
Stage Lighting Controller
2048 DMX Channels
Supports 2,048 DMX channels and up to 200 fixtures for large stage and event lighting systems.
It gives lighting designers more capacity to manage moving heads and dimmers in complex productions.
Art-Net & RDM Control
Built-in Art-Net and RDM with four optically isolated DMX outputs for stable system integration.
This makes it easier to expand professional lighting networks while maintaining reliable signal transmission.
227 Built-In Shapes
Includes 227 preset shapes with adjustable speed, amplitude, wave, and direction.
Up to 10 shapes can run at the same time, helping users create dynamic effects faster.
Flexible Playback Control
Supports 600-step chases, 150 playbacks, 100 palettes, and 100 show programs.
Fifteen playback faders allow quick access to scenes and cues during live shows.

Avolites R20 Library
Supports the Avolites Pearl R20 library with onboard fixture profile editing. Users can quickly add compatible fixtures or create custom profiles directly on the console.
2048 Channel DMX Controller
Event Lighting
Avolites R20 Library
Supports the Avolites Pearl R20 library with onboard fixture profile editing. Users can quickly add compatible fixtures or create custom profiles directly on the console.
dmx light control
Programmable DMX Controller
USB Backup & Offline Programming
Back up show files by USB and prepare programs offline to reduce on-site setup time. Show data can also be shared between identical consoles for easier project preparation and transfer.
Show data can also be shared between identical consoles for easier project preparation and transfer.
Includes blackout, timecode, MIDI triggering, power-failure memory, and remote updates. These tools help keep live operation efficient while protecting important programming data during unexpected interruptions.
DMX Lighting Console


Specifications
Download Catalogue
Model
KK-2048
Product Type
DMX Lighting Controller
DMX Standard
DMX512/1990
DMX Channels
Max 2,048 channels
Signal Output
4x Optically isolated ports
Network Port
Art-Net (Built-in Simulator & RDM)
Built-in Shapes
227 Pre-set shapes (Circle, Rainbow, Chase, etc.)
Fixture Control
Controls up to 200 Moving Heads or Dimmers
Fixture Library
Supports Avolites Pearl (R20 format)
On-board Editing
Create/edit fixture profiles directly on console
Shape Tuning
Independent control of Speed, Amplitude, Wave & Direction
Shape Limits
Run up to 10 shapes simultaneously (5 per scene)
Fast Setup
Advanced fixture grouping & scene overlapping supported
Master Faders
15 Playback faders (Key flash compatible)
Max Playbacks
Stores up to 150 (Runs 15 simultaneously)
Step Capacity
Up to 600 single steps per multi-step chase
Palettes/Presets
Stores 100 Palettes with 4 flexible saving modes
Show Recording
Stores up to 100 programs for automated shows
Audio Sync
Built-in Timecode & external MIDI triggering
Data Protection
Power-failure memory (Auto-saves during sudden outages)
USB Backup
Easy data backup & sharing between identical consoles
Upgrades
Supports remote software/firmware updates
Live Tools
Instant Blackout (BO) & cue/scene interlocking
Display
Backlit LCD with switchable English interface
Dimensions
600mm × 460mm × 120mm
Offline Programming
Pre-program your shows offline to save time
Power Supply
AC 100-240V / 50-60Hz
Frequently Asked Question
Q1: What applications is this 2,048 Channels DMX Controller suitable for?
A:
It is suitable for clubs, DJ shows, stages, concerts, theaters, rental productions, and large event lighting systems. With support for up to 200 moving heads or dimmers, it is designed for medium to large professional lighting setups.
Q2: How many fixtures can this DMX controller manage?
Q3: What control protocols and network functions does it support??
A:
It supports standard DMX512/1990, Art-Net, and RDM, with four optically isolated DMX outputs. These functions allow stable signal distribution and flexible integration with professional lighting networks.
Q4: Does the console support fixture libraries and custom fixture profiles?
A:
Yes. It supports the Avolites Pearl R20 fixture library and allows users to create or edit fixture profiles directly on the console. This makes it easier to add compatible moving heads, dimmers, and other DMX fixtures.
Q5: Can I program complex scenes and effects with this controller?
A:
Yes. The console includes 227 built-in shapes, up to 600 steps per chase, 150 playbacks, 100 palettes, and 100 show programs. It can also run up to 10 shapes simultaneously for more dynamic lighting effects.
Q6: Can show files be backed up or prepared before an event?
A:
Yes. USB backup allows show data to be saved and shared between identical consoles, while offline programming lets technicians prepare shows before arriving at the venue. Power-failure memory also helps protect programming data during unexpected outages.
Q7: Do you support bulk orders and customized project requirements?
A:
Yes. The controller is suitable for distributors, rental companies, stage lighting contractors, clubs, and event production companies. Bulk orders and project-based requirements can be discussed according to fixture quantity and system needs.
Q8: What after-sales and delivery support is available?
A:
We provide technical guidance, operation support, and after-sales assistance for professional lighting projects. The console also supports remote software and firmware updates, helping users maintain the system during long-term operation.
2048-channel-dmx-lighting-controller
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
