Kingkong KK-768 768-Channel DMX Lighting Controller for Stage Lighting

Model Number：KK-768
● 768-Channel DMX Lighting Controller supports the DMX512/1990 standard with up to 768 DMX control channels, suitable for moving head lights, dimmers, LED fixtures, and professional stage lighting systems.
● Control up to 32 Fixtures or Dimming Channels allows operators to manage up to 32 moving head fixtures or 32 dimming channels from one compact DMX lighting console.
● Built-In 135 Graphic Effects includes a graphic trajectory generator for creating circles, spirals, rainbows, chases, waves, and other moving head lighting effects quickly.
● Adjustable Graphic Parameters supports independent adjustment of amplitude, speed, interval, wave, and direction, making it easier to create customized lighting scenes and dynamic stage effects.
● Backlit LCD Display with Chinese & English Interface provides easier operation for lighting technicians, rental companies, event teams, and international stage lighting users.
● Powerful Scene Storage & Playback stores up to 60 playback scenes, with each multi-step scene supporting up to 600 steps and up to 12 playback scenes running at the same time.
● USB Backup, Data Memory & Flight Case Protection supports USB data backup, data re-import, power-off memory, remote software upgrade, and shockproof flight case packaging for rental, transport, and project use.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
768-channel-dmx-lighting-controller
watch video
768-Channel DMX Lighting Controller for Professional Stage Systems
The KK-768 DMX Lighting Controller supports the DMX512/1990 standard with up to 768 DMX control channels, making it suitable for professional stage lighting systems, moving head lights, dimmers, LED fixtures, and event lighting setups.
Controls up to 32 Fixtures or 32 Dimming Channels
Designed for flexible lighting control, this DMX console can control up to 32 moving head fixturesor 32 dimming channels, helping lighting operators manage multiple fixtures from one compact control desk.
DMX Lighting Console
Built-In 135 Graphics for Moving Head Effects
The controller includes a built-in graphic trajectory generator with 135 preset graphics, allowing users to quickly create effects such as circles, spirals, rainbows, chases, waves, and other moving head lighting movements.
Adjustable Graphic Parameters for Creative Lighting Scenes
Graphic parameters such as amplitude, speed, interval, wave, and direction can be adjusted independently, giving users faster and more flexible control when building stage lighting scenes and dynamic effects.
Stage Lighting Controller
768-Channel DMX Lighting Controller for Professional Stage Systems
The KK-768 DMX Lighting Controller supports the DMX512/1990 standard with up to 768 DMX control channels, making it suitable for professional stage lighting systems, moving head lights, dimmers, LED fixtures, and event lighting setups.
Controls up to 32 Fixtures or 32 Dimming Channels
Designed for flexible lighting control, this DMX console can control up to 32 moving head fixturesor 32 dimming channels, helping lighting operators manage multiple fixtures from one compact control desk.
Built-In 135 Graphics for Moving Head Effects
The controller includes a built-in graphic trajectory generator with 135 preset graphics, allowing users to quickly create effects such as circles, spirals, rainbows, chases, waves, and other moving head lighting movements.
Adjustable Graphic Parameters for Creative Lighting Scenes
Graphic parameters such as amplitude, speed, interval, wave, and direction can be adjusted independently, giving users faster and more flexible control when building stage lighting scenes and dynamic effects.

LCD Display with Chinese & English Interface
The KK-768 features a backlit LCD display with a switchable Chinese and English interface, making operation easier for rental companies, lighting technicians, and international stage lighting projects.
Moving Head Light Controller
Event Lighting
LCD Display with Chinese & English Interface
The KK-768 features a backlit LCD display with a switchable Chinese and English interface, making operation easier for rental companies, lighting technicians, and international stage lighting projects.
dmx light control
stage lighting equipment
Powerful Scene Storage & Playback Control
The console can store 60 playback scenes, with each multi-step scene supporting up to 600 steps. Up to 12 playback scenes can run at the same time, making it suitable for complex stage shows and live event control.

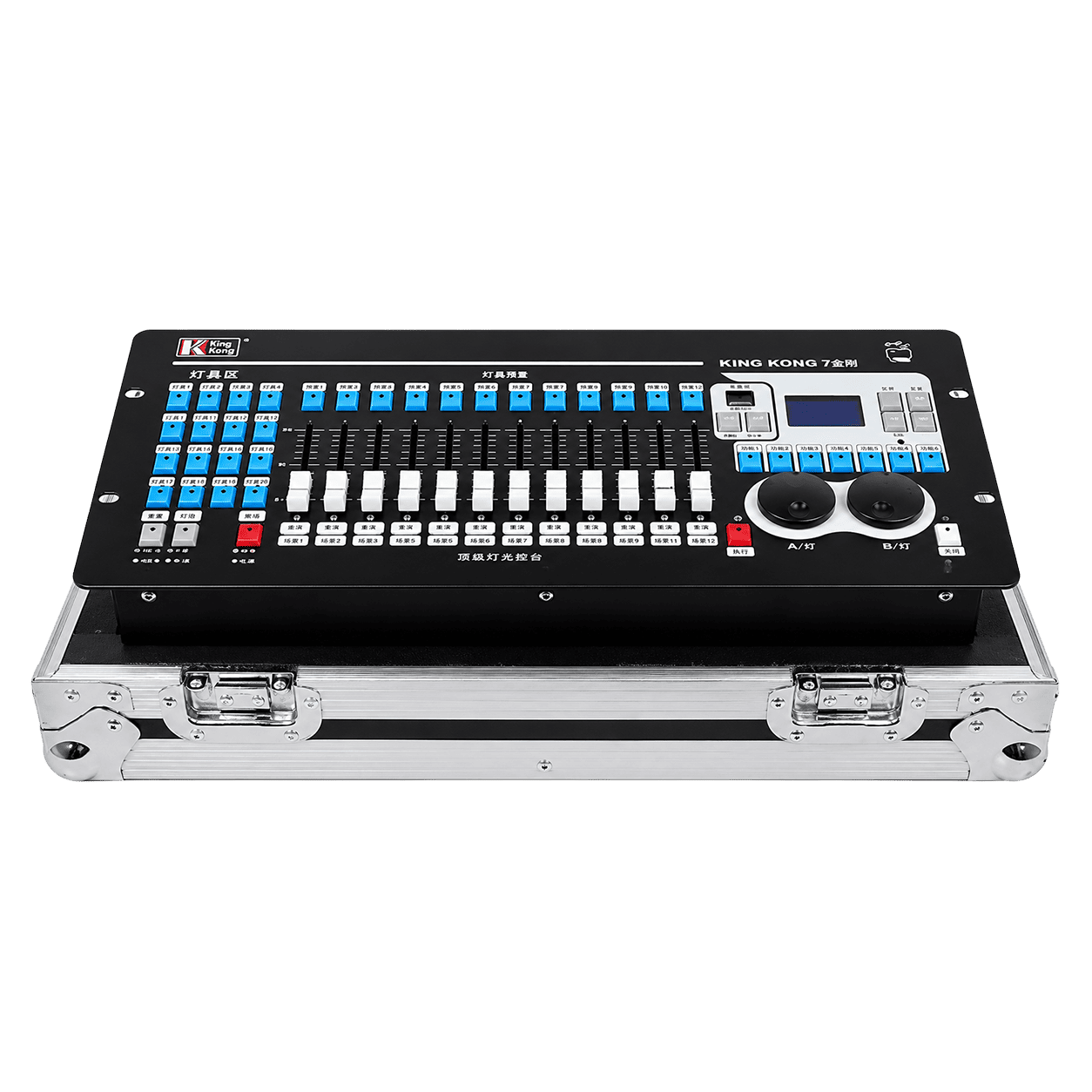

USB Backup, Data Memory & Flight Case Protection
The controller supports USB data backup and re-import, data memory after power loss, and remote software upgrades. With a 480 × 230 × 90mm console size and shockproof flight case packaging, it is convenient for rental use, transportation, and stage lighting projects.
DMX Lighting Console


Specifications
Download Catalogue
Model
KK-768
Product Type
DMX Lighting Controller
DMX Standard
DMX512/1990
DMX Channels
768 Channels
Signal Output
2 Optically Isolated DMX Outputs
Fixture Control
Up to 32 Moving Head Fixtures / 32 Dimming Channels
Display
Backlit LCD Display
Language
Chinese / English Switchable Interface
Built-In Graphics
135 Graphic Effects
Graphic Adjustment
Amplitude / Speed / Interval / Wave / Direction
Scene Storage
60 Playback Scenes
Steps per Scene
Up to 600 Steps
Simultaneous Playback
Up to 12 Playback Scenes
Data Backup
USB Backup & Re-Import
Memory Function
Power-Off Data Memory
Software Upgrade
Remote Upgrade Supported
Power Supply
AC100-240V, 50-60Hz
Console Size
480 × 230 × 90 mm
Packing
Shockproof Flight Case
Flight Case Size
540 × 320 × 180 mm
Frequently Asked Question
Q1: What is the KK-768 DMX Lighting Controller used for?
A:
The KK-768 is designed for controlling stage lighting systems, including moving head lights, LED fixtures, dimmers, and event lighting setups. It supports up to 768 DMX control channels for professional stage and rental applications. ​
Q2: How many fixtures can the KK-768 control?
Q3: Does the KK-768 support the DMX512 standard?
A:
Yes. The KK-768 supports the DMX512/1990 standard and provides two optically isolated DMX signal outputs for stable lighting control. ​
Q4: What built-in effects does this DMX console include?
A:
It includes a built-in graphic trajectory generator with 135 preset graphics, such as circle, spiral, rainbow, chase, wave, and other moving head lighting effects.​
Q5: Can I adjust the built-in graphic effects?
A:
Yes. Graphic parameters such as amplitude, speed, interval, wave, and direction can be adjusted independently, helping users create customized lighting scenes faster.​
Q6: How many scenes can the KK-768 store?
A:
The console can store 60 playback scenes. Each multi-step scene can include up to 600 single steps, and up to 12 playback scenes can run at the same time. ​
Q7: Does it support Chinese and English operation?
A:
Yes. The KK-768 features a backlit LCD display with a switchable Chinese and English interface, making it easier for different operators and international users.
Q8: Can the console save data after power loss?
A:
Yes. The KK-768 has power-off memory, so saved data can be retained after shutdown or unexpected power failure.
Q9: Does it support USB backup?
A:
Yes. Console data can be backed up to a USB drive and re-imported when needed. Data can also be shared between the same model consoles.
Q10: Is the KK-768 suitable for rental and touring use?
A:
Yes. The controller comes with a shockproof flight case with four locks and dual handles. It is convenient for transportation, storage, rental use, and stage lighting projects.
