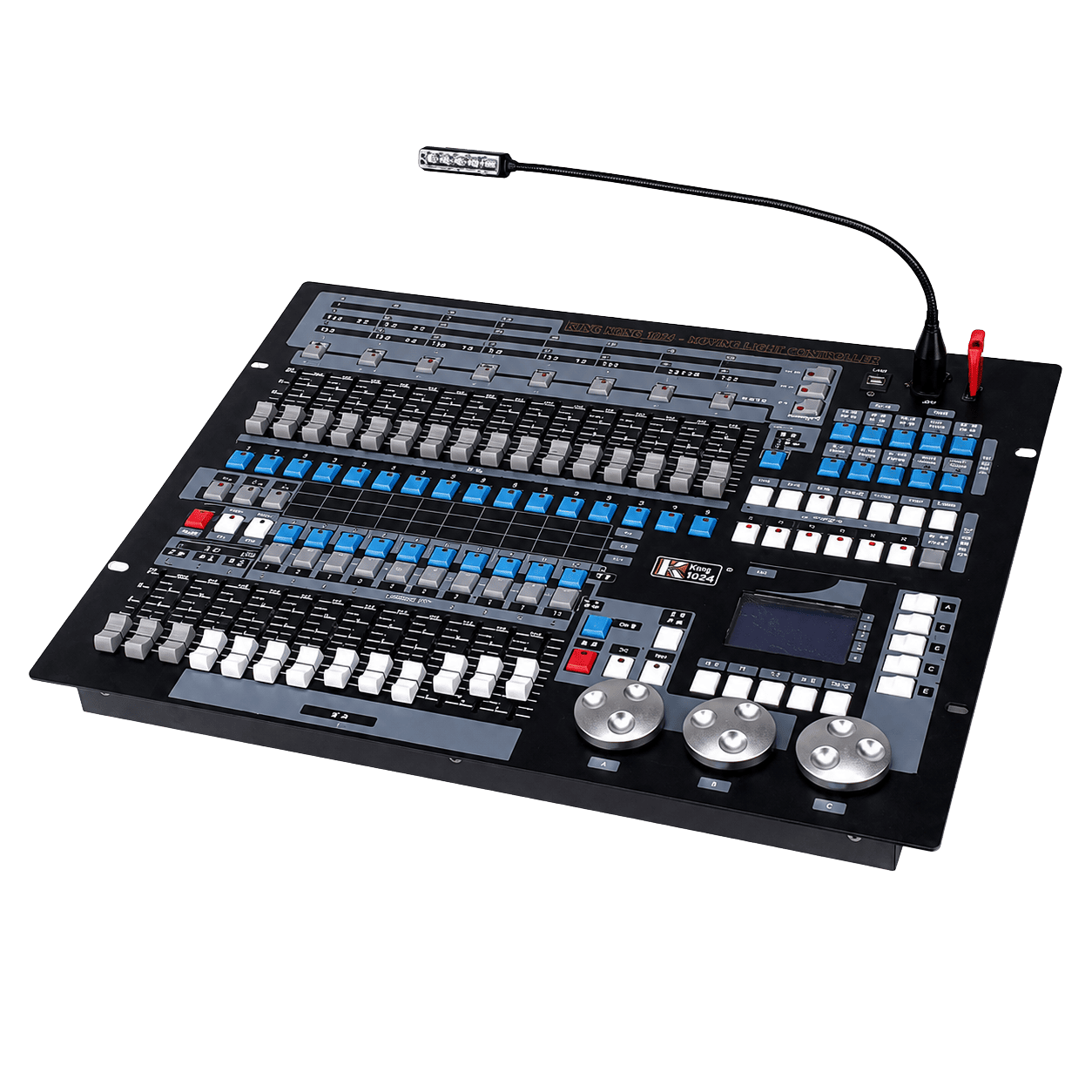

KK-1024 Programmable DMX Lighting Controller for Stage Lighting

Model Number:KK-1024
● 1024-Channel DMX Lighting Controller supports the DMX512/1990 standard with up to 1024 DMX control channels, two optically isolated DMX outputs, and an Art-Net network expansion port for professional stage lighting control.
● Control up to 96 Fixtures or Dimming Channels allows operators to manage up to 96 moving head fixtures or 96 dimming channels, suitable for medium to large stages, clubs, theaters, rental events, and lighting projects.
● Pearl R20 Fixture Library with On-Console Editing uses Pearl R20 format fixture libraries and supports fixture library editing directly on the console for faster setup with different moving head lights and DMX fixtures.
● Built-In 135 Graphic Effects includes a graphic trajectory generator for creating circles, spirals, rainbows, chases, waves, and other moving head lighting effects quickly.
● RDM, Built-In Simulator & Playback Control supports RDM function, built-in simulator, 60 materials, 60 playback scenes, up to 600 steps per multi-step scene, and 10 playback scenes running at the same time.
● Backlit LCD Display with Chinese & English Interface provides easier operation for lighting technicians, rental companies, event teams, and international stage lighting users.
● USB Backup, Power-Off Memory & Flight Case Protection supports USB data backup, data re-import, same-model data sharing, power-off memory, remote software upgrade, instant blackout, optional gooseneck work light, and shockproof flight case packaging for rental and transport use.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
1024-channel-dmx-lighting-controller
watch video
1024-Channel DMX Lighting Controller with Art-Net

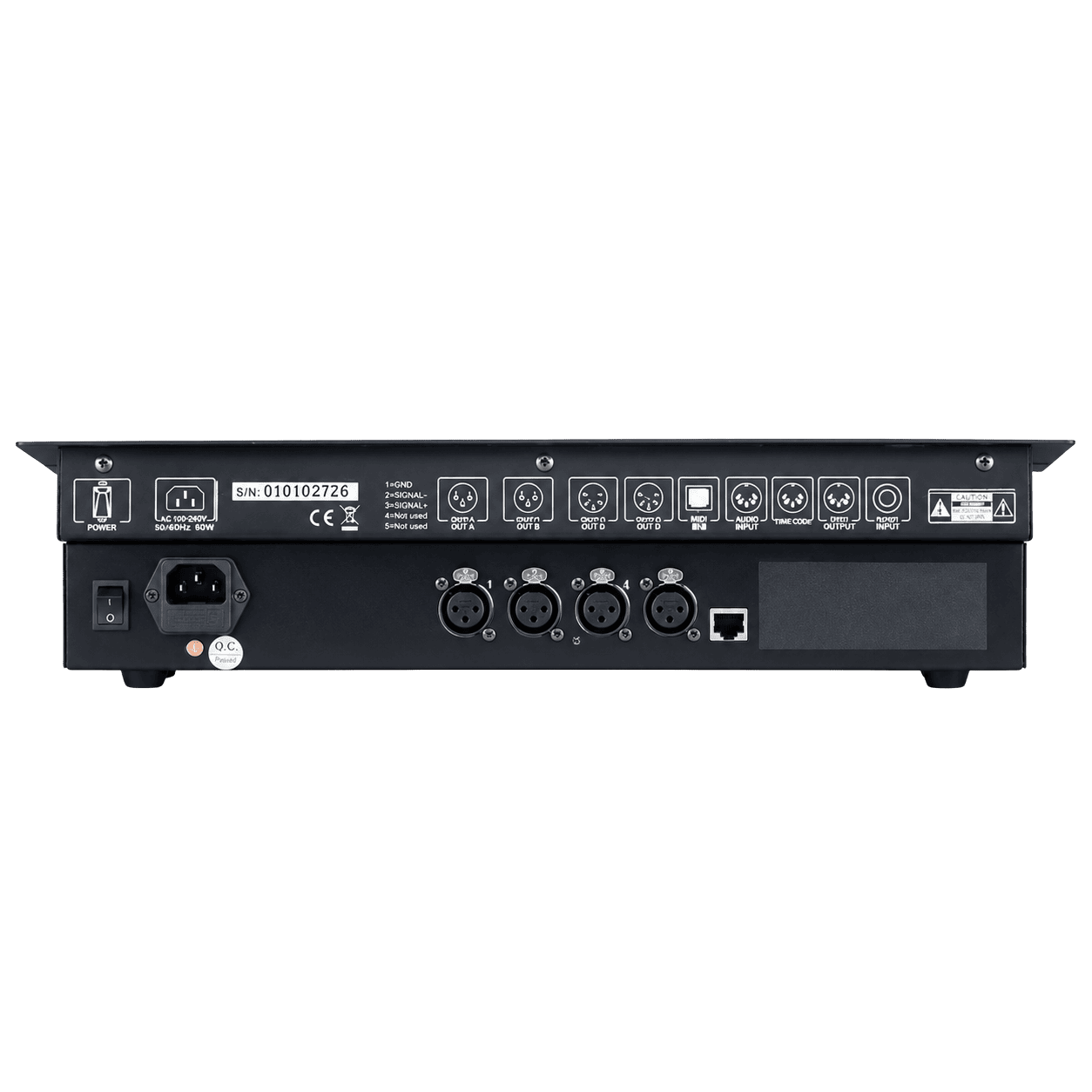

The KK-1024 DMX Lighting Controller supports the DMX512/1990 standard with up to 1024 DMX control channels, two optically isolated DMX signal outputs, and an Art-Net network expansion port.
It is designed for professional stage lighting control, moving head lights, dimmers, LED fixtures, and event lighting systems.
Controls up to 96 Fixtures or 96 Dimming Channels
The KK-1024 can control up to 96 moving head fixtures or 96 dimming channels, making it suitable for medium to large stage shows, clubs, theaters, rental events, and professional lighting projects that require more fixture capacity.
1024 Channel DMX Lighting Controller
Pearl R20 Fixture Library with On-Console Editing
The controller uses the Pearl R20 fixture library format and supports fixture library editing directly on the console. This helps lighting operators quickly match different moving head lights, LED stage lights, and DMX fixtures during setup.
Built-In 135 Graphic Effects for Moving Head Control
With a built-in graphic trajectory generator and 135 preset graphics, the KK-1024 allows users to quickly create moving head effects such as circles, spirals, rainbows, chases, waves, and other dynamic stage lighting movements.
Stage Lighting Controller
1024-Channel DMX Lighting Controller with Art-Net
The KK-1024 DMX Lighting Controller supports the DMX512/1990 standard with up to 1024 DMX control channels, two optically isolated DMX signal outputs, and an Art-Net network expansion port.
It is designed for professional stage lighting control, moving head lights, dimmers, LED fixtures, and event lighting systems.
Controls up to 96 Fixtures or 96 Dimming Channels
The KK-1024 can control up to 96 moving head fixtures or 96 dimming channels, making it suitable for medium to large stage shows, clubs, theaters, rental events, and professional lighting projects that require more fixture capacity.
Pearl R20 Fixture Library with On-Console Editing
The controller uses the Pearl R20 fixture library format and supports fixture library editing directly on the console. This helps lighting operators quickly match different moving head lights, LED stage lights, and DMX fixtures during setup.
Built-In 135 Graphic Effects for Moving Head Control
With a built-in graphic trajectory generator and 135 preset graphics, the KK-1024 allows users to quickly create moving head effects such as circles, spirals, rainbows, chases, waves, and other dynamic stage lighting movements.

RDM, Built-In Simulator & Professional Playback Control
The KK-1024 includes built-in simulator and RDM functions for more professional fixture management. It can store 60 materials and 60 playback scenes, with each multi-step scene supporting up to 600 steps and up to 10 playback scenes running at the same time.
1024 Channel DMX Controller
Event Lighting
RDM, Built-In Simulator & Professional Playback Control
The KK-1024 includes built-in simulator and RDM functions for more professional fixture management. It can store 60 materials and 60 playback scenes, with each multi-step scene supporting up to 600 steps and up to 10 playback scenes running at the same time.
dmx light control
Programmable DMX Controller

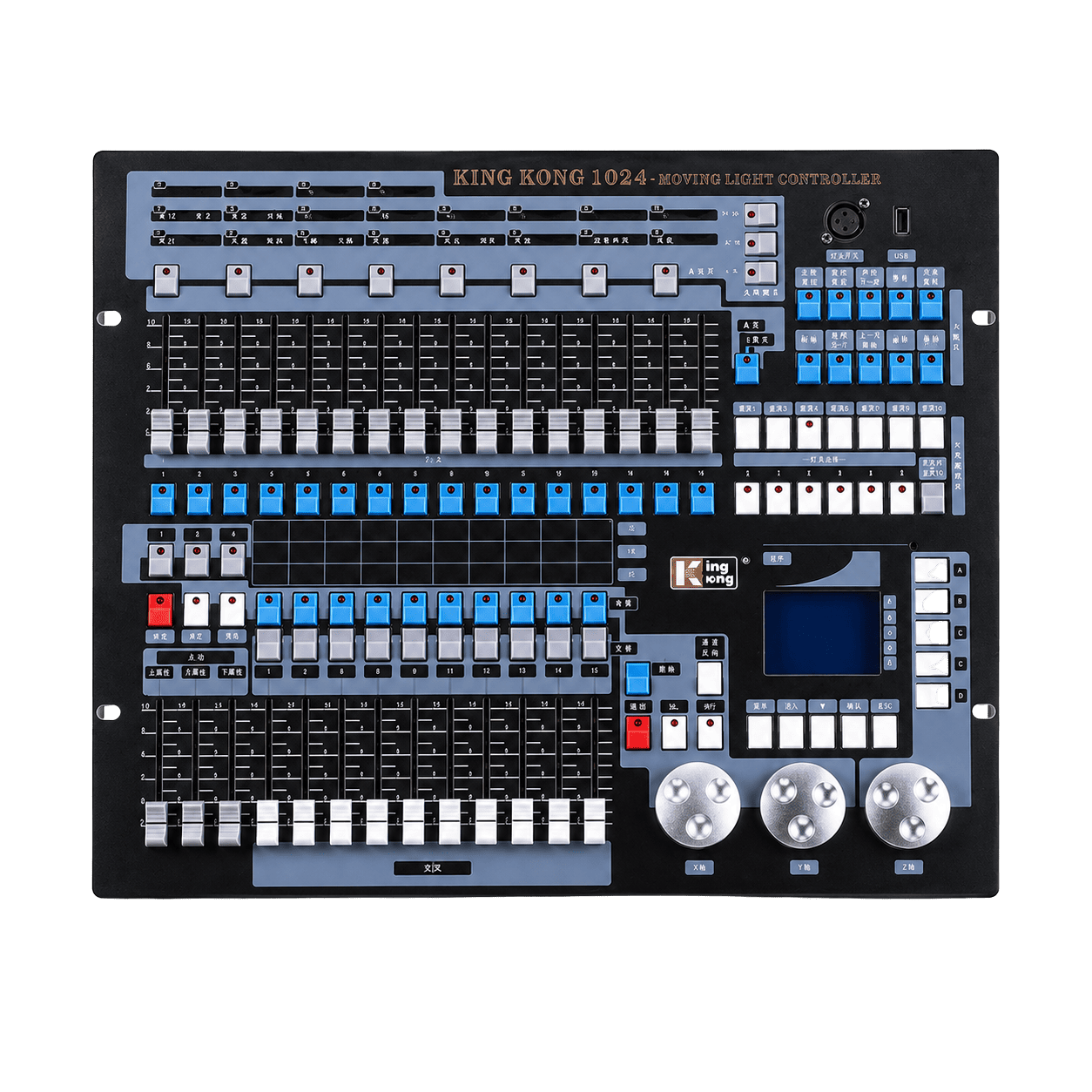

Chinese & English LCD Interface with 10 Master Faders
The console features a backlit LCD display with a switchable Chinese and English interface. It also includes 10 master faders, compatible with button flash control and fader control, making live operation faster and more flexible for lighting technicians.
USB Backup, Power-Off Memory & Flight Case Protection
The KK-1024 supports USB data backup and re-import, same-model data sharing, power-off memory, remote software upgrades, instant blackout, and optional gooseneck work light. With a 485 × 400 × 105mm console size and shockproof flight case packaging, it is suitable for rental, touring, and stage lighting projects.
DMX Lighting Console


Specifications
Download Catalogue
Model
KK-1024
Product Type
DMX Lighting Controller
DMX Standard
DMX512/1990
DMX Channels
1024 Channels
Signal Output
2 Optically Isolated DMX Outputs
Network Port
Art-Net Port
RDM Function
Built-in RDM
Fixture Control
Up to 96 Fixtures / 96 Dimming Channels
Fixture Library
Pearl R20 Library / On-Console Editing
Built-In Graphics
135 Graphic Effects
Playback Scenes
60 Scenes
Steps per Scene
Up to 600 Steps
Simultaneous Playback
Up to 10 Scenes
Faders
10 Master Faders
Data Backup
USB Backup & Re-Import
Data Backup
USB Backup & Re-Import
Memory Function
Power-Off Memory
Display
Backlit LCD, Chinese / English Interface
Power Supply
AC100-240V, 50-60Hz
Console Size
485 × 400 × 105 mm
Packing
Shockproof Flight Case
Flight Case Size
540 × 450 × 205 mm
Frequently Asked Question
Q1: What is the KK-1024 DMX Lighting Controller used for?
A:
The KK-1024 is used to control professional stage lighting systems, including moving head lights, LED fixtures, dimmers, clubs, theaters, rental events, and live performance venues. It supports up to 1024 DMX control channels for larger lighting setups. ​
Q2: How many fixtures can the KK-1024 control?
Does the KK-1024 support Art-Net?
A:
Yes. The KK-1024 includes an Art-Net network expansion port, allowing more flexible network-based lighting control for professional stage lighting systems. ​
Q4: Does this controller support RDM?
A:
Yes. The KK-1024 includes RDM function, which helps with professional fixture management and communication in supported lighting systems.​
Q5: What fixture library does the KK-1024 use?
A:
The KK-1024 uses the Pearl R20 fixture library format. Users can also create or edit fixture libraries directly on the console to match different moving head lights and DMX fixtures.​
Q6: What built-in graphic effects does it include?
A:
The controller includes 135 built-in graphic trajectories, including circle, spiral, rainbow, chase, wave, and other moving head lighting effects. ​
Q7: How many scenes can the KK-1024 store?
A:
The KK-1024 can store 60 materials and 60 playback scenes. Each multi-step scene can include up to 600 single steps, and up to 10 playback scenes can run at the same time.
Q8: Does the KK-1024 support USB backup and data sharing?
A:
Yes. It supports USB data backup and re-import. Data can also be shared between the same model consoles, which is useful for rental companies and repeated event setups.
Q9: Does the controller save data after power loss?
A:
Yes. The KK-1024 supports power-off memory, helping protect saved scenes, fixture libraries, and console settings after shutdown or sudden power failure.
Q10: Is the KK-1024 suitable for rental and touring use?
A:

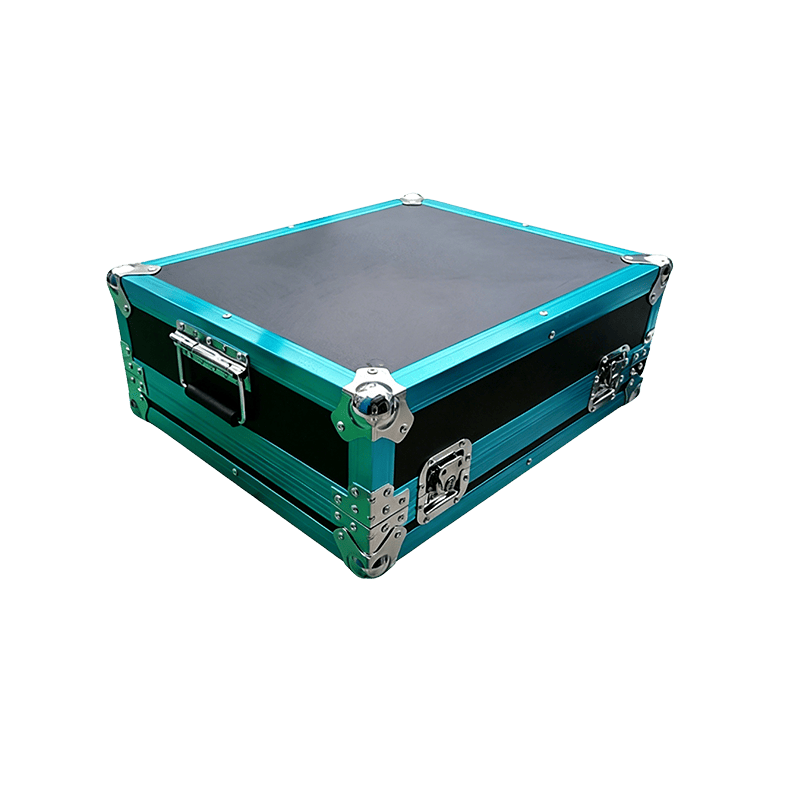

Yes. The KK-1024 comes with a shockproof flight case with four locks and dual handles. It is suitable for transportation, rental use, touring events, and professional stage lighting projects.
