420W IP66 Hybrid Moving Head Light for Outdoor Stage Events

Model Number：NF-P420
●420W Beam Spot Wash 3-in-1 Output：Combines beam, spot, and wash effects with flexible zoom control for stage lighting applications.
●IP66 Waterproof Outdoor Design：Reliable performance in rain, dust, and outdoor event environments.
●CMY Color & Gobo Effects：Creates dynamic visuals with CMY mixing, gobos, and rotating prism effects.
●Motorized Zoom & Focus System：Provides smooth beam adjustment and sharp projection control.
●DMX512 & RDM Compatibility：Supports professional consoles, firmware updates, and flexible stage programming.
●Fast Pan/Tilt Movement System：Delivers smooth 540° pan and 270° tilt movement with precise positioning.
●Smart Cooling & Protection System：Ensures stable operation with overheat protection and low-noise cooling.
●Rental-Ready Professional Design：Durable construction for outdoor events, touring, and rental productions.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting

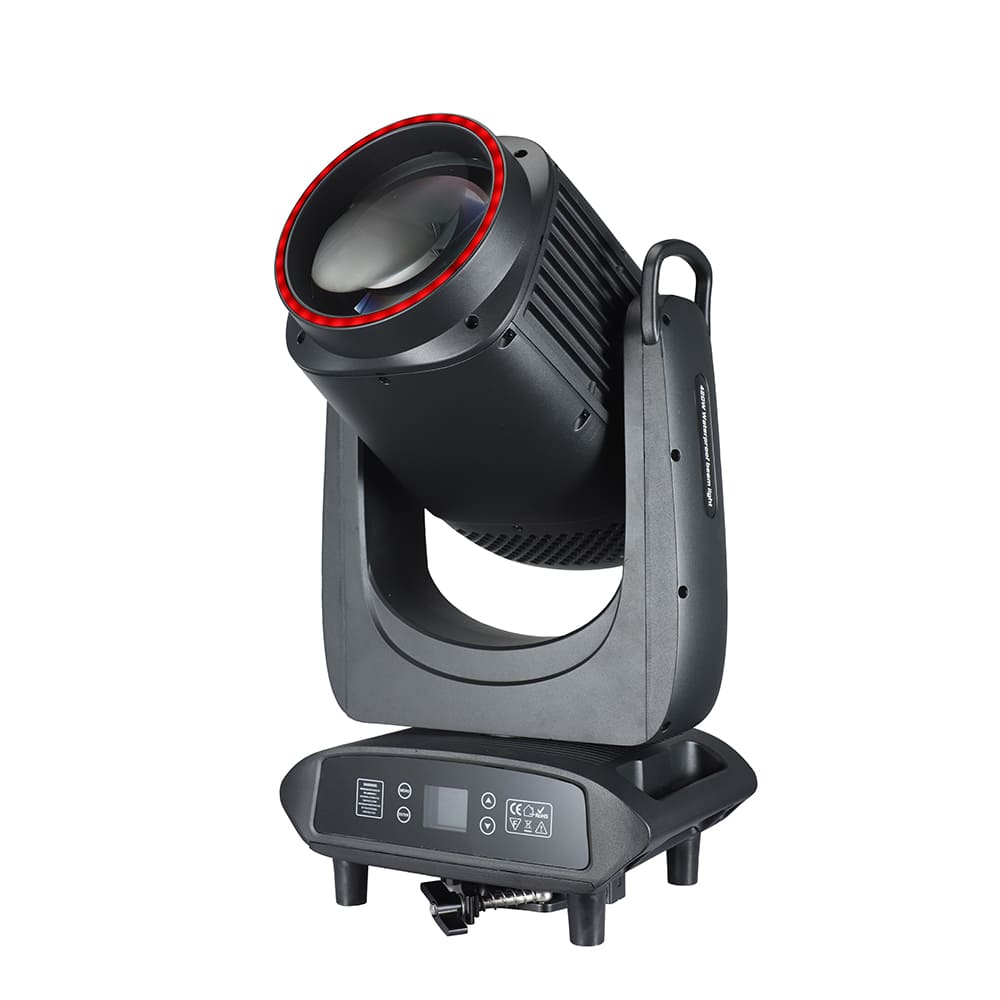

NF-P420 moving head light
watch video
420W Hybrid Beam Spot Wash Performance
Designed as a 3-in-1 hybrid moving head light, this fixture combines beam, spot, and wash functions in one unit.
The adjustable 2°–43° beam angle supports sharp aerial effects, gobo projection, and wide stage coverage.
Precision Pan/Tilt Movement System
The fixture delivers 540° pan and 270° tilt movement with 16-bit precision control.
Intelligent optical homing automatically restores the original position after accidental displacement.
420W moving head light
CMY Color Mixing & Dynamic Effect System
Equipped with CMY color mixing, 13 color filters, dual gobo wheels, and a rotating 8-facet prism.
The optical system creates flexible beam effects, textures, and layered stage visuals.
Advanced Optical Zoom & Focus System
The motorized focus system and adjustable zoom range provide smooth transitions between narrow beam effects and wider spot coverage.
Custom logo projection is supported through rotating glass gobos.
420W moving head light
420W Hybrid Beam Spot Wash Performance
Designed as a 3-in-1 hybrid moving head light, this fixture combines beam, spot, and wash functions in one unit.
The adjustable 2°–43° beam angle supports sharp aerial effects, gobo projection, and wide stage coverage.
Precision Pan/Tilt Movement System
The fixture delivers 540° pan and 270° tilt movement with 16-bit precision control.
Intelligent optical homing automatically restores the original position after accidental displacement.
CMY Color Mixing & Dynamic Effect System
Equipped with CMY color mixing, 13 color filters, dual gobo wheels, and a rotating 8-facet prism.
The optical system creates flexible beam effects, textures, and layered stage visuals.
Advanced Optical Zoom & Focus System
The motorized focus system and adjustable zoom range provide smooth transitions between narrow beam effects and wider spot coverage.
Custom logo projection is supported through rotating glass gobos.

Professional DMX512 & RDM Control
Supports DMX512, RDM, auto-run, and master-slave modes with online firmware upgrade capability.
Multiple control options allow easy integration into professional lighting systems.
moving head light
fog machine
Professional DMX512 & RDM Control
Supports DMX512, RDM, auto-run, and master-slave modes with online firmware upgrade capability.
Multiple control options allow easy integration into professional lighting systems.
moving head light
moving head light
IP66 Waterproof Outdoor Design
Built with an IP66-rated housing and durable die-cast aluminum structure, this waterproof moving head light is designed for outdoor stages, concerts, festivals, and rental productions.
Built for Rental & Outdoor Productions
Designed for professional applications with waterproof connectors, low-noise cooling, overheat protection, and durable construction. The compact 19.8kg body makes transportation and installation easier for rental projects.
Stage Effect Machine


Specifications
Download Catalogue
Light Source
420W Lamp
function
Beam + Spot + Wash 3-in-1
Beam Angle
2°–43° Motorized Zoom
Color System
13 Colors + White, Rainbow Effect, Frost Function
Gobo System
14 Static Gobos + 9 Rotating Glass Gobos (Custom Logo Support)
Prism
Rotating 8-Facet Prism
Control Modes
DMX512, RDM, Auto Run, Sound Active, Master-Slave
DMX Channel
20CH
Pan/Tilt
540° Pan / 270° Tilt, 16-bit Precision Control
Focus
Motorized Focus System
IP Rating
IP66 Waterproof
Cooling
Low-Noise Fan Cooling + Overheat Protection
IP Rating
IP66 waterproof professional outdoor design
Display
LCD Screen with Touch Control
Housing Material
Die-Cast Aluminum Alloy
Size
329 × 228 × 603 mm
Net Weight
19.8 kg
Frequently Asked Question
Q1: Is this 420W hybrid moving head light suitable for outdoor use?
A:
Yes. With IP66 waterproof protection, it is designed for outdoor stages, concerts, festivals, and rental productions in rain, dust, and humidity conditions.
Q2: What effects can this beam spot wash moving head create?
Q3: Does it support CMY color mixing and professional effects?
A:
Yes. It features CMY mixing, dual gobo wheels, color effects, and a rotating prism for creative lighting applications.
Q4: Does it support DMX512 and RDM control?
A:
Yes. It supports DMX512, RDM, auto-run, and master-slave modes for professional lighting system integration.
Q5: Is it suitable for rental and touring use?
A:
Yes. Its IP66 housing, durable construction, and compact design make it suitable for rental companies and touring stage productions.
Q6: Do you support OEM and private label orders?
A:
Yes. We provide OEM and private label cooperation for distributors, rental companies, and long-term business partners.
Q7: What warranty and support are provided?
A:
We provide warranty coverage, spare parts support, and technical assistance for installation and operation.
Q8: What is the lead time for bulk orders?
A:
Production time depends on order quantity and requirements. We support flexible solutions for project schedules and bulk orders.
NF-P420 moving head light Demonstration
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
