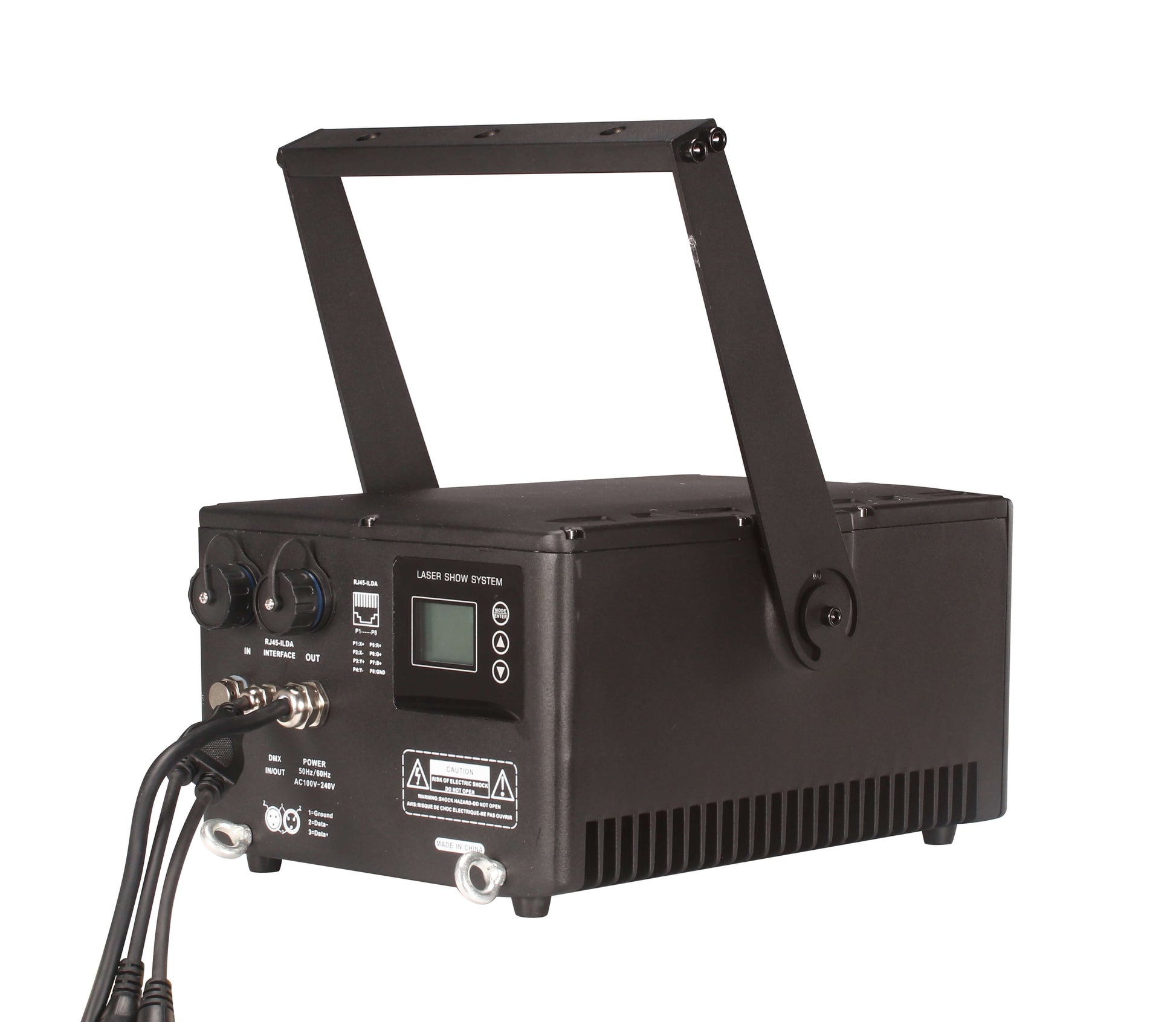

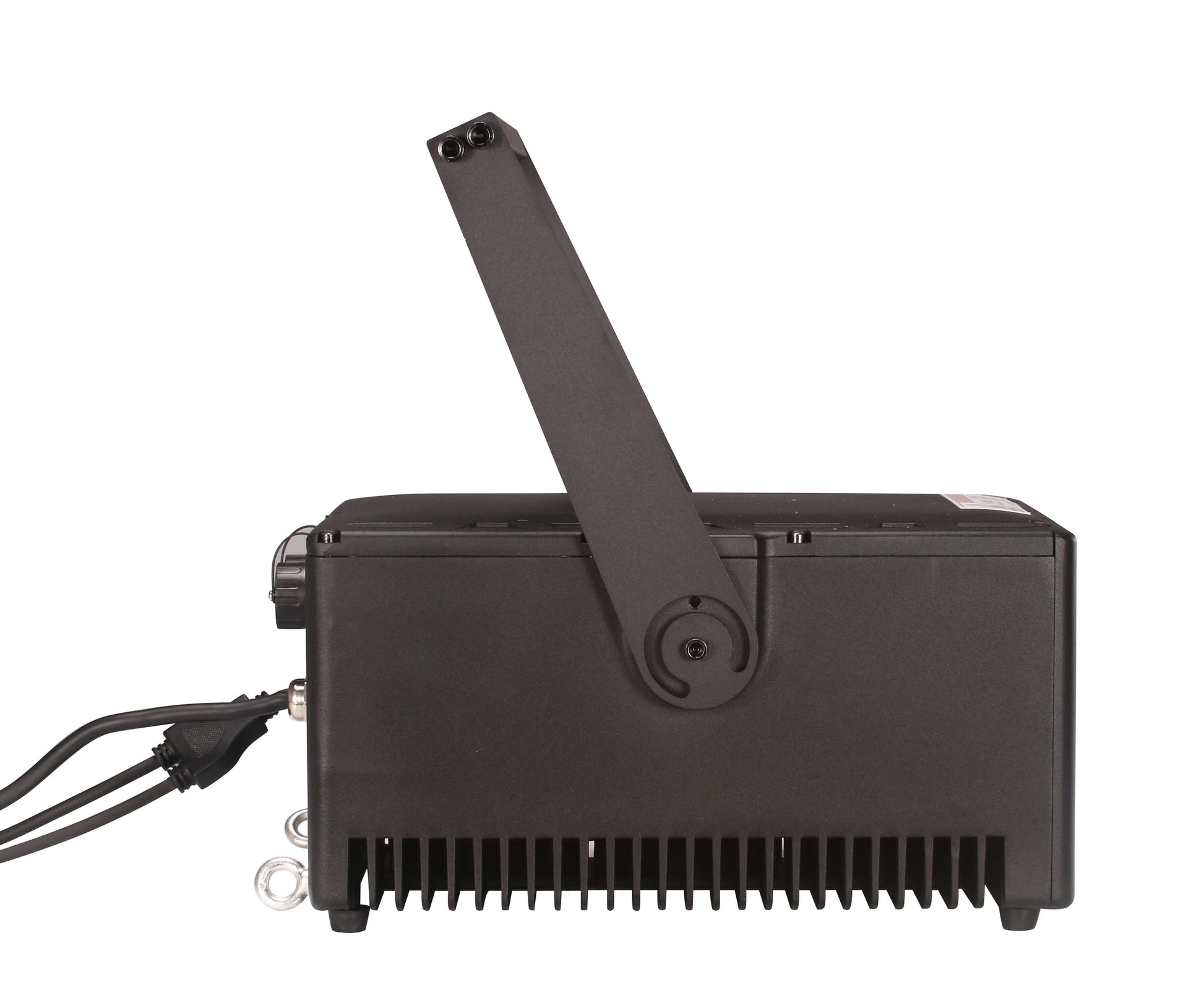

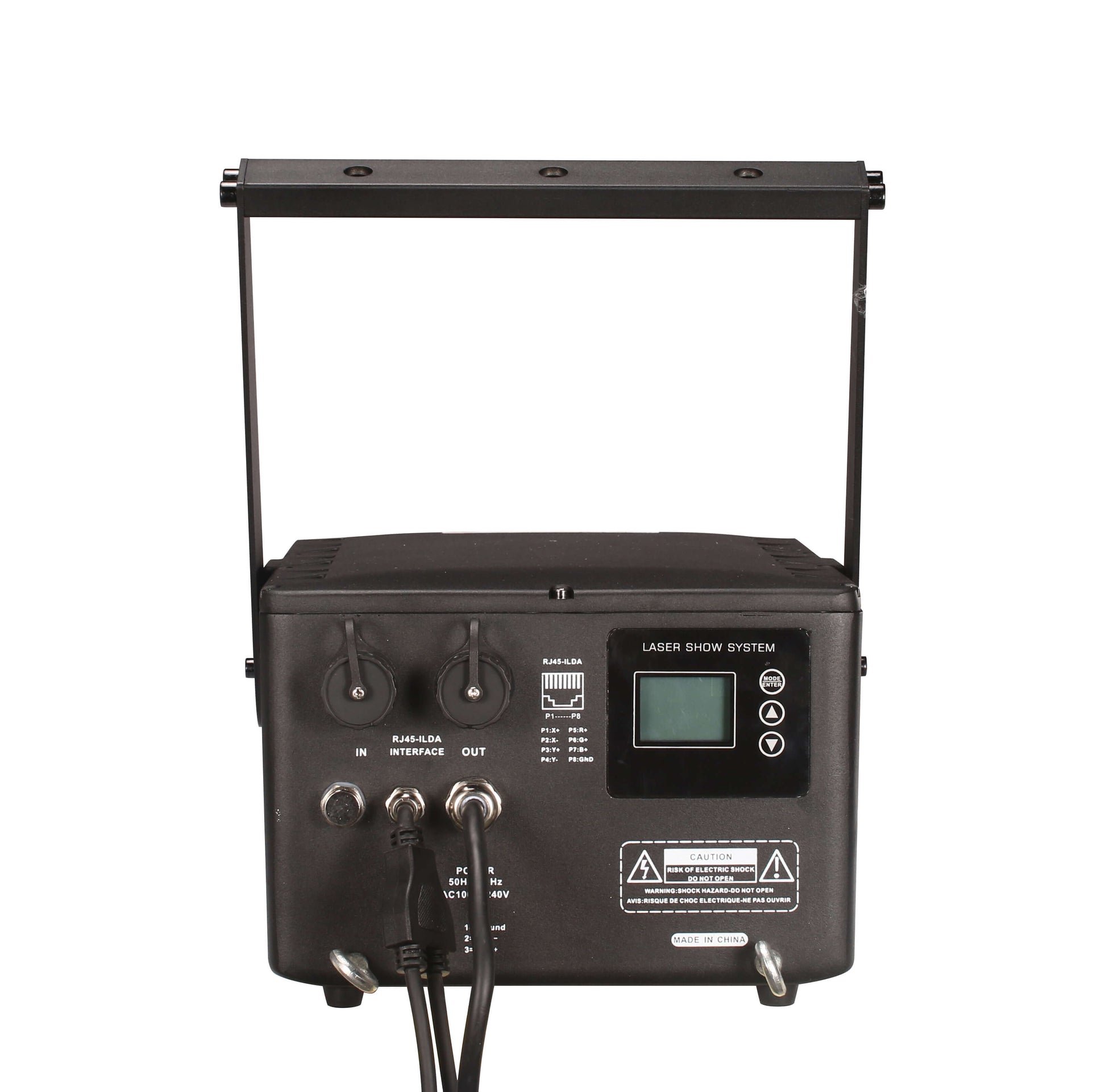

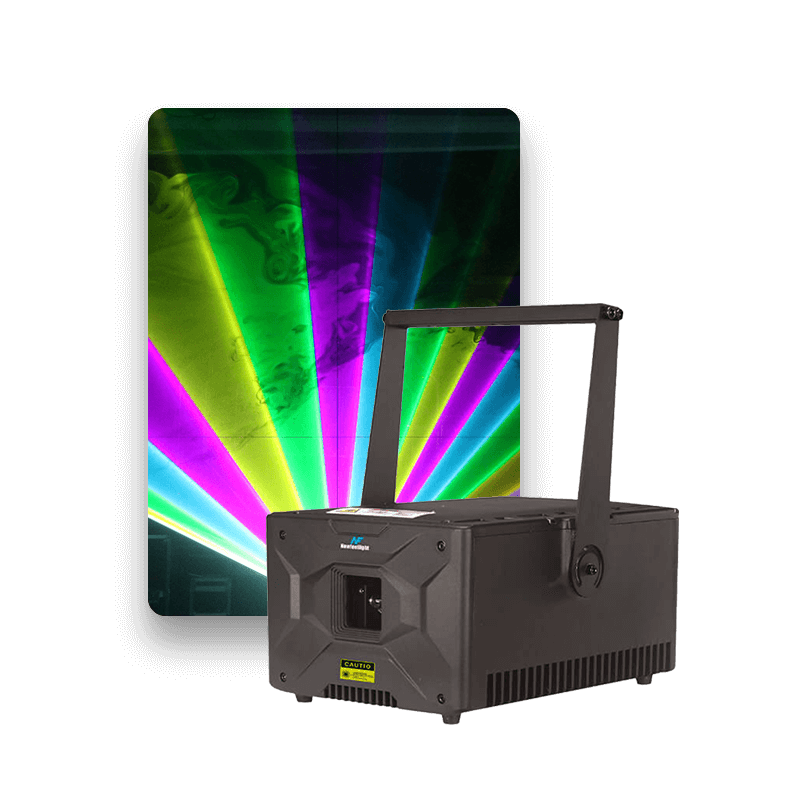

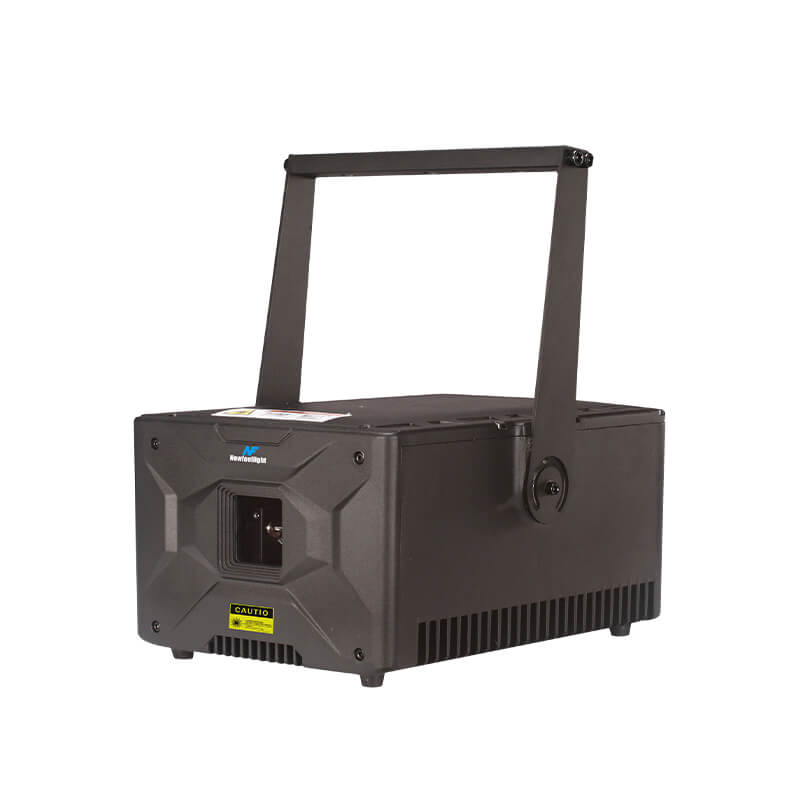

A3 Full Color 10w 20w Laser Lights Show Projector Dj Stage Lights System For Sale
Model Number:NF-A3
10-20W of RGB Full-Color Laser Lights
25-40KPPS High Speed Scanning
High Power Laser Beams Cooling System
Request a Quote

New Feel Lighting
A3 Full Color 10w 20w Laser Lights
watch viedo
Full-Color RGB Stage Laser System
The Newfeel A3 Series laser animations is a full-color RGB stage laser lights system . It is a great laser projector for stage lights designers as well as special A3 Series companies, who want to integrate lasers, into any multimedia setup.
A3 Series Auto-Mode Control
Full color RGB stage lights, with analog modulation;High speed scanning system for beam effects dj lights, graphics, logos and text ;Control via network, DMX, ArtNET, SMPTE timecode, and auto-mode.

Sturdy and Replaceable Changeable Housing
The A3 series outdoor laser lights are also equipped with a high-speed optical scanning system, so they can project beautiful light beams and liquid sky effects, as well as laser graphics, text and logos.
Strong Protection Grade Casing
Small size, compact structure, light weight, easy to install; including all cables and safety accessories.Built into a rugged, weatherproof enclosure, the laser lights system is ideal for permanent installations and mobile activities.


LANDMARK 3D PROJECTIONS LASER LIGHT SHOW
At present, it has been widely used in urban laser lights projects, landmark outdoor laser floodlights, residential laser projects, laser water curtain projects, etc. The PRO's rainproof design can be fixed for long-term use in outdoor laser show environments. The built-in thermostat module eliminates the need for additional heating or cooling equipment for outdoor laser projectors.
THE HIGH POWERED LASER COOLING SYSTEM
It can work in an ambient temperature of minus 20 degrees to plus 40 degrees and has independent over-temperature protection, you no longer need to worry about the delicate laser being damaged due to overheating. The entire cooling system is digitally controlled by the MCU. If the internal temperature of the outdoor laser lights reaches the normal range, the cooling system will automatically run at a reduced speed.

Specifications
Download Catalogue
Power supply
AC110/220V, 50-60Hz±10%
Rated power
max 800W
Laser power
10-20W
Laser modulated signal
analog or TTL modulation
Type of laser
imported semiconductor solid-state laser
Beam diameter at the aperture
<10mm
Beam divergence
<1.3mrad
Laser wavelength
red 638±5nm, green 520±5nm, blue 450±5nm
Scanning system
25-40KPPS high speed scanning
Control mode
international standard ILDA control /DMX512 signal control /self-walk/master-slave
Control interface
international ILDA DB25 interface, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Safety function
one beam protection, no signal to close the light, etc
Suitable places
big show,dacing hall, club, Bar and other enterntainment venues
Frequently Asked Question
Q: How can I get the software in order to create new designs?
Q: Will the A3 water projectors beam show on the water surface at night? For instance, we are doing a boat parade and I think it would be cool to look like fish in the water.
Q: Hi. A3 high powered laser projector laser read ilda pattern?
Q: Can you set the A3 outdoor light projector to repeat one animation over and over again?
Newfeel animation laser factory
If you want to see more effects of this stage laser light, please check our YouTube video channel, or contact us directly.
