20W RGB IP66 Outdoor Animation Laser Projector for Professional Laser Shows
Model Number：N5
● 20W RGB High-Performance Laser Output delivers vivid full-color laser effects with advanced semiconductor laser modules, ideal for professional laser shows, architectural lighting, stage performances, and outdoor entertainment applications.
● Ultra-Sharp Beam Quality & Smooth Animation Performance uses optimized optical design with less than 1.2mrad beam divergence and 30KPPS high-speed scanning to create clear graphics, sharp beams, and stable animation projection.
● IP66 Outdoor Protection & Touring-Grade Housing features a durable die-cast aluminum structure designed for reliable operation in outdoor environments, protecting the system from dust, rain, and harsh weather conditions.
● Professional Animation & Graphic Projection supports complex graphics, animations, text, abstract patterns, and custom laser logos for creative laser shows, building projection, and visual displays.
● RGB Color & Graphic Brightness Control allows precise adjustment of red, green, and blue intensity, color gradients, and individual graphic brightness for customized laser effects and detailed visual presentations.
● Optional Pangolin FB4 Integration provides advanced laser programming, network control, and professional management for laser shows, animations, graphics, and logo projection.
● ILDA, DMX512 & Multi-Control Compatibility supports ILDA, DMX512, auto-run, and master-slave modes, integrating with Pangolin laser software and professional controllers such as Tiger, Pearl, and MA systems.
Request a Quote
New Feel Lighting

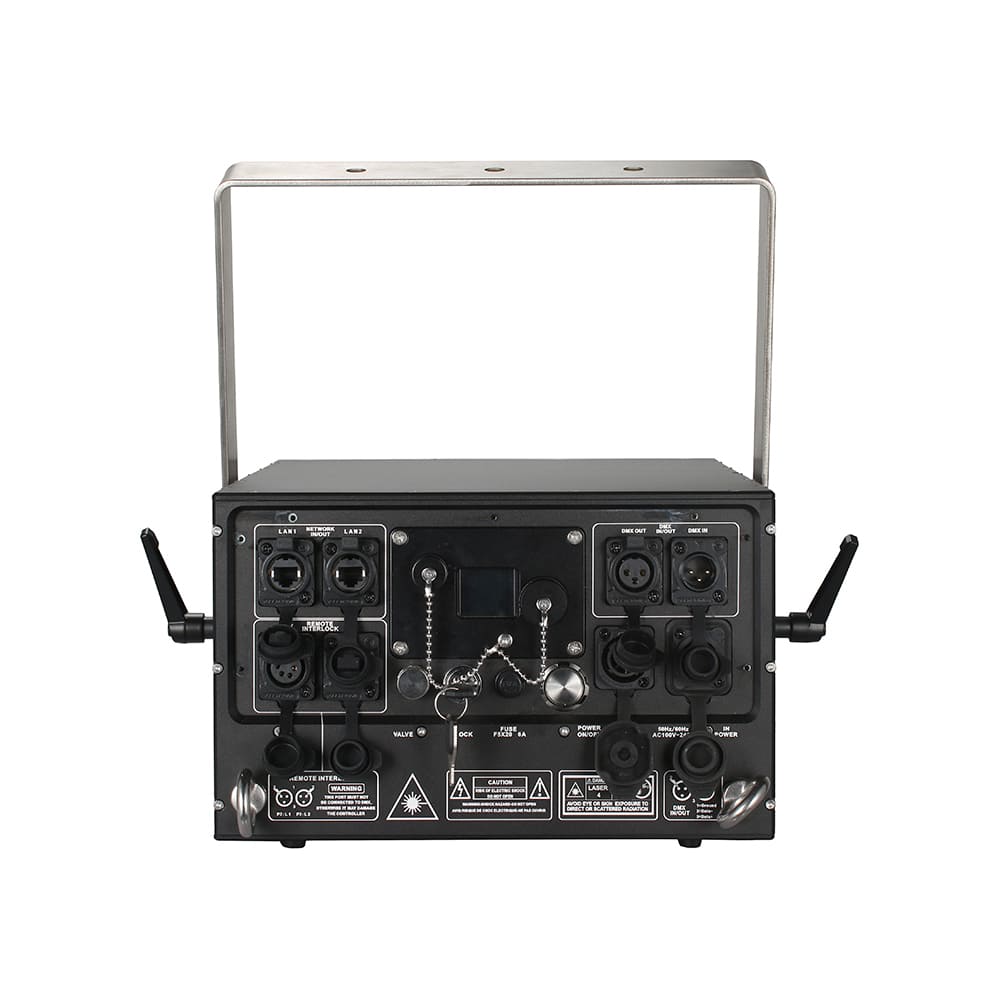

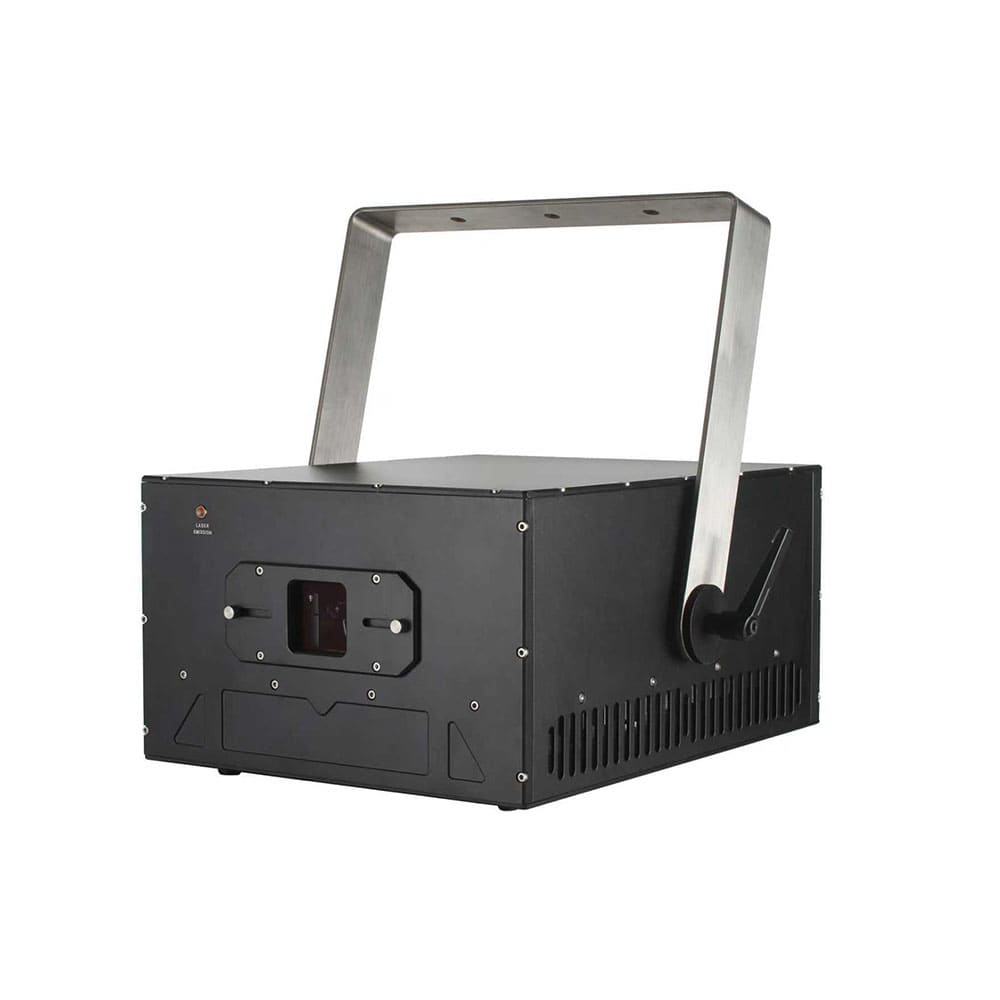

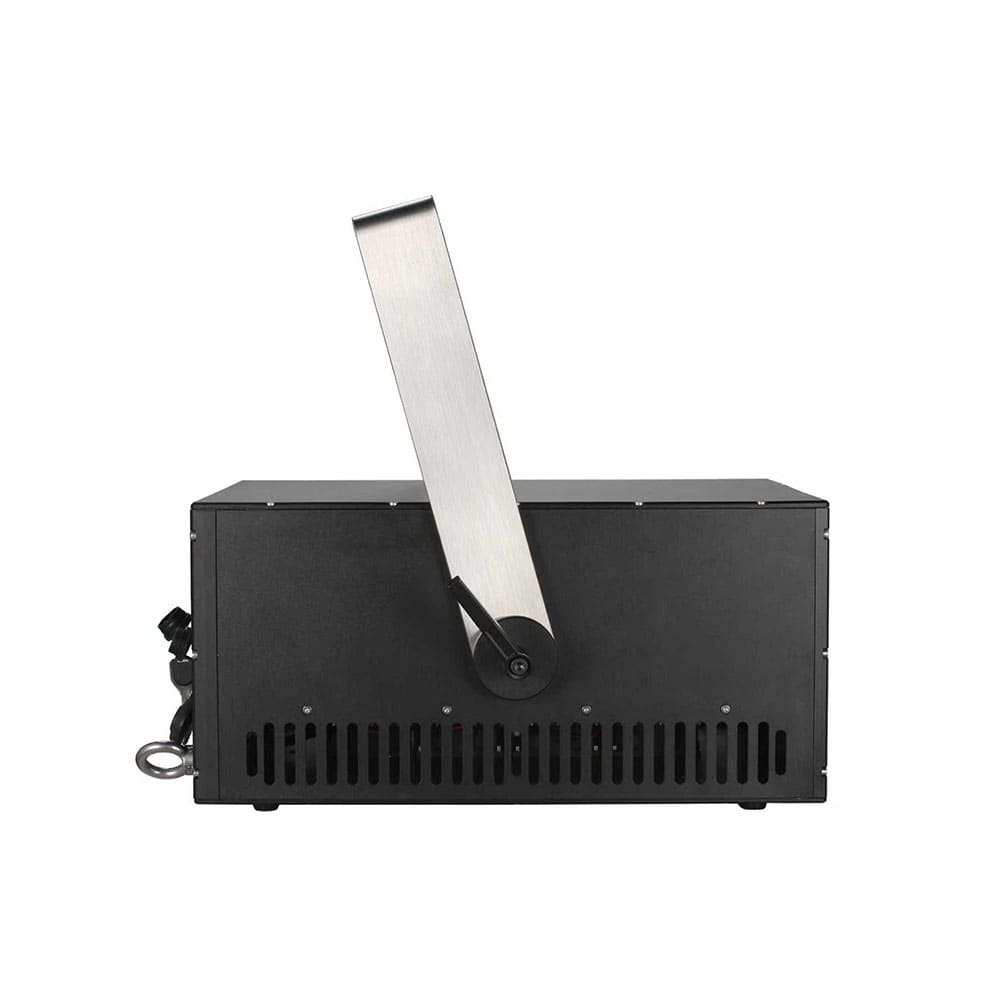

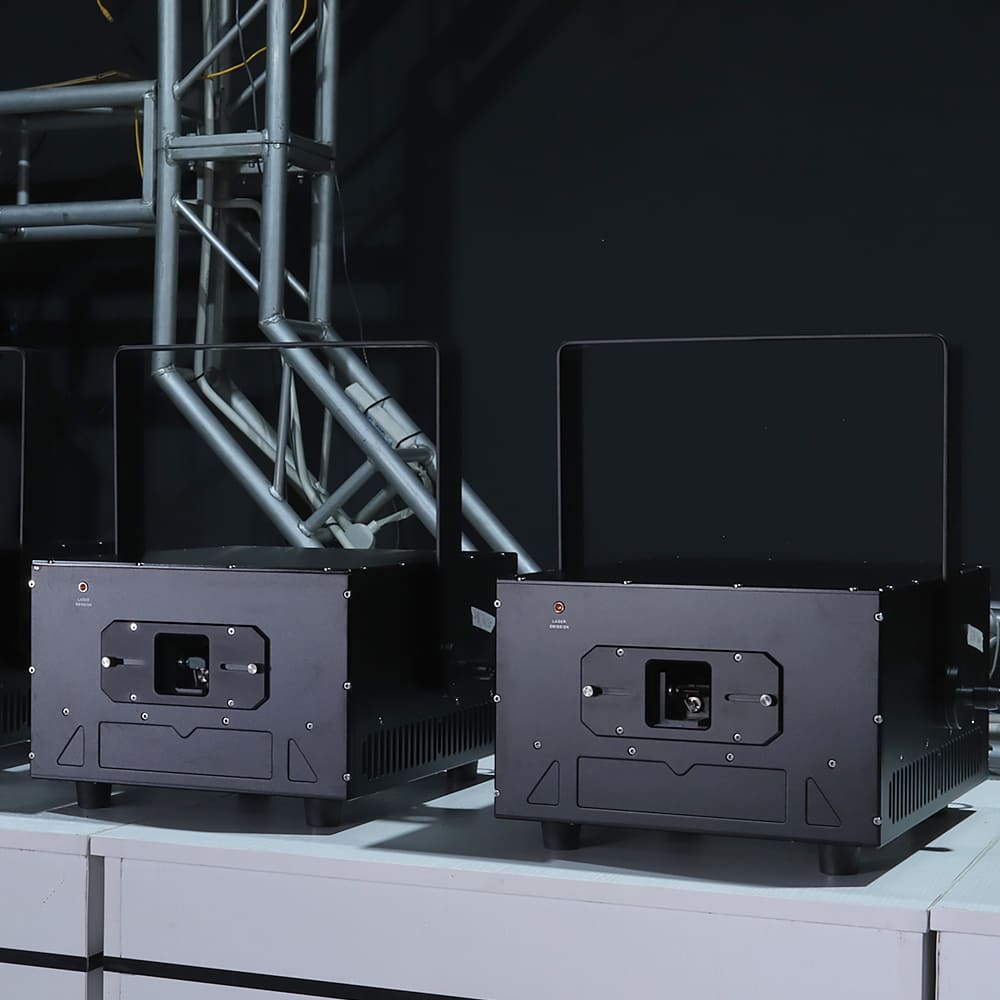

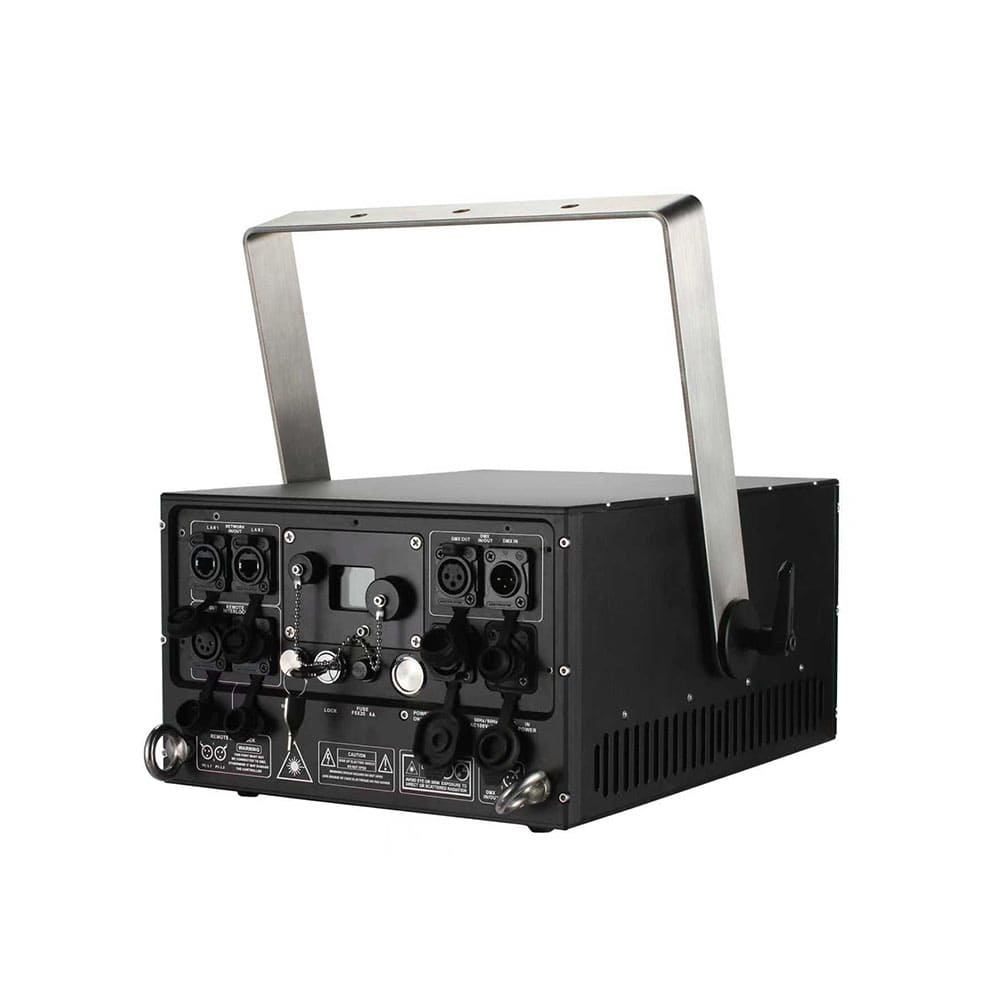

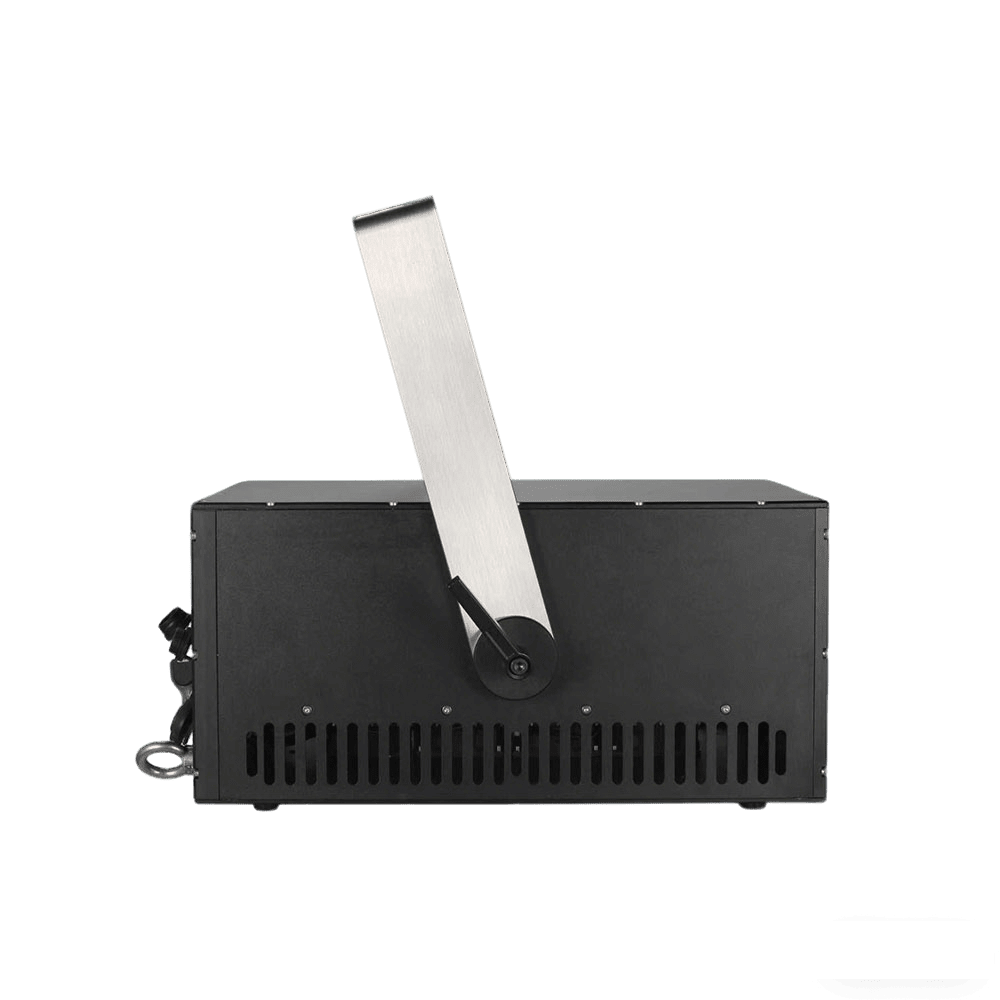

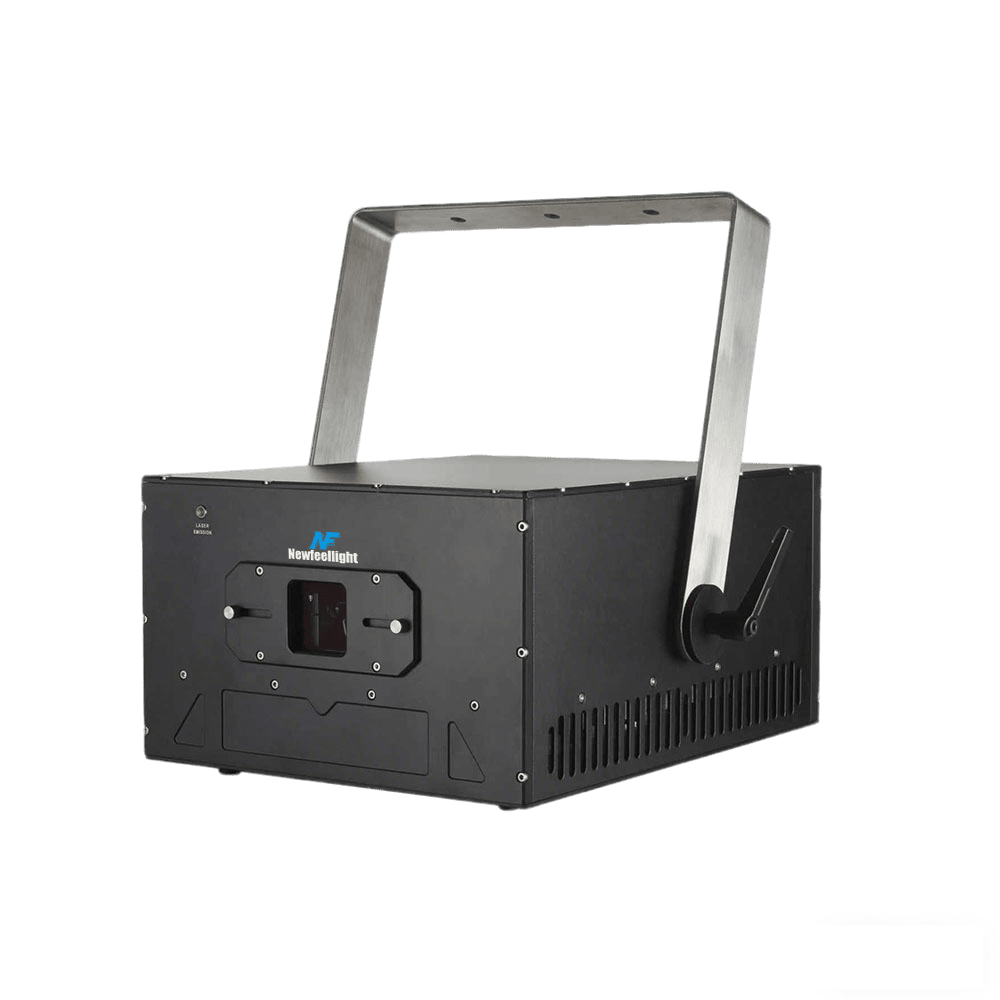

N5 20W RGB Outdoor Laser Projector
watch video
20W RGB Professional Laser Output with Ultra-Sharp Beam
Equipped with advanced semiconductor laser modules and Japanese laser diodes, this 20W RGB outdoor laser projector delivers powerful color output with excellent beam quality.
Featuring R6W/638nm, G6W/520nm, and B8W/455nm laser sources, it produces bright RGB colors and highly focused beams with a beam divergence of less than 1.2mrad, maintaining sharp and clear projection even over long distances.
Smooth Animation & Complex Graphic Projection
Designed for professional laser shows, this projector supports dynamic animations, graphics, text, abstract patterns, and custom laser logos.
The 30KPPS high-speed scanning system ensures smooth movement, clear graphic edges, and stable animation effects for stage performances, outdoor events, architectural lighting, and entertainment applications.
Flexible Control Options with Pangolin FB4 Optional
The 20W RGB laser projector offers multiple control solutions to meet different project requirements.
It supports ILDA, DMX512, auto-run, and master-slave modes. An optional built-in original Pangolin FB4 control system allows professional users to create customized laser beams, graphics, text, animations, abstract patterns, and logo projections.
Advanced RGB Color & Brightness Adjustment
With professional DMX control and built-in SD card playback options, users can customize laser effects with flexible color and brightness settings.
The system supports RGB color adjustment, color gradients, and individual graphic brightness control, providing more precise control for different venues and creative laser designs.
Intelligent ETC Cooling System for Long-Term Operation
The integrated ETC thermal management system provides efficient heat dissipation and improves system stability during extended operation.
The optimized cooling design helps maintain reliable laser output performance while supporting complex animations and long-duration laser shows.

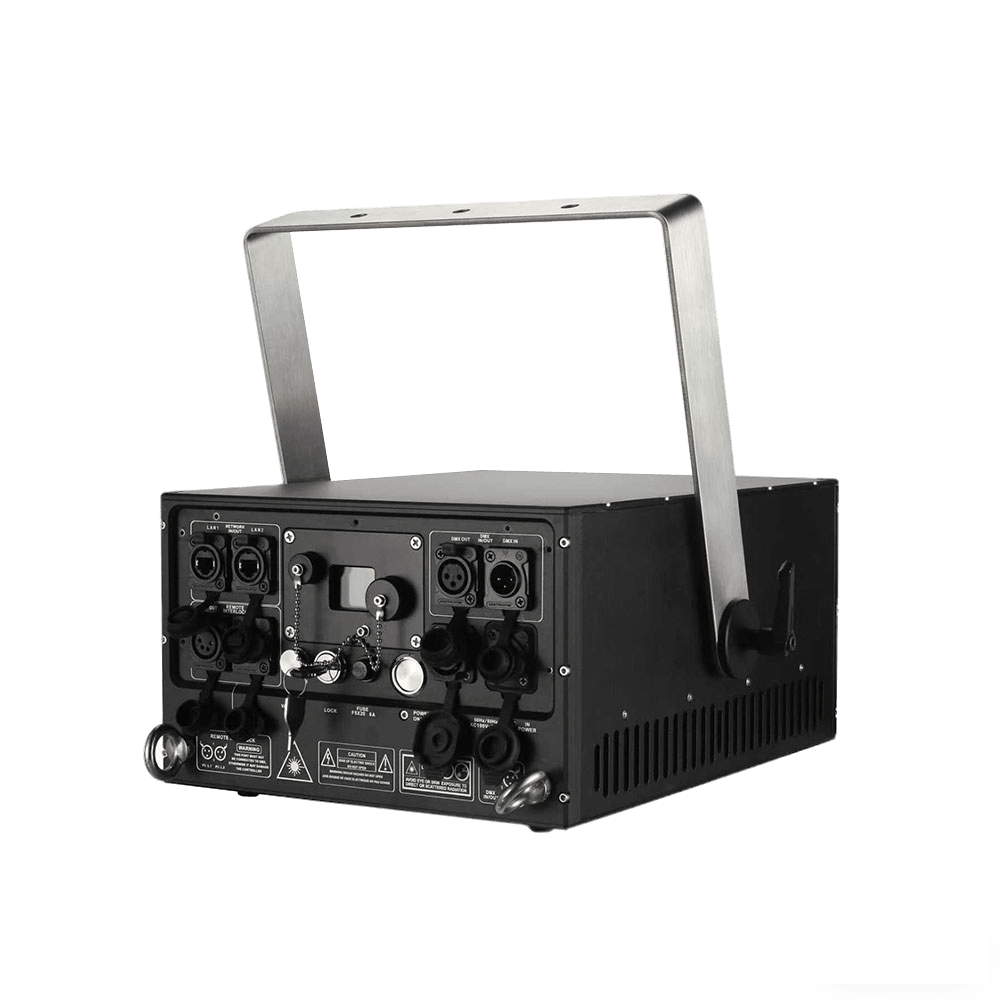

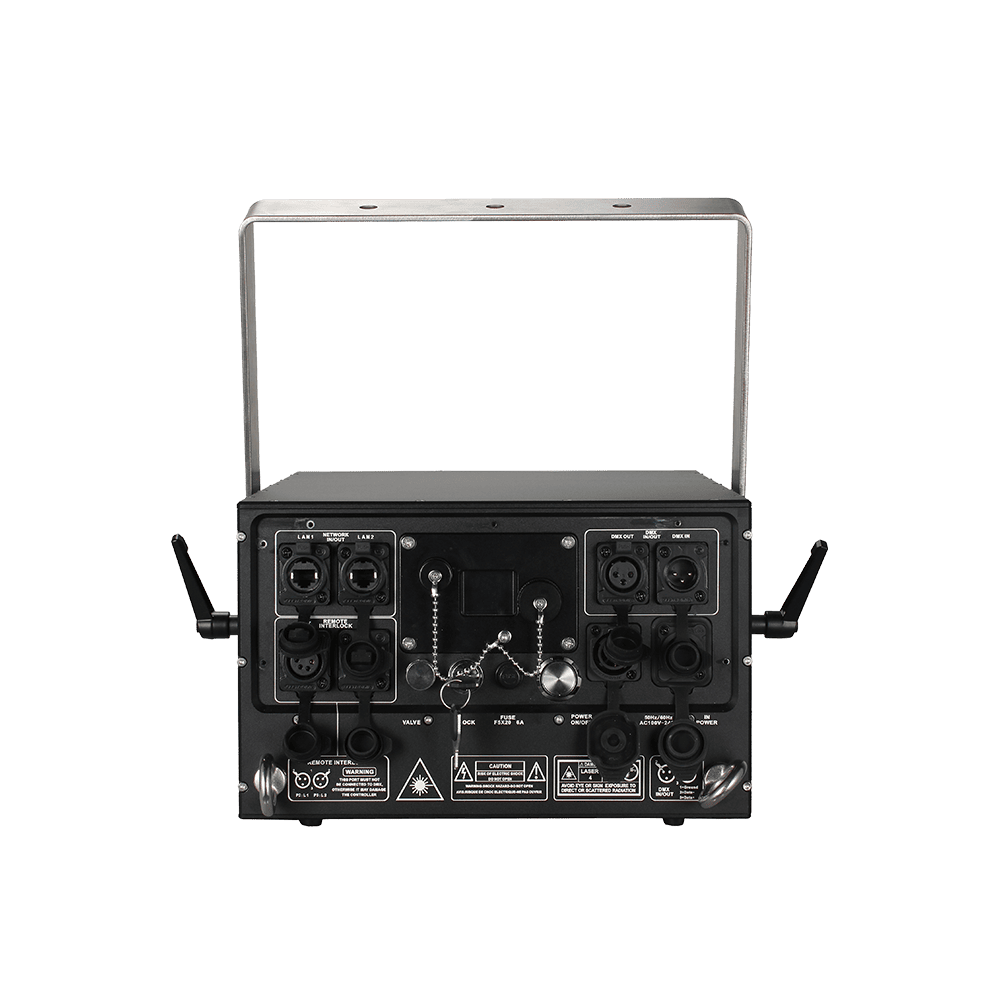

Professional Laser Safety & System Integration
Designed with professional laser safety features, the projector includes key safety functions such as beam protection and no-signal blackout.

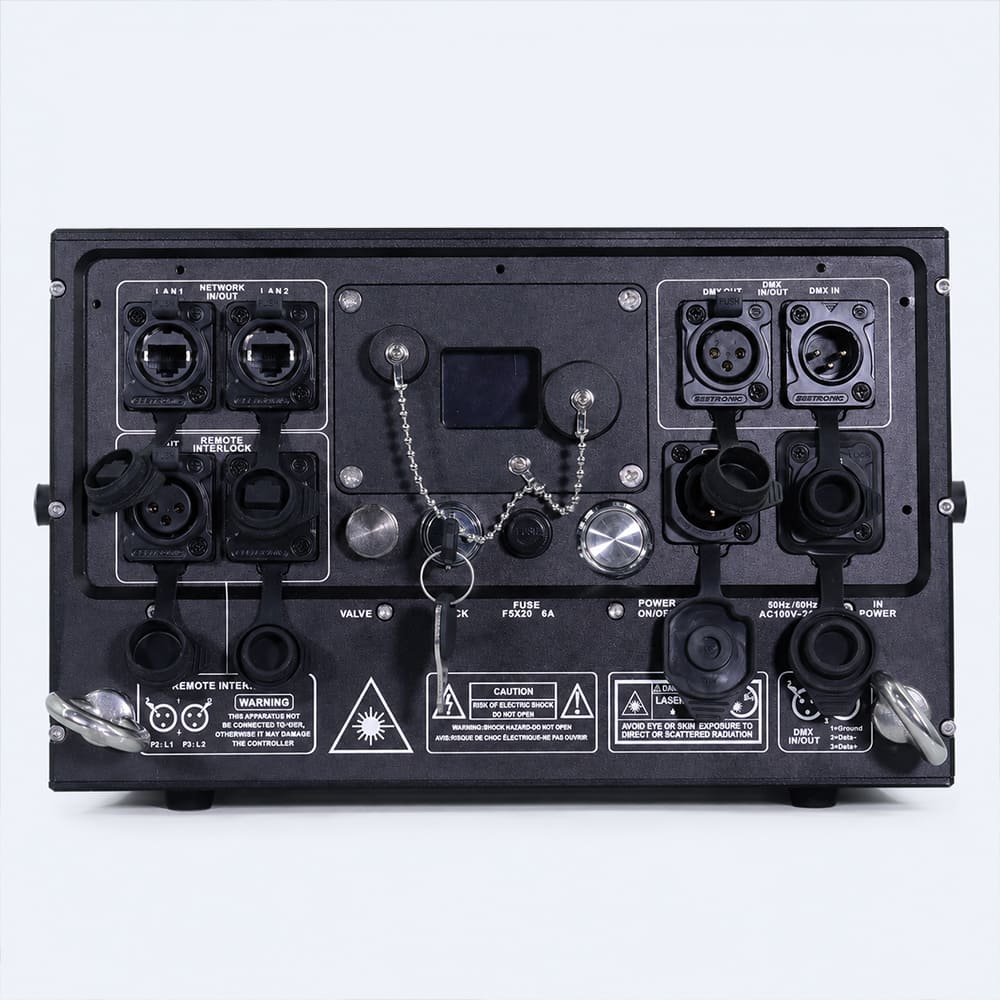

It supports integration with professional lighting systems and controllers, including Pangolin laser software, Tiger, Pearl, and MA controllers. The integrated network switch design provides flexible system connectivity for professional applications.
Specifications
Download Catalogue
Laser Power
RGB 20W
Laser Source
Imported Semiconductor Solid-State Laser
Laser Wavelength
R6W/638nm G6W/520nm B8W/455nm
Modulation
Analog Modulation
Scanning System
30KPPS High-Speed Galvanometer Scanner
Beam Size
less than 8*6mm
Beam Divergence
less than 1.2mrad
Color & Brightness Control
Linear RGB Color Adjustment & Individual Graphic Brightness Control
Optional Control System
Built-in Pangolin FB4 Available
Control Modes
ILDA / DMX512 / Auto Run / Master-Slave
Software Compatibility
Compatible with Pangolin Laser Software, Tiger, Pearl, MA Controllers
Safety Functions
Beam Protection / No Signal Blackout
Protection Rating
IP66 Waterproof
Working Environment
Indoor & Outdoor
Power Supply
AC110/220V, 50-60Hz ±10%
Power Consumption
Max 350W
Housing

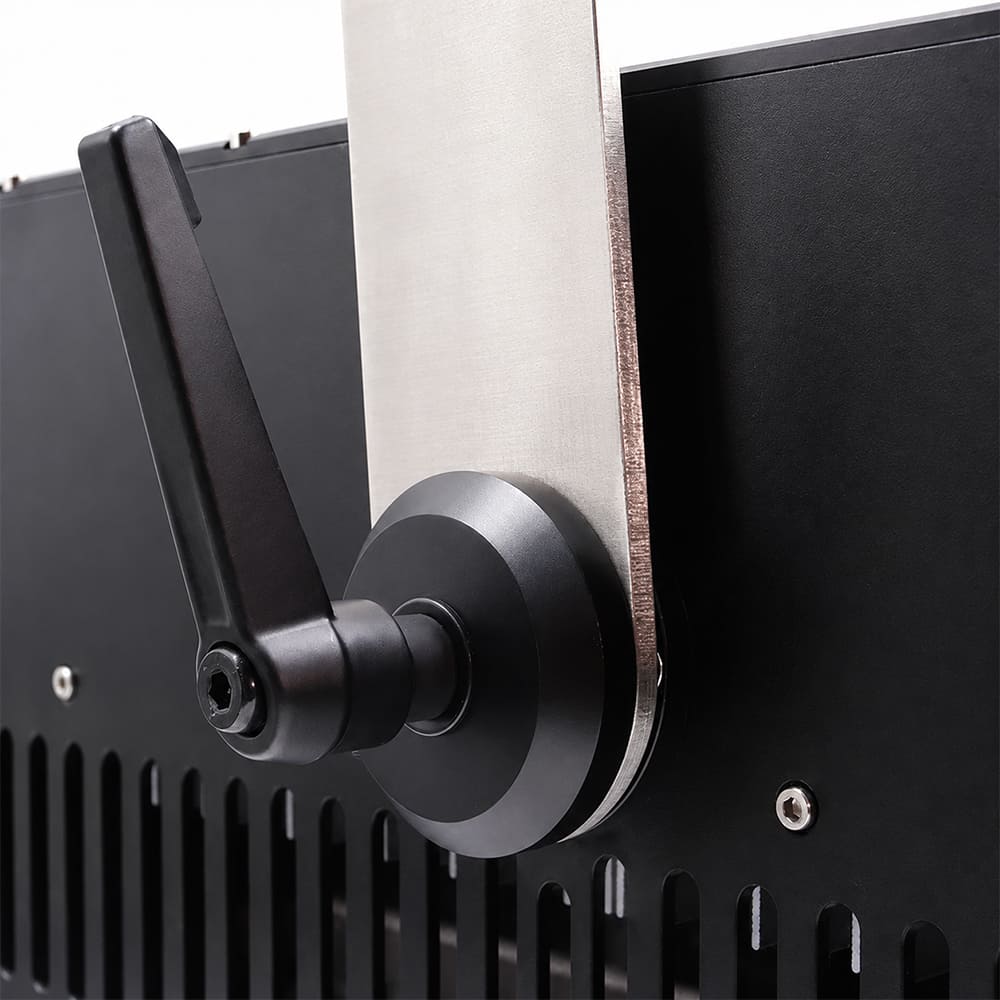

Aviation-Grade Die-Cast Aluminum Housing
Cooling System
ETC Intelligent Thermal Management System
Applications
Laser Shows / Architectural Lighting / Landmark Lighting / Outdoor Events
Packing
Carton Case
Frequently Asked Question
Q1: What applications is the 20W RGB outdoor laser projector suitable for?
Q2: Can this laser projector display custom graphics, logos, and animations?
Q3: Does the projector support Pangolin FB4 control?
Q4: What control modes does this laser projector support?
Q5: Can I adjust RGB colors and brightness of laser effects?
Q6: Is the 20W laser projector suitable for outdoor use?
Q7: How does the projector maintain stable performance during long operation?
Q8: What safety features does this laser projector include?
Q9: Is OEM/ODM customization available?
Q10: What is the difference between the FB4 version and standard versions?
