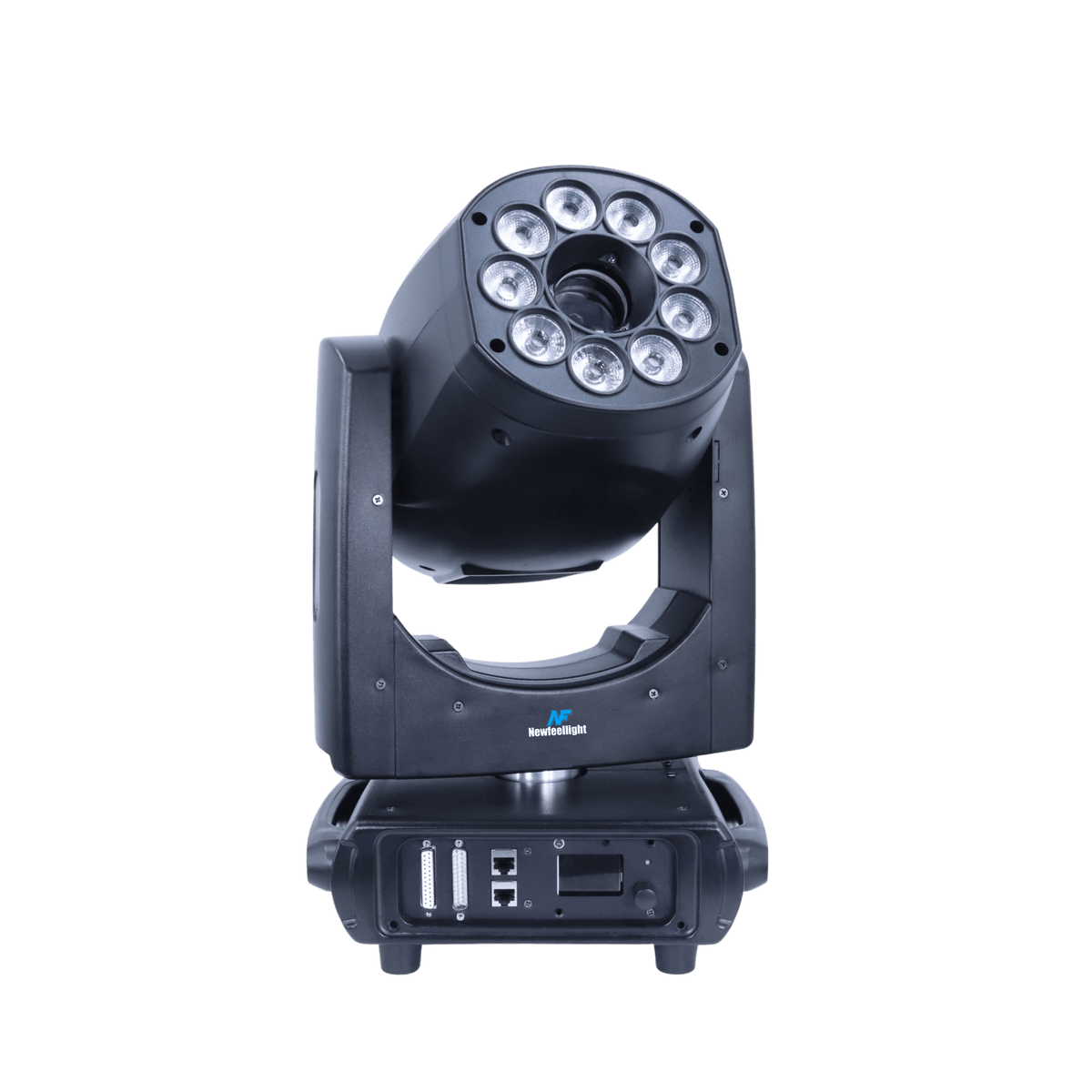

15W RGB Moving Head Laser Wash Light with ILDA DMX APP Control
Model Number:LY-Z
● 15W RGB Moving Head Laser Wash Light Combines a 15W RGB laser system with RGBW LED wash effects, giving users both sharp laser beams and colorful stage wash lighting in one moving head fixture.
● RGB 15W Laser Output Delivers strong full-color laser effects with Red 638±5nm, Green 520±5nm, and Blue 450nm laser wavelengths for beams, graphics, animations, and line effects.
● 9×4W RGBW LED Wash System Built with 9 × 4W RGBW 4-in-1 LEDs, creating rich wash lighting, background color effects, and laser + wash combination scenes for clubs, DJ shows, bars, and live stages.
● ILDA, DMX512 and APP Control Supports ILDA, DMX512, Master/Slave, Auto-run, Sound-activated, and APP control, making it suitable for both professional laser programming and easier daily stage operation.
● 540° / 270° Moving Head Movement Features 540° pan and 270° tilt with 16-bit precision, allowing dynamic beam movement, wide stage coverage, aerial laser effects, and active moving head performance.
● 20KPPS Galvo Scanning with Built-In Effects Uses a 20KPPS projection system with ±20° scanning angle, supporting various beams, complex graphics, hundreds of built-in animations, and line effects.
● Professional Indoor Stage Control Supports 33/50 DMX channels, TTL/analog modulation, independent RGB dimming, LCD display, Chinese/English menu switching, and normal/inverted display modes for clubs, DJ stages, KTV rooms, bars, theaters, and rental events.
Request a Quote
New Feel Lighting
15w rgb moving head laser wash light
watch video
15W RGB Moving Head Laser Wash Light
The 15W RGB Moving Head Laser Wash Light combines a high-power RGB laser system with LED wash effects in one moving head fixture.
It is designed for clubs, DJ shows, live stages, bars, event venues, rental companies, and professional stage lighting projects that need both sharp laser beams and colorful wash lighting.
RGB 15W Laser Output for Strong Visual Impact
Built with RGB 15W laser power, this fixture delivers bright red, green, blue, and full-color laser effects.
The laser wavelengths include red 638±5nm, green 520±5nm, and blue 450±5nm, creating vivid beam effects, graphics, animations, and line effects for professional stage shows.
9×4W RGBW LED Wash Effects
In addition to the laser system, the fixture includes 9 × 4W RGBW 4-in-1 LED aperture light sources.
This allows it to create colorful wash effects, stage background lighting, atmosphere lighting, and beam + wash combination effects, giving buyers more value than a standard moving head laser light.
20KPPS Galvo Scanning with Built-In Patterns
The projection system uses 20KPPS galvo scanning with a ±20° scanning angle and linear distortion below 2%.
It supports various beams, complex graphics, hundreds of built-in animations, and line effects, making it suitable for both automatic effects and professional laser show control.
ILDA, DMX512 and APP Control
The fixture supports ILDA, DMX512, Master/Slave, Auto-run, Sound-activated, and “Lingdong Zhihui” APP control. ILDA control allows professional custom laser show programming, DMX512 is suitable for stage lighting consoles, and APP control provides easier operation for DJs, clubs, and event users.
Professional Stage Control and Indoor Applications
With 33/50 control channels, TTL/analog modulation, independent RGB dimming, LCD display, Chinese/English menu switching, and normal/inverted display modes, this fixture is built for professional indoor stage lighting applications. It is suitable for clubs, DJ stages, KTV rooms, bars, live events, small theaters, and rental lighting projects.
Specifications
Download Catalogue
Product Name
15W RGB Moving Head Laser Wash Light
Laser Power
RGB 15W
Laser Wavelength
Red 638±5nm / Green 520±5nm / Blue 450nm
Laser Modulation
TTL / Analog Modulation, Independent RGB Dimming：LED Wash Source 9 × 4W RGBW 4-in-1 LEDs
Control Modes
ILDA / DMX512 / Master-Slave / Auto / Sound / APP
Pan / Tilt
540° Pan / 270° Tilt, 16-bit
DMX Channels
33 / 50 Channels
Scanning System
20KPPS Galvo Scanning
Scanning Angle
±20°
Built-in Effects
Beams, Graphics, Animations and Line Effects
Display
LCD Screen, Chinese / English Menu
Display
LCD Display
Power Supply
AC100–240V, 50/60Hz
Rated Power
≤180W
Environment
Indoor Use
Applications
Nightclubs,DJ shows,Bars,KTV rooms,Indoor stages,Live performances,Wedding receptions,Party rooms,Entertainment venues and Professional laser shows
Frequently Asked Question
Q1: What is this product?
Q2: What control modes does it support?
Q3: Can it create custom laser shows?
Q4: Does it have LED wash effects?
Q5: Is it suitable for clubs and DJ stages?
Q6: Is this model for indoor or outdoor use?
Q7: Do you support OEM/ODM customization?
Q8: Can I become your distributor?
15w rgb moving head laser wash light
For a closer look at the system’s real-world performance—sharp beam quality, smooth animations - we invite you to explore our YouTube channel.
