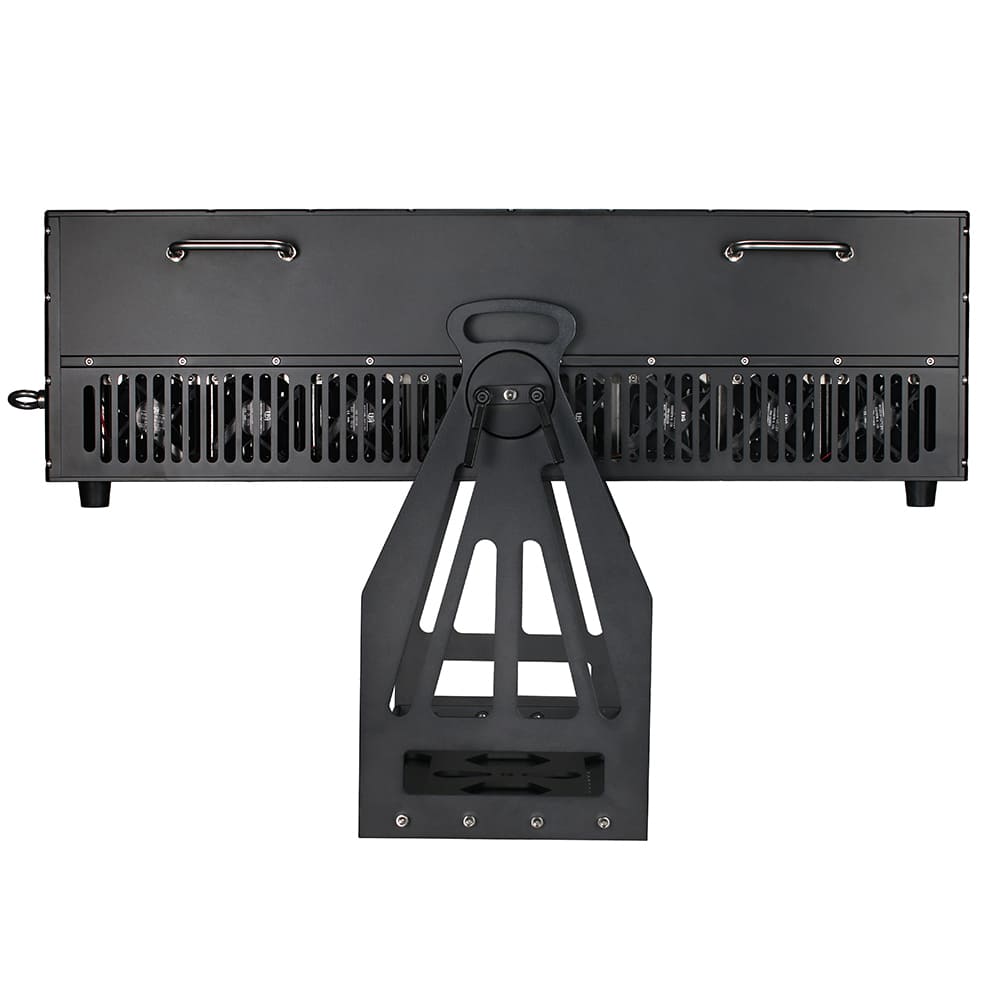

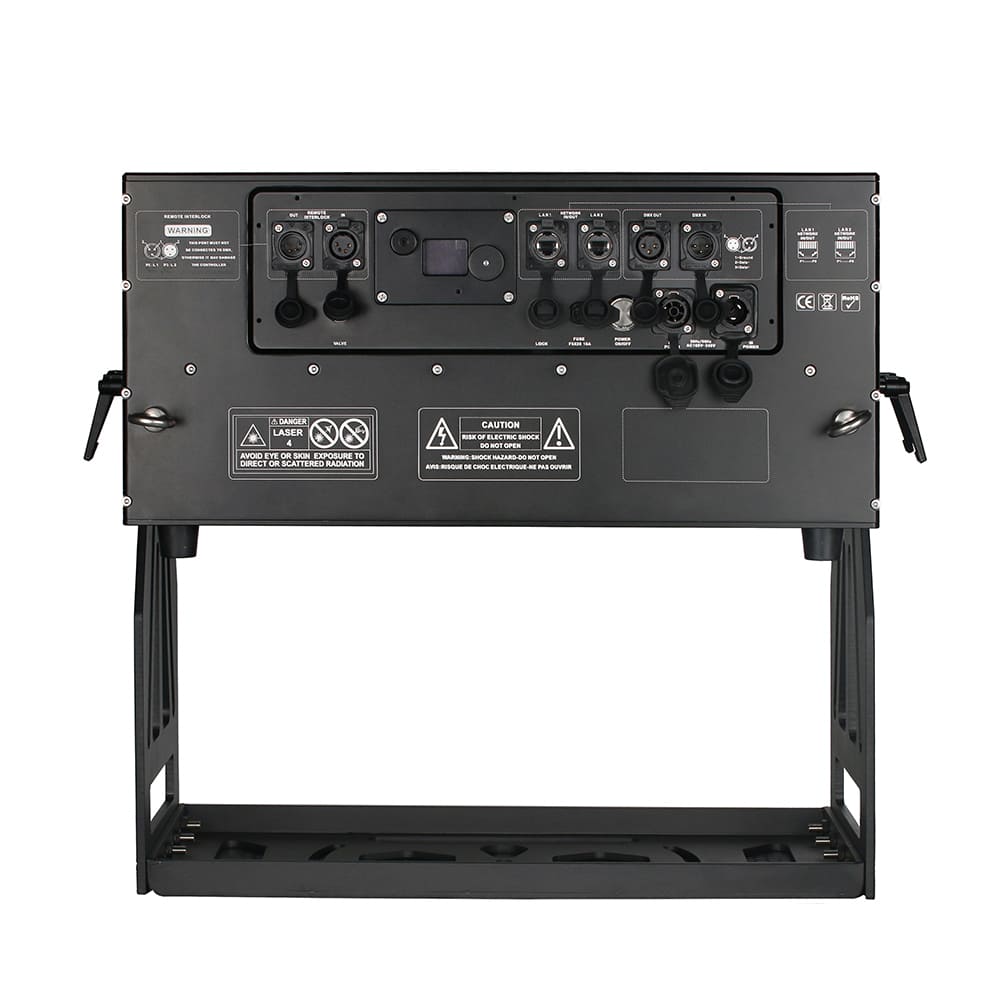

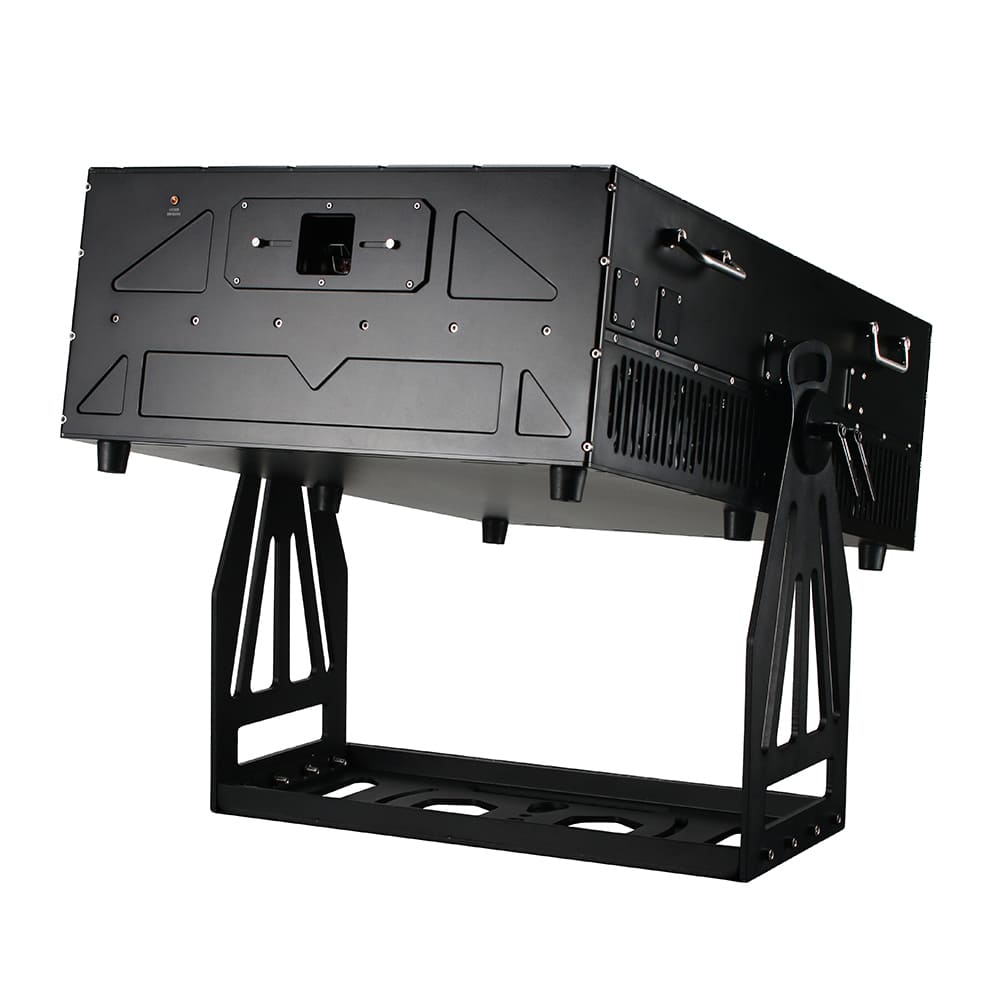

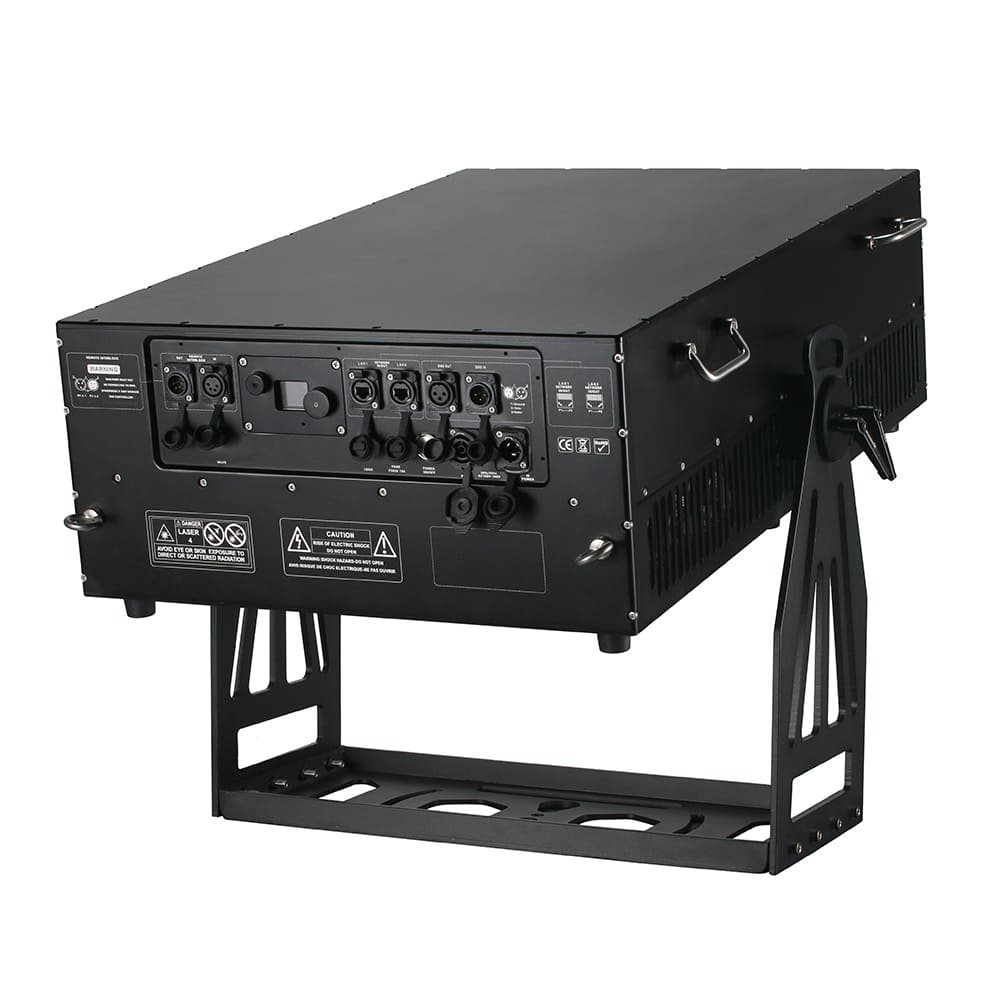

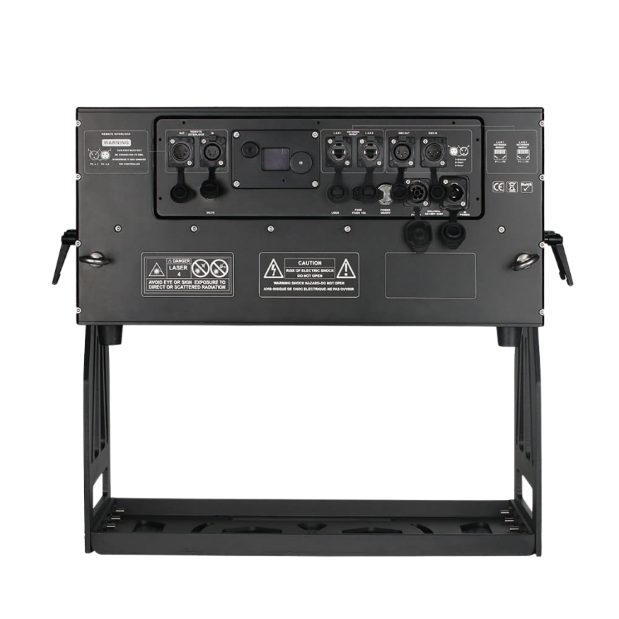

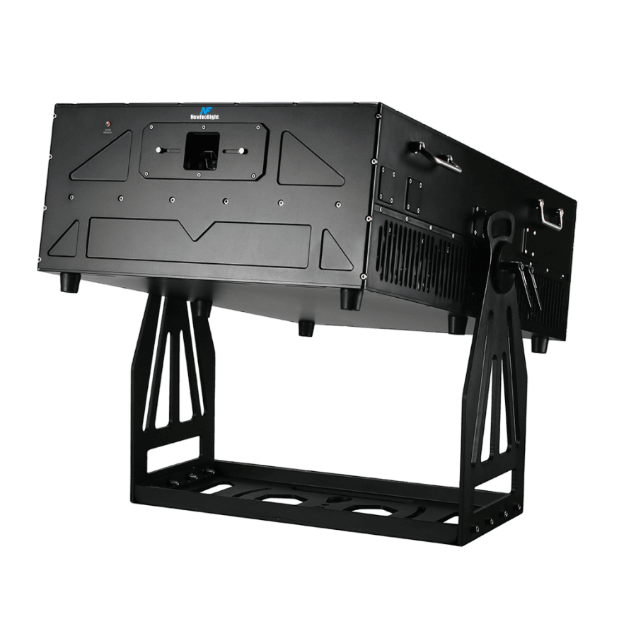

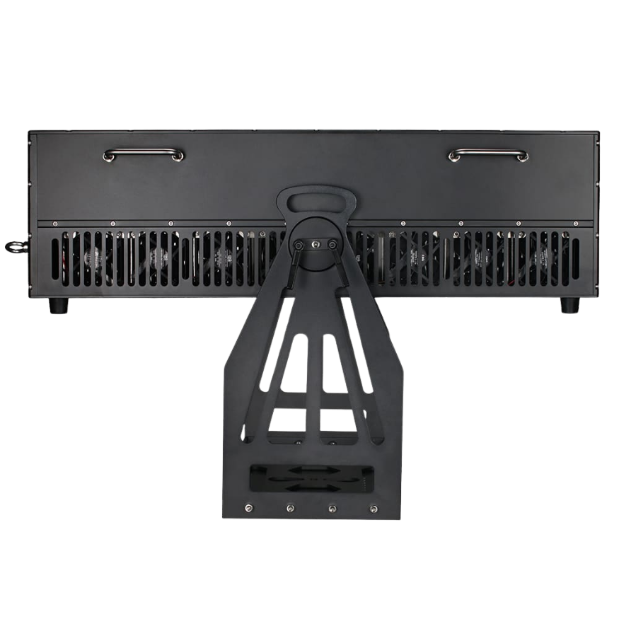

100W RGB Outdoor Laser Projector for Landmark & Building Lighting

Model Number：N8
● 100W High-Power RGB Laser Output delivers intense full-color laser beams for large-scale outdoor laser shows, landmark buildings, theme parks, mountain projection, and cultural tourism lighting projects.
● Long-Distance Outdoor Projection Performance supports a recommended visual projection distance of 200–500m, a typical effective range of 100–800m, and a maximum visible distance of over 1 km under ideal conditions.
● Wide-Area Project Coverage provides a recommended advertised coverage of up to approximately 50,000㎡ per unit, making it suitable for large façades, scenic landmarks, and outdoor cultural tourism projects.
● Ultra-Low Beam Divergence for Strong Visual Impact features less than 1.2mrad beam divergence and less than 14 × 9mm beam size at aperture, helping reduce beam expansion during long-distance projection.
● RGB Analog Modulation for Smooth Color Control supports smooth dimming, rich RGB color mixing, multiple brightness levels, and natural color transitions for building outlines, large graphics, logos, and outdoor laser show effects.
● 15–20KPPS Large-Aperture Scanning System is optimized for high-power beams, architectural outlines, logos, simple text, and large low-point-count graphics used in building and landmark projection.
● IP65 Outdoor Protection for Engineering Projects protects the projector against dust and water jets, making it suitable for architectural landmarks, scenic areas, cultural tourism lighting, and outdoor shows.
● Professional ILDA & DMX512 Control Compatibility supports ILDA software, DMX512, auto-run, and master-slave operation, with compatibility for Pangolin laser software and professional lighting control systems.
● TEC Cooling & Forced-Air Cooling System helps maintain stable working temperature, improving continuous operation reliability and color consistency during long outdoor projects.
● Professional Safety & Flight Case Protection includes scan-failure protection, no-signal blackout, and flight case packaging for international transport, rental operation, project turnover, and equipment storage.
Request a Quote
OEM&ODM
Professional production
Customer Services
24/7 support team
index banner
New Feel Lighting
N8-100W outdoor laser show projector
watch video
100W RGB High-Power Outdoor Laser Projection
This 100W RGB Outdoor Laser Projector delivers powerful full-color laser output for large-scale outdoor laser shows, landmark buildings, theme parks, mountain projection, and cultural tourism lighting projects. It is designed for long-distance visibility and wide-area projection.
Long-Distance Projection for Large Outdoor Projects
With a recommended visual projection distance of 200–500m, a typical effective projection range of 100–800m, and a maximum visible distance of over 1 km under ideal conditions, this projector is suitable for large buildings, hotel façades, scenic landmarks, mountains, and outdoor show environments.
laser projector
Sharp Beam Performance with Low Divergence
The projector features a beam size of less than 14 * 9mm and less than 1.2mrad beam divergence, helping reduce beam expansion during long-distance projection and maintain stronger visual impact across large outdoor spaces.
RGB Analog Modulation for Smooth Color Control
Analog modulation supports smooth RGB dimming, rich color mixing, multi-level brightness control, and natural color transitions, making it suitable for building outlines, large graphics, logos, text, and outdoor laser show effects.
IP65 outdoor laser projector
100W RGB High-Power Outdoor Laser Projection
This 100W RGB Outdoor Laser Projector delivers powerful full-color laser output for large-scale outdoor laser shows, landmark buildings, theme parks, mountain projection, and cultural tourism lighting projects. It is designed for long-distance visibility and wide-area projection.
Long-Distance Projection for Large Outdoor Projects
With a recommended visual projection distance of 200–500m, a typical effective projection range of 100–800m, and a maximum visible distance of over 1 km under ideal conditions, this projector is suitable for large buildings, hotel façades, scenic landmarks, mountains, and outdoor show environments.
Sharp Beam Performance with Low Divergence
The projector features a beam size of less than 14 × 9mm and less than 1.2mrad beam divergence, helping reduce beam expansion during long-distance projection and maintain stronger visual impact across large outdoor spaces.
RGB Analog Modulation for Smooth Color Control
Analog modulation supports smooth RGB dimming, rich color mixing, multi-level brightness control, and natural color transitions, making it suitable for building outlines, large graphics, logos, text, and outdoor laser show effects.

15–20KPPS Large-Aperture Scanning System
The 15–20KPPS large-aperture galvanometer scanner is optimized for high-power laser beams, architectural outlines, logos, simple text, and large low-point-count graphics, making it ideal for landmark and building projection applications.
building laser projection
Event Lighting
15–20KPPS Large-Aperture Scanning System
The 15–20KPPS large-aperture galvanometer scanner is optimized for high-power laser beams, architectural outlines, logos, simple text, and large low-point-count graphics, making it ideal for landmark and building projection applications.
high powered laser
outdoor laser light show
IP65 Outdoor Protection for Engineering Use
With IP65 protection, the projector is built for outdoor environments such as cultural tourism lighting, architectural landmarks, scenic areas, and outdoor performances, offering protection against dust and water jets.
Professional Control & Reliable Project Operation
Supports ILDA, DMX512, auto-run, and master-slave control modes, with compatibility for Pangolin laser software and professional lighting controllers such as Tiger, Pearl, and MA systems. The flight case packaging also supports international transport, rental use, and project turnover.
Pangolin compatible laser projector


Specifications
Download Catalogue
Product Type
100W RGB Outdoor Laser Projector
Laser Power
RGB 100W
Power Supply
AC110/220V, 50–60Hz ±10%
Rated Power
Max 1100W
Laser Source
Imported Semiconductor Solid-State Laser2(Diode import from Japan)
Laser Modulation
Analog Modulation
Laser Wavelength
R26W/636nm G35W/525nm B40W/455nm
Beam Size at Aperture
less than 14 * 9mm
Beam Divergence
less than 1.2mrad
Scanning System
15–20KPPS High-Speed Scanning
Control Modes
ILDA / DMX512 / Auto Run / Master-Slave
Control Interface
International ILDA DB25 / International DMX512
Software & Controller
Compatibility Compatible with Pangolin Laser Software, Tiger, Pearl, MA Controllers
Safety Functions
One Beam Protection / No Signal Blackout
Protection Rating
IP65 Outdoor Protection
Working Environment
Indoor & Outdoor
Housing
Aerospace Die-Cast Aluminum Housing
Cooling System
TEC Cooling + Forced-Air Cooling
Suitable Applications
Landmark Buildings / Theme Parks / Dancing Halls / Clubs / Large Shows / Entertainment Venues
Packing
Flight Case
Frequently Asked Question
Q1: What is the 100W RGB Outdoor Laser Projector mainly used for?
A:
It is designed for large-scale outdoor laser shows, landmark buildings, hotel façades, scenic areas, theme parks, mountain projection, and cultural tourism lighting projects. ​
Q2: What projection distance can this 100W laser projector achieve?
Q3: How large an area can one unit cover?
A:
For commercial promotion, one unit can be advertised for up to approximately 50,000㎡ recommended coverage. Higher theoretical coverage is only suitable for simple outlines or low-density graphics. ​
Q4: Can it project logos, text, and building outlines?
A:
Yes. It is suitable for logos, text, simple graphics, building outlines, façade projection, and large low-point-count graphics. For complex text, a shorter distance and smaller scanning angle are recommended.​
Q5: Is this projector suitable for long-distance high-detail animation?
A:
It is better suited for high-power beams, architectural outlines, logos, simple text, and large low-point-count graphics. It should not be marketed as a long-distance, high-detail complex animation system.​
Q6: What control modes does it support?
A:
It supports standard ILDA, DMX512, auto-run, and master-slave control, and can connect with professional laser software and lighting control systems. ​
Q7: Is it suitable for outdoor use?
A:
Yes. The projector has IP65 outdoor protection, offering dust protection and resistance to water jets, making it suitable for outdoor shows, architectural landmarks, and cultural tourism lighting.
Q8: How does it maintain stable performance during long operation?
A:
It uses TEC cooling and forced-air cooling to help maintain stable working temperature, improving reliability and color consistency during extended operation.
Q9: What safety functions are included?
A:
The system includes scan-failure protection and no-signal blackout. If scanning stops, the signal is lost, or a hazardous stationary beam forms, the system automatically shuts down laser output.
Q10: What safety precautions are required for a 100W laser projector?
A:
A 100W projector is an extremely high-power Class 4 laser product. Projects require audience separation, scan-zone control, MPE assessment, emergency stop, physical masking, and aviation or airspace risk evaluation.
Q11: Can NewFeel provide OEM/ODM stage laser light solutions?
A:
Yes. NewFeel is a professional stage laser light factory providing OEM and ODM services for distributors, project contractors, rental companies, and laser show companies. We support logo branding, product configuration, control system options, and customized laser projector solutions for different project requirements.
