A successful outdoor laser project is not decided by wattage alone. Buyers should evaluate application, projection distance, IP65/IP66 protection, control system, installation method, sample testing and supplier technical support before placing a bulk order.
Why Outdoor Laser Projects Need a Complete Solution
For engineering companies, AV integrators, lighting designers and cultural tourism contractors, the key question is not which outdoor laser projector has the highest power. The real question is which laser system can deliver the required visual effect while matching the site, control workflow, installation structure and budget.
Choosing the wrong equipment may cause weak brightness, waterproof risk, control system mismatch, installation delays or poor custom graphic output. That is why professional outdoor laser projects should be planned as complete solutions, not simple product purchases.
Quick Selection Guide for Outdoor Laser Projects
Project type | Main requirement | Recommended direction
Outdoor wedding or small event | Atmosphere, short distance, simple effects | 5W-15W RGB laser projector
Building facade projection | Custom graphics, wall coverage, stable installation | IP65 animation laser with DMX or ILDA control
Cultural tourism project | Long-term operation, programmed playback, reliable structure | IP65/IP66 outdoor laser system with DMX, FB4 or SD card playback
Festival or concert | Stronger beams and wider coverage | 20W-100W RGB laser show system
Landmark show | Long distance and high visual impact | 50W+ custom laser solution
1. Define Project Requirements Before Choosing Equipment
Application and Environment
Start by confirming whether the project is for cultural tourism lighting, building facade projection, outdoor festivals, theme parks, landscape lighting or permanent architectural installation. Each application requires a different balance of brightness, waterproof protection and control system.
Installation Method
For wall-mounted outdoor laser lights, buyers should check product size, weight, mounting bracket, cable arrangement and maintenance access. A compact structure can reduce installation difficulty and support cleaner engineering design.
Required Visual Effect
Common effects include laser beams, custom logos, dynamic animation graphics, long linear motion effects and scheduled playback programs. The effect determines the needed power, scanner performance and control mode.
2. Choose the Correct Laser Power
Laser power is important, but higher wattage is not always better. The right choice depends on projection distance, ambient light, surface size, content type, number of units and budget.
Laser power | Suitable application
5W-10W | Small outdoor decoration, short-distance logo or animation projection
10W-20W | Medium outdoor projects, wall projection and cultural tourism scenes
20W-50W | Festivals, concerts and larger outdoor installations
50W+ | Landmark shows and long-distance projection projects
The goal is to select enough brightness while keeping cost and energy consumption reasonable. For example, a 20W unit may be too bright for a 30-meter wall projection, while a 10W waterproof animation laser may be more suitable when multiple units are installed across a long wall.
3. Korea Case Study: 350-Meter Cultural Tourism Wall Project
Project Background

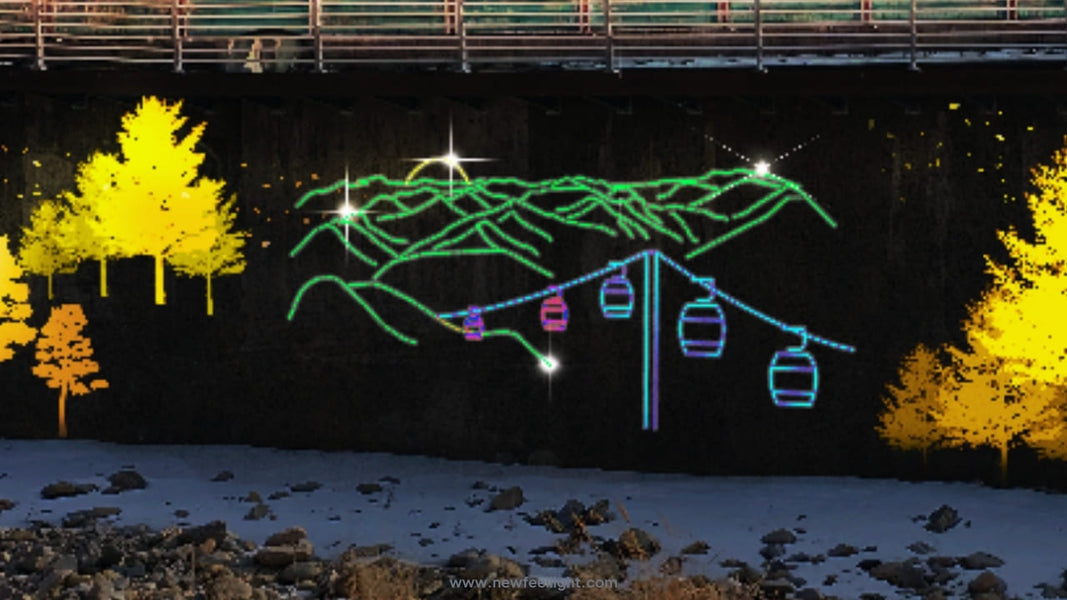

A Korean engineering company worked on an outdoor cultural tourism lighting project with a total wall length of about 350 meters. The design combined pattern lights, water ripple effects and laser animation. The customer needed custom graphic projection, long linear dynamic visuals, wall-mounted installation, DMX professional console control and offline SD card playback.
From Discontinued Model to Better Replacement
The customer first asked for the discontinued F3600 laser light model. NewFeel Light explained the model status clearly and then analyzed the real project needs: IP65 or higher waterproof protection, compact wall-mounted structure, DMX control, custom graphics and offline playback. Based on these requirements, the upgraded N5 series was recommended as a replacement.
Balancing FB4 Control and Budget
Option | Advantage | Best for
Original FB4 control | Higher stability and professional laser workflow | Complex laser shows and advanced installations
FB4-compatible control | Required functions with lower project cost | Budget-conscious engineering projects
After comparison, the customer selected the cost-effective configuration because it met the project requirement while controlling investment.
Power Optimization: 20W, 18W and 10W
The customer later asked whether 20W was excessive for a 30-meter projection distance. NewFeel Light evaluated the outdoor environment and recommended an 18W solution because its brightness was close to 20W while offering a better price. After sample testing, the customer found 18W still brighter than needed and requested a 5W-10W IP65 option. NewFeel Light then recommended a 10W outdoor waterproof animation laser and provided dimensions, weight and drawings for wall-mounted installation. The project finally reached a 28-unit batch purchase intention.
4. Why Sample Testing Matters Before Bulk Order
Sample testing helps contractors verify real brightness, projection quality, control compatibility, installation structure and custom content workflow before mass installation. In this project, testing also revealed practical issues such as no laser output during initial setup, safety key and interlock connection, BEYOND software file problems and authorization errors. NewFeel Light guided the customer remotely until the equipment, software and content workflow worked correctly.
5. Outdoor Laser Project Purchasing Checklist
Category | What to confirm
Project requirement | Application, projection distance, projection area and site photos
Technical requirement | Laser power, IP65/IP66 protection, DMX/ILDA/FB4 compatibility
Installation requirement | Dimensions, weight, mounting method, cable layout and drawings
Content requirement | Custom logo, animation, BEYOND files or SD card playback
Testing requirement | Sample test, brightness check, software test and control integration
6. What NewFeel Light Provides
NewFeel Light supports outdoor laser projectors, IP65/IP66 waterproof laser systems, DMX laser lights, ILDA laser projectors, FB4 laser show equipment and customized outdoor laser solutions. For project buyers, we can help evaluate laser power, control method, installation structure, custom content requirements and sample testing before bulk production.
Conclusion
A successful outdoor laser project requires the right solution, not simply the strongest laser. The best system should match the application, distance, environment, control workflow, installation structure and budget. The Korean 350-meter project shows how requirement analysis, sample testing and technical support can reduce purchasing risk and move a project from one test unit to batch purchase planning.
Request Your Outdoor Laser Project Evaluation
If you are planning a cultural tourism project, building facade projection or outdoor laser show, send NewFeel Light your project size, projection distance, installation method, required effects, control system and site photos. Our team can recommend a suitable outdoor laser projector solution before bulk order.
